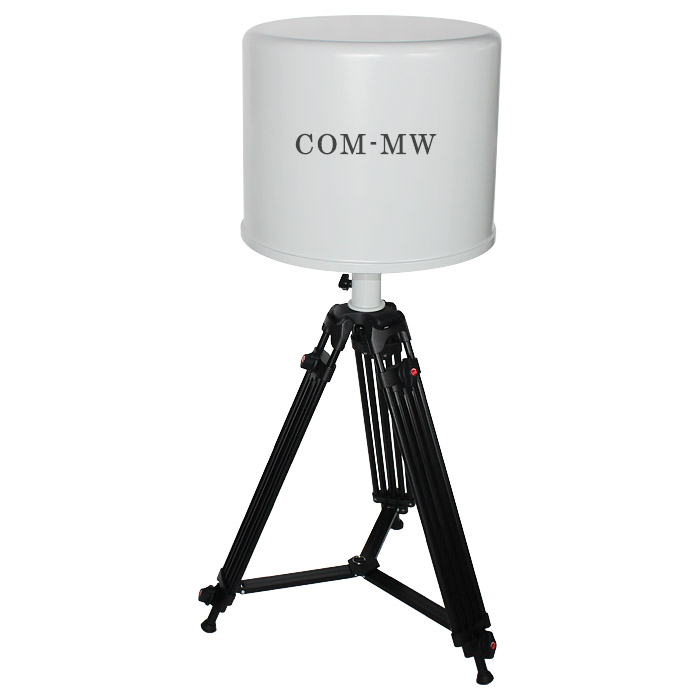

Broadband direction finding array antenna.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Working frequency 1 | 2 | ~ | 6 | GHz |
| Working frequency 2 | 6 | ~ | 18 | GHz |
| 监测工作频率 | 2 | ~ | 18 | GHz |
| Gain 1 | 5 | dBi | ||
| Gain 2 | 5 | dBi | ||
| 监测天线增益 | 0 | dBi | ||
| VSWR | 2.0 | |||
| Unit amplitude consistency | 1 | dB(RMS) | ||
| Unit phase consistency | 10 | °(RMS) | ||
| Switching gain | 17 | dB | ||
| Noise figure | 9 | dB | ||
| Isolation | 40 | dB | ||
| Switching time | 500 | ns |
| Polarization | Vertical polarization |
| Power Capacity | 0.5W Design assurance |
| Connector | SMA-K (4-channel direction finding output, 1-channel monitoring output, 1-channel calibration input) |
| Connector material | Housing 304 stainless steel |

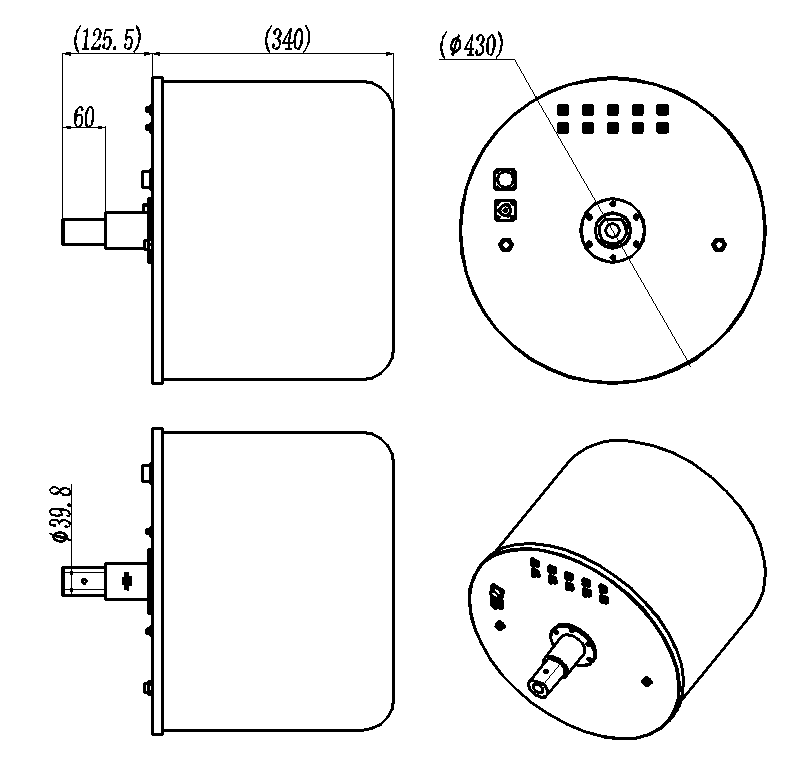

| Expand external dimensions | 430 * 430 * 465.5mm without bracket |
| Estimated weight | 15Kg |
| Surface | Grey |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -45~+75℃ Design assurance |
| Direction finding system | Amplitude comparison direction finding |
| Other | Control mode: RS422 control; Built in electronic compass |
