监测频率120~6000MHz, 测向1频率120~1500MHz, 测向2频率1000~6000MHz, Vertical polarization
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
宽带测向天线。
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| 120 | ~ | 6000 | MHz | |
| 测向1频率 | 120 | ~ | 1500 | MHz |
| 测向2频率 | 1000 | ~ | 6000 | MHz |

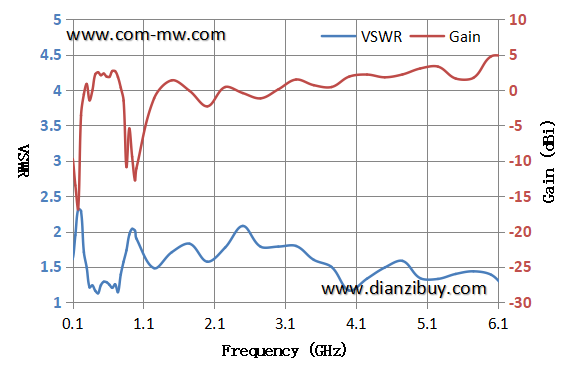

| -3 | dBi | |||

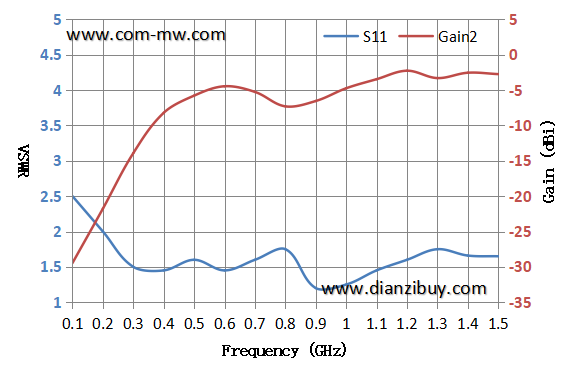

| 测向1增益 | -9 | dBi | ||

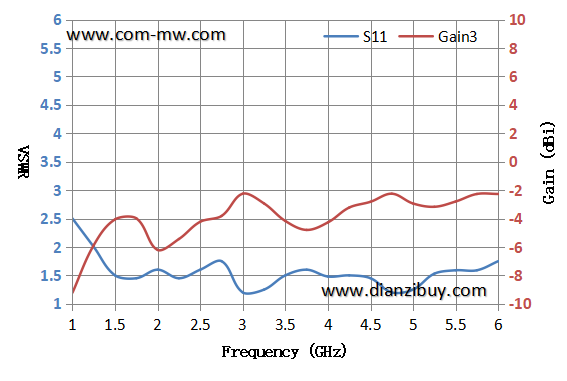

| 测向2增益 | -7 | dBi | ||
| VSWR | 3.0 |
| Polarization | Vertical polarization |
| Power Capacity | 1W Design assurance |
| Connector | SMA-J*19个 |

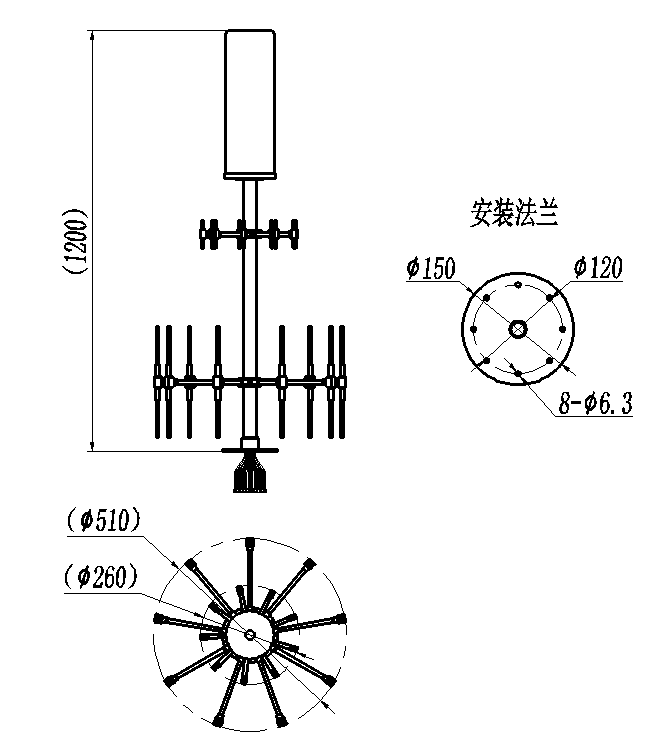

| Outline size | 510*510*1200mm不含电缆 |
| Estimated weight | 5Kg |
| Surface | 交通白RAL9016 |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -30~+60℃ Design assurance |
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
May contain electronic components, please do not dispose of them randomly.
