Working frequency 10.8~2GHz, Working frequency 22~18GHz, Gain 10dBi, Gain 20dBi, Right-handed circular polarization, SMA-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
宽频带，一致性高。
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Working frequency 1 | 0.8 | ~ | 2 | GHz |
| Working frequency 2 | 2 | ~ | 18 | GHz |
| Gain 1 | 0 | dBi | ||
| Gain 2 | 0 | dBi | ||
| VSWR | 2 | |||
| 3dB Beamwidth | 60*60 | ° |
| Polarization | Right-handed circular polarization |
| Power Capacity | 0.5W Design assurance |
| Connector | SMA-K |

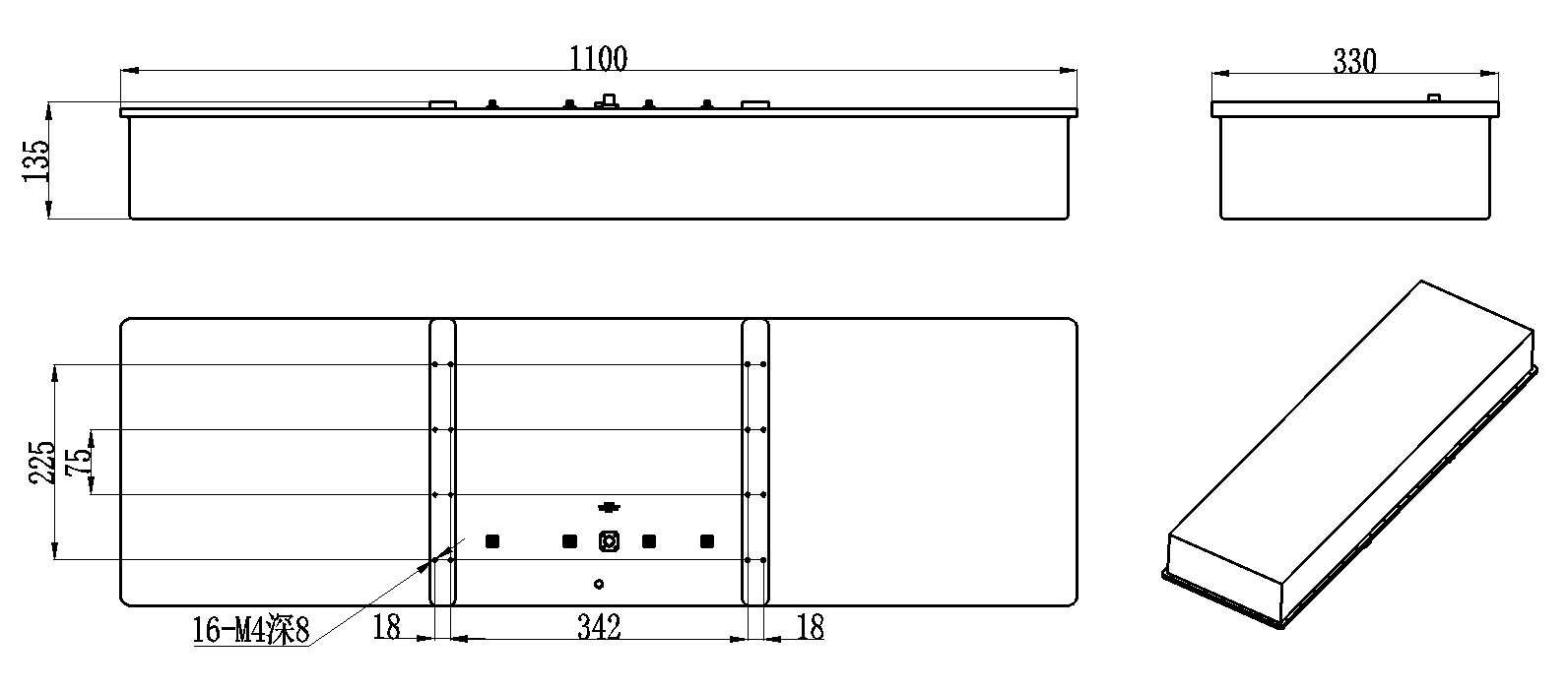

| Outline size | 1100*330*135mm |
| Estimated weight | 10Kg |
| Surface | RAL7035烤漆喷三防 |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -40~+75℃ Design assurance |
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
May contain electronic components, please do not dispose of them randomly.
