Passband frequency C1880~890MHz, Passband frequency C2925~935MHz, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband frequency C1 | / | / | 880 | ~ | 890 | MHz |
| Passband frequency C2 | / | / | 925 | ~ | 935 | MHz |
| Passband C1 IL | / | / | 2.0 | dB | ||
| Passband C2 IL | / | / | 2.0 | dB | ||
| Passband ripple | / | / | 1.0 | dB | ||
| Passband VSWR | / | / | 1.3 | |||
| Passband C1 Rejection | 870&900 | MHz≥ | 60 | dB | ||
| Passband C2 Rejection | 915&945 | MHz≥ | 60 | dB | ||
| Passband C1 Rejection | 925-1200 | MHz≥ | 60 | dB | ||
| Passband C2 Rejection | DC-890 | MHz≥ | 60 | dB |
| Connector | SMA-F or K |
| Impedance | 50Ω |
| Surface | Black baking paint |
| Power Capacity | 20W Design assurance |
| Operation Temp. | -10~+50℃ Design assurance |

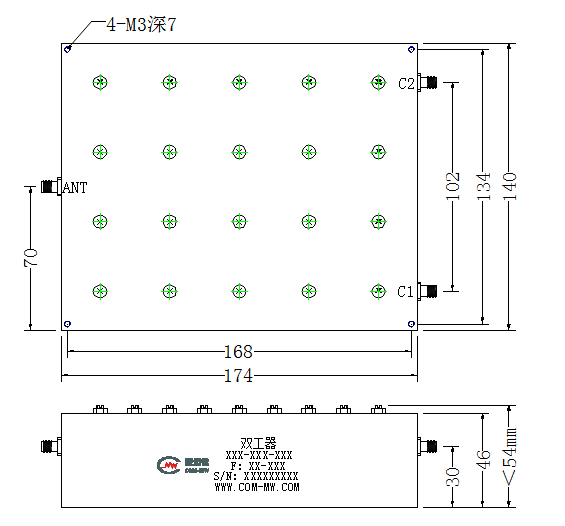

| 1 | Common port | ANT |
|---|---|---|
| 2 | Passband 1 | C1 |
| 3 | Passband 2 | C2 |
| 4 | GND Port | --- |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 1 | If the temperature is higher than 125℃, consult with us before ordering. |
