Passband frequency763~803MHz, Notch filter Passband F2DC~753MHz, Bandstop passband F813~2400MHz, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

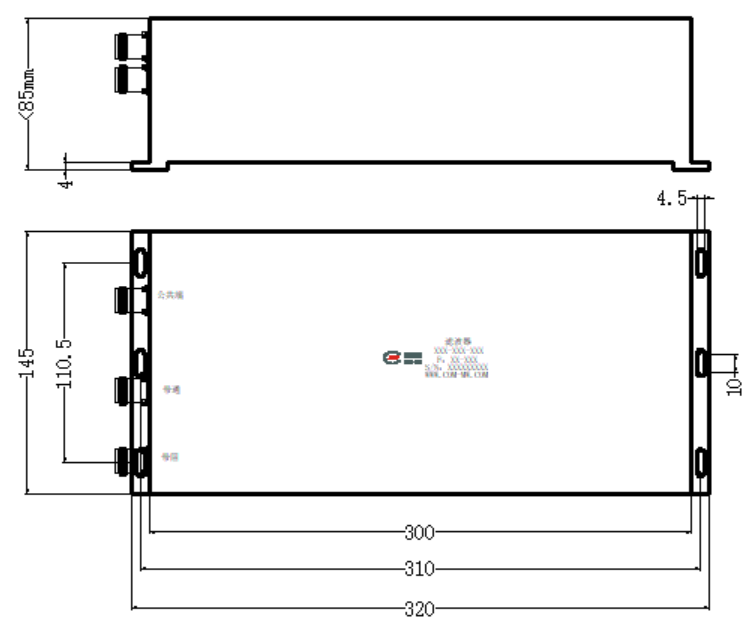

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband frequency | / | / | 763 | ~ | 803 | MHz |
| Notch filter Passband F2 | / | / | DC | ~ | 753 | MHz |
| Bandstop passband F | / | / | 813 | ~2400 | MHz | |
| Bandpass loss | / | / | 3 | dB | ||
| 带阻损耗 | / | / | 3 | dB | ||
| Passband 1 VSWR | / | / | 1.6 | |||
| Passband 2 VSWR | / | / | 1.8 | |||
| Rejection | DC-753 | MHz≥ | 60 | dB | ||
| Rejection | 813-2400 | MHz≥ | 60 | dB | ||
| Rejection | 763-803 | MHz≥ | 60 | dB |
| Connector | N -K |
| Connector material | Housing 304 stainless steel |
| Impedance | 50Ω |
| Surface | Black baking paint |
| Power Capacity | 100W Design assurance |
| 1 | Common port | --- |
|---|---|---|
| 2 | Passband 1 | --- |
| 3 | Passband 2 | --- |
| 4 | GND Port | --- |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 1 | If the temperature is higher than 125℃, consult with us before ordering. |
