Passband F11920~1980MHz, Passband F22110~2170MHz, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | 1920 | ~ | 1980 | MHz |
| Passband F2 | / | / | 2110 | ~ | 2170 | MHz |
| Passband IL | / | / | 1.5 | dB | ||
| Passband ripple | / | / | dB | |||
| Passband VSWR | / | / | 1.4 | |||
| Band 1 Rejection | 2110-2170 | MHz≥ | 90 | dB | ||
| band 2 Rejection | 1920-1980 | MHz≥ | 90 | dB |
| Connector | N -F |
| Impedance | 50Ω |
| Surface | Black baking paint |
| Power Capacity | 100W Design assurance |
| Operation Temp. | -10~+50℃ Design assurance |

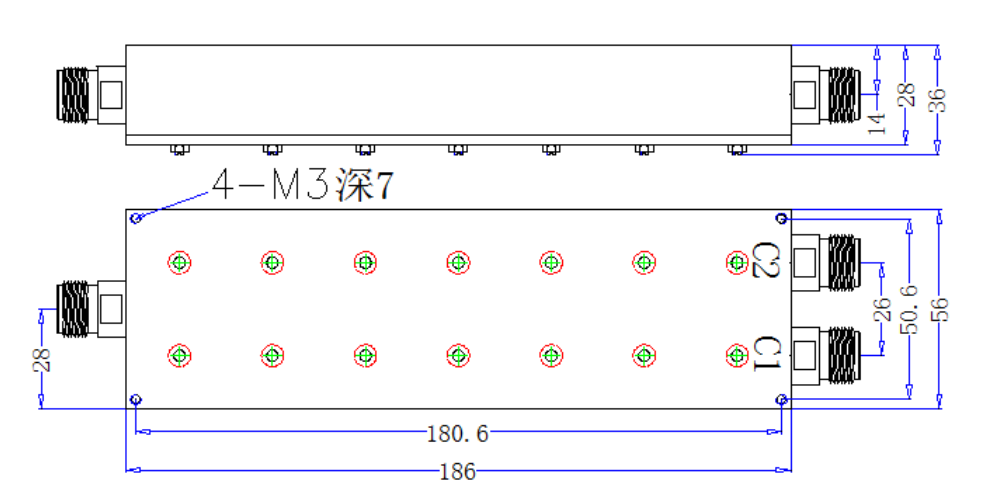

| 1 | Common port | --- |
|---|---|---|
| 2 | Passband 1 | --- |
| 3 | Passband 2 | --- |
| 4 | GND Port | --- |
| 1 | If the temperature is higher than 125℃, consult with us before ordering. |
