Passband frequency C11710~1785MHz, Passband frequency C21805~1880MHz, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband frequency C1 | / | / | 1710 | ~ | 1785 | MHz |
| Passband frequency C2 | / | / | 1805 | ~ | 1880 | MHz |
| Passband IL | / | / | 2.0 | dB | ||
| Passband ripple | / | / | 1.0 | dB | ||
| Passband VSWR | / | / | 1.3 | |||
| Passband C1 Rejection | 1690&1805 | MHz≥ | 60 | dB | ||
| Passband C2 Rejection | 1785&1900 | MHz≥ | 60 | dB | ||
| Passband C1 Rejection | 1805-2500 | MHz≥ | 60 | dB | ||
| Passband C2 Rejection | DC-1785 | MHz≥ | 60 | dB |
| Connector | SMA-F or K |
| Impedance | 50Ω |
| Surface | Black |
| Power Capacity | 20W Design assurance |

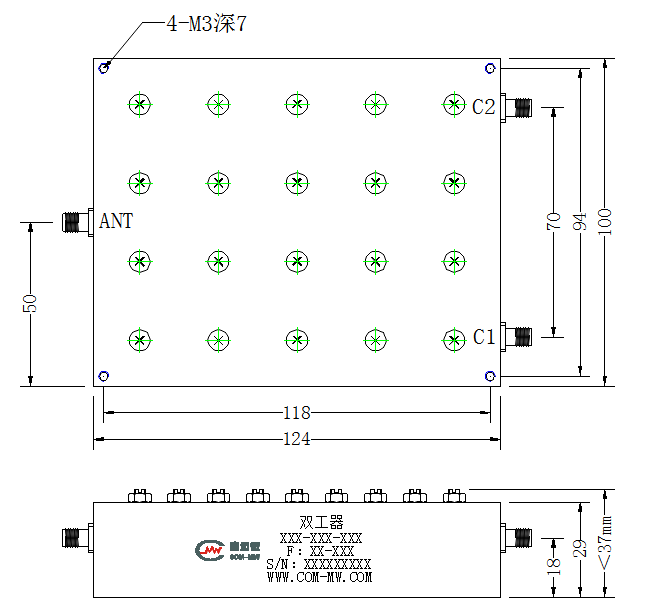

| 1 | Common port | ANT |
|---|---|---|
| 2 | Passband 1 | C1 |
| 3 | Passband 2 | C2 |
| 4 | GND Port | --- |
