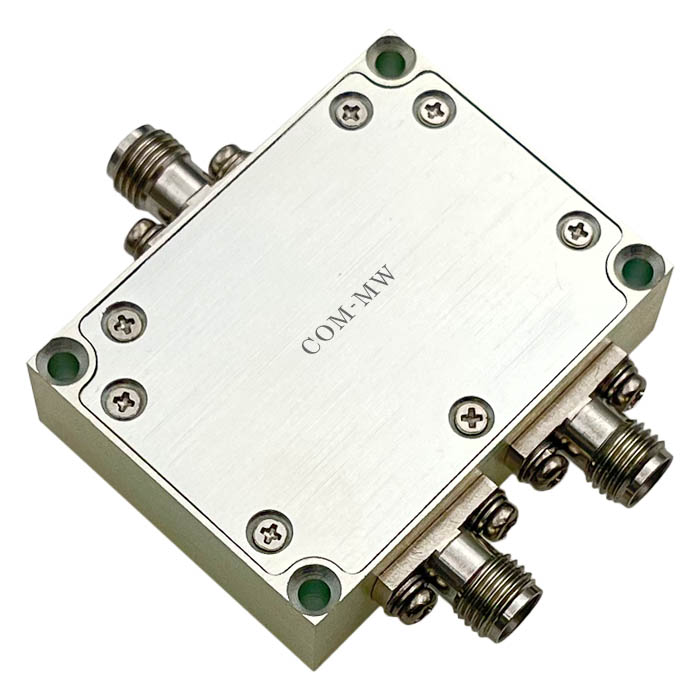

Passband F1600~1000MHz, Passband F21600~3000MHz, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | 600 | ~ | 1000 | MHz |
| Passband F2 | / | / | 1600 | ~ | 3000 | MHz |
| band 1 IL | / | / | 0.8 | dB | ||
| band 2 IL | / | / | 0.8 | dB | ||
| Passband VSWR | / | / | 1.5 | |||
| Band 1 Rejection | 1.8-3 | GHz≥ | 70 | dB | ||
| band 2 Rejection | DC-1000 | MHz≥ | 70 | dB |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 50W Design assurance |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |
| 1 | Common port | --- |
|---|---|---|
| 2 | Passband 1 | RX |
| 3 | Passband 2 | TX |
| 4 | GND Port | shell |

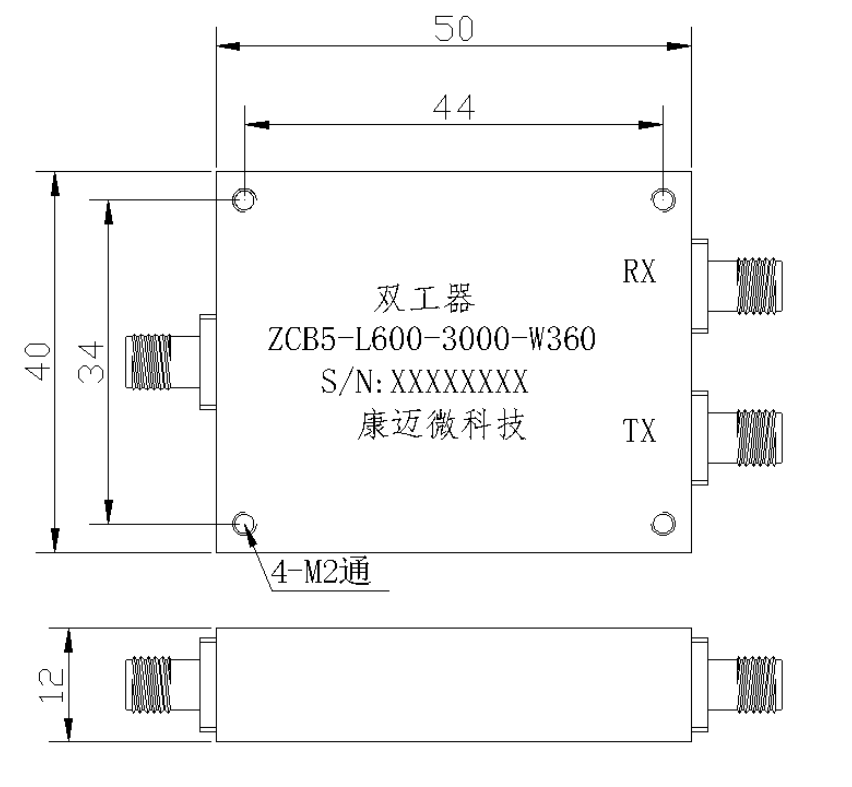

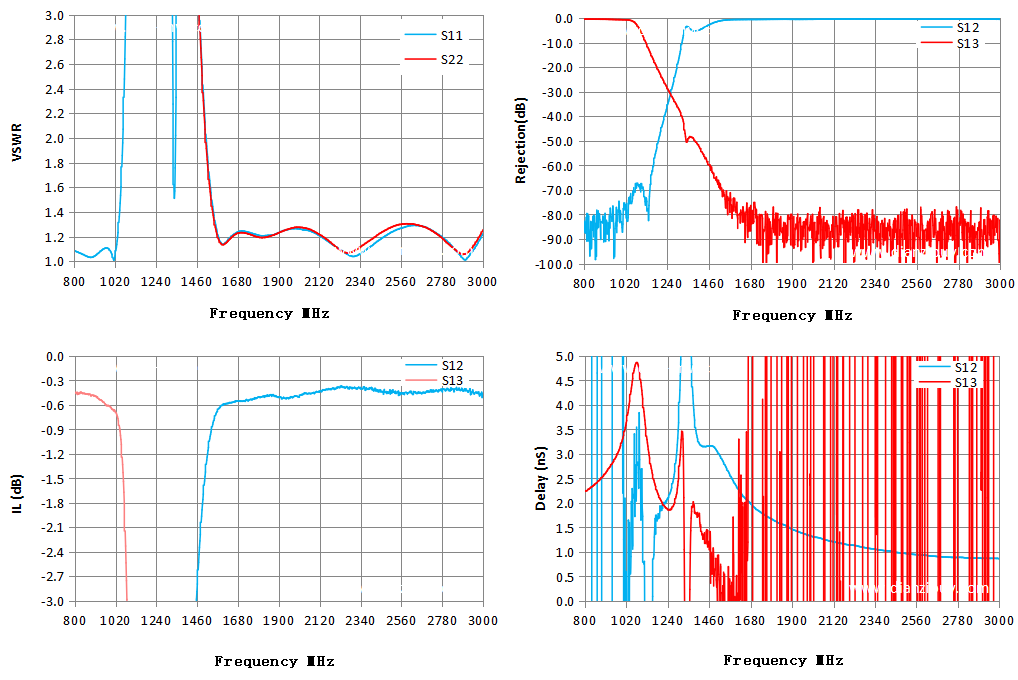

| Frequency MHz | S11 VSWR | S22 VSWR | S12 IL dB | S13 IL dB | S12 Rej. | S13 抑制 dB | S12 Delay nS | S13 Delay nS |
|---|---|---|---|---|---|---|---|---|
| 800.00 | 1.08 | 73.69 | -87.31 | -0.46 | -87.31 | -0.46 | 495.70 | 2.24 |
| 957.00 | 1.10 | 54.22 | -88.67 | -0.57 | -88.67 | -0.57 | 124.58 | 2.89 |
| 1114.00 | 9.02 | 33.39 | -69.90 | -7.65 | -69.90 | -7.65 | 0.76 | 3.86 |
| 1271.00 | 26.55 | 26.53 | -27.10 | -32.72 | -27.10 | -32.72 | 2.48 | 1.94 |
| 1429.00 | 5.24 | 5.19 | -4.14 | -55.24 | -4.14 | -55.24 | 3.15 | 1.28 |
| 1586.00 | 1.16 | 1.15 | -0.62 | -76.72 | -0.62 | -76.72 | 2.47 | -0.57 |
| 1743.00 | 1.23 | 1.22 | -0.54 | -81.70 | -0.54 | -81.70 | 1.78 | -13.68 |
| 1900.00 | 1.23 | 1.23 | -0.50 | -81.55 | -0.50 | -81.55 | 1.46 | 41.09 |
| 2057.00 | 1.25 | 1.26 | -0.46 | -81.97 | -0.46 | -81.97 | 1.27 | -53.83 |
| 2214.00 | 1.11 | 1.11 | -0.39 | -87.02 | -0.39 | -87.02 | 1.14 | 81.98 |
| 2371.00 | 1.09 | 1.15 | -0.39 | -85.88 | -0.39 | -85.88 | 1.04 | -44.96 |
| 2529.00 | 1.25 | 1.29 | -0.46 | -93.68 | -0.46 | -93.68 | 0.96 | 21.87 |
| 2686.00 | 1.28 | 1.28 | -0.45 | -87.02 | -0.45 | -87.02 | 0.90 | 22.14 |
| 2843.00 | 1.11 | 1.10 | -0.44 | -85.22 | -0.44 | -85.22 | 0.88 | 12.21 |
| 3000.00 | 1.21 | 1.24 | -0.49 | -82.36 | -0.49 | -82.36 | 0.86 | 109.12 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 1 | If the temperature is higher than 125℃, consult with us before ordering. |
