Passband F1 DC~500MHz, Passband F2 700~4000MHz, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
| Passband F1 | / | / | DC | ~ | 500 | MHz |
| Passband F2 | / | / | 700 | ~ | 4000 | MHz |
| Passband IL | / | / | 1.5 | dB | ||
| Passband VSWR | / | / | 1.5 | |||
| Band 1 Rejection | 700-4000 | MHz≥ | 70 | dB | ||
| band 2 Rejection | DC-500 | MHz≥ | 70 | dB |

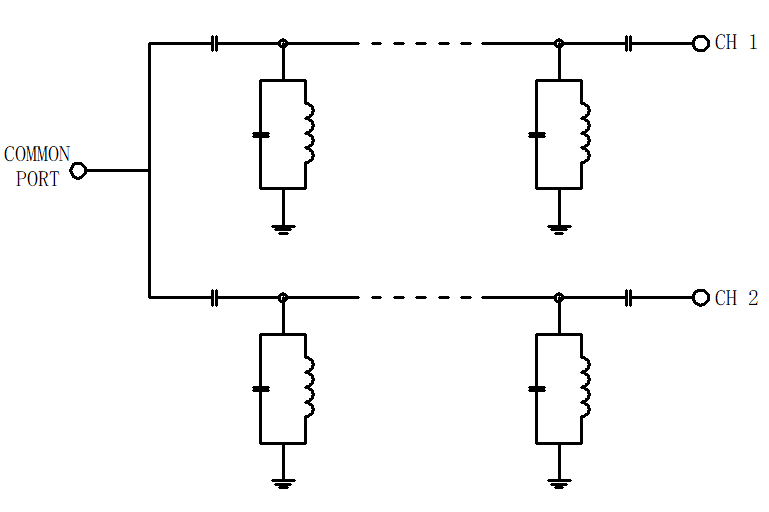

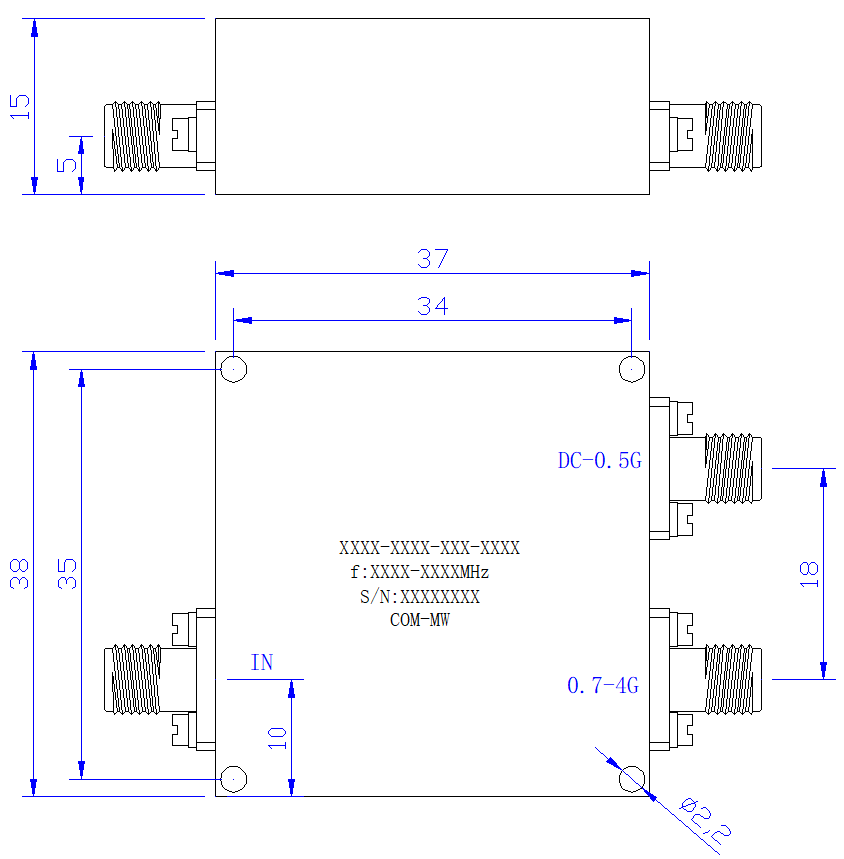

| Connector | SMA-F or K |
| Surface | silver-plate |
| Power Capacity | 30W Design assurance |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |

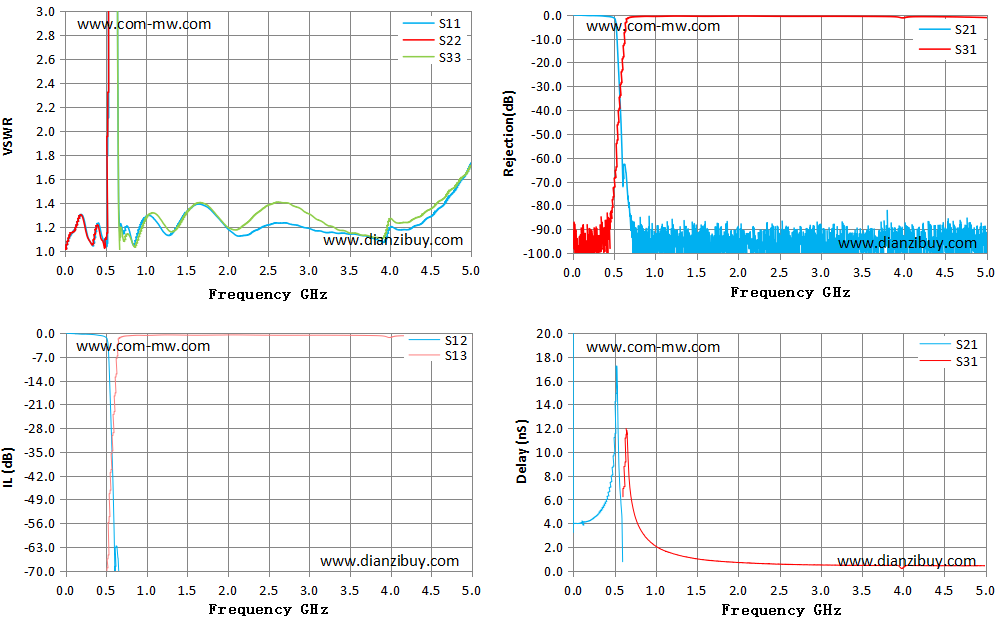

| Frequency GHz | S11 VSWR | S22 VSWR | S33 VSWR | S12 IL (dB) | S13 IL (dB) | S21 delay ns | S31 Delay ns |
| 0.01 | 1.03 | 1.03 | 359.14 | 0.03 | -87.37 | 29.18 | 0.00 |
| 0.36 | 1.08 | 1.11 | 93.79 | -0.49 | -88.38 | 5.33 | 0.00 |
| 0.72 | 1.14 | 68.77 | 1.08 | -92.47 | -0.93 | 0.00 | 5.46 |
| 1.07 | 1.28 | 52.23 | 1.32 | -91.05 | -0.66 | 0.00 | 1.83 |
| 1.43 | 1.26 | 46.78 | 1.24 | -94.63 | -0.60 | 0.00 | 1.10 |
| 1.79 | 1.34 | 44.16 | 1.36 | -114.30 | -0.61 | 0.00 | 0.81 |
| 2.14 | 1.12 | 46.49 | 1.18 | -95.00 | -0.56 | 0.00 | 0.65 |
| 2.50 | 1.22 | 45.98 | 1.38 | -95.77 | -0.64 | 0.00 | 0.56 |
| 2.86 | 1.21 | 43.05 | 1.36 | -92.56 | -0.65 | 0.00 | 0.49 |
| 3.22 | 1.15 | 34.69 | 1.22 | -99.78 | -0.65 | 0.00 | 0.48 |
| 3.57 | 1.14 | 17.16 | 1.15 | -91.41 | -0.69 | 0.00 | 0.46 |
| 3.93 | 1.08 | 7.71 | 1.12 | -94.51 | -0.96 | 0.00 | 0.47 |
| 4.29 | 1.20 | 6.92 | 1.27 | -99.77 | -0.79 | 0.00 | 0.44 |
| 4.64 | 1.37 | 18.70 | 1.43 | -93.36 | -0.90 | 0.00 | 0.44 |
| 5.00 | 1.73 | 35.70 | 1.72 | -91.39 | -1.19 | 0.00 | 0.37 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 1 | If the temperature is higher than 125℃, consult with us before ordering. |
