Passband F11350~1520MHz, Passband F21626~1785MHz, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

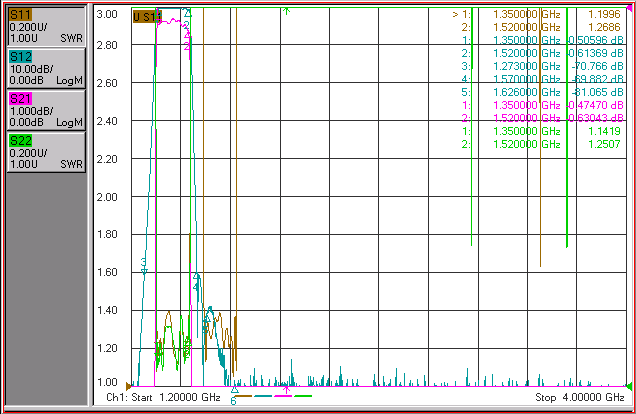

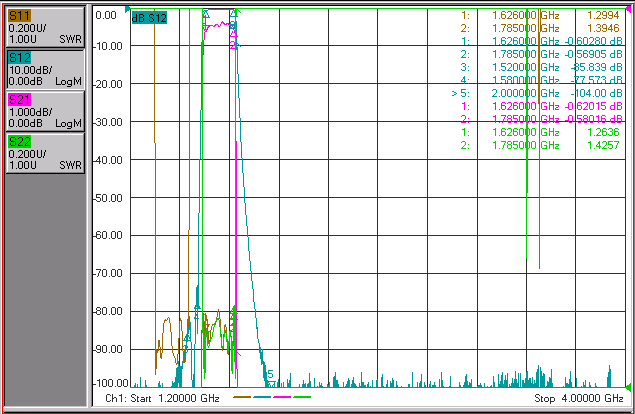

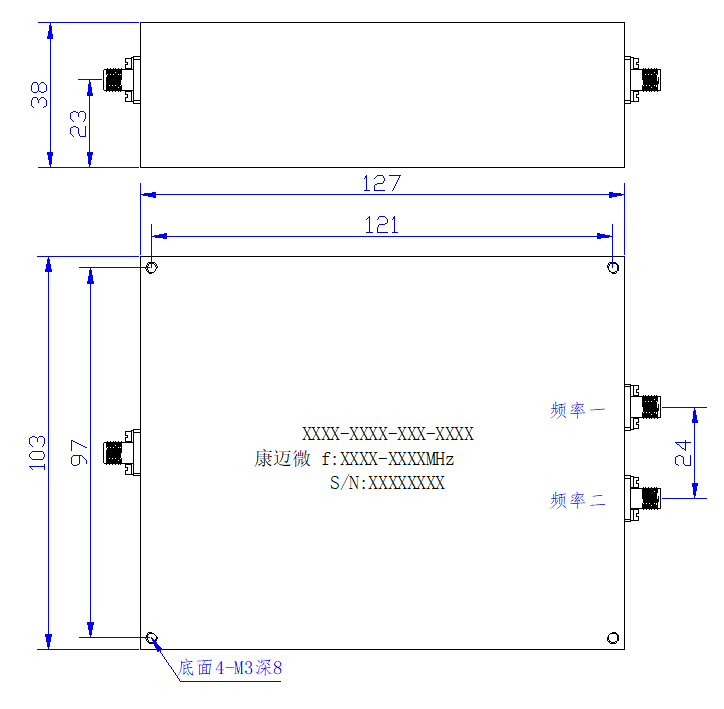

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | 1350 | ~ | 1520 | MHz |
| Passband F2 | / | / | 1626 | ~ | 1785 | MHz |
| Passband IL | / | / | 1.3 | dB | ||
| Passband VSWR | / | / | 1.5 | |||
| Group delay ripple | Any 25 within the band | MHz | 8 | ns | ||
| Band 1 Rejection | DC-1273 | MHz≥ | 68 | dB | ||
| Band 1 Rejection | 1570-1626 | MHz≥ | 66 | dB | ||
| Band 1 Rejection | 1626-1785 | MHz≥ | 73 | dB | ||
| Band 1 Rejection | 2500-3900 | MHz≥ | 50 | dB | ||
| band 2 Rejection | DC-1520 | MHz≥ | 75 | dB | ||
| band 2 Rejection | 1520-1580 | MHz≥ | 68 | dB | ||
| band 2 Rejection | 2000-3900 | MHz≥ | 50 | dB |
| Connector | SMA-K |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Power Capacity | 50W Design assurance |
| Stopband power | 200W duty cycle 10%, design guarantee |
| Product shell material | Aluminum 5A06 |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Gas tightness, laser sealing |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 1 | If the temperature is higher than 125℃, consult with us before ordering. |
