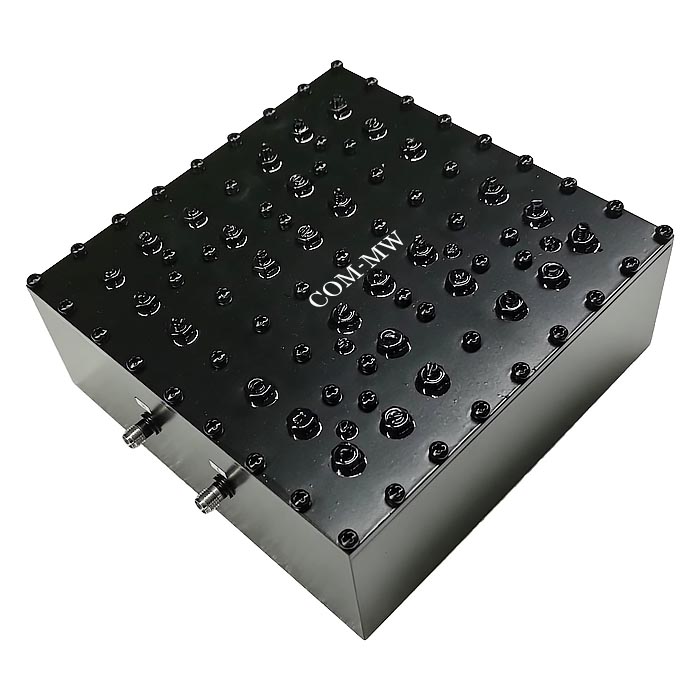

Passband L703~748MHz, Passband H758~803MHz, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|

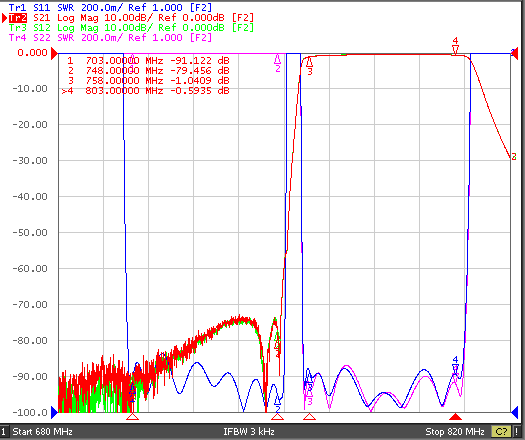

| Passband L | / | / | 703 | ~ | 748 | MHz |

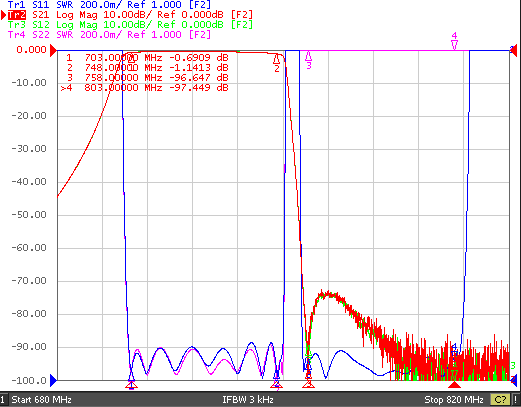

| Passband H | / | / | 758 | ~ | 803 | MHz |
| band 1 IL | / | / | 1.6 | dB | ||
| band 2 IL | / | / | 1.6 | dB | ||
| Passband ISO | / | / | 70 | dB | ||
| Passband VSWR | / | / | 1.4 |
| Connector | SMA-K |
| Impedance | 50Ω |
| Surface | Black baking paint |
| Power Capacity | 20W Design assurance |
| Operation Temp. | -20~+50℃ Design assurance |

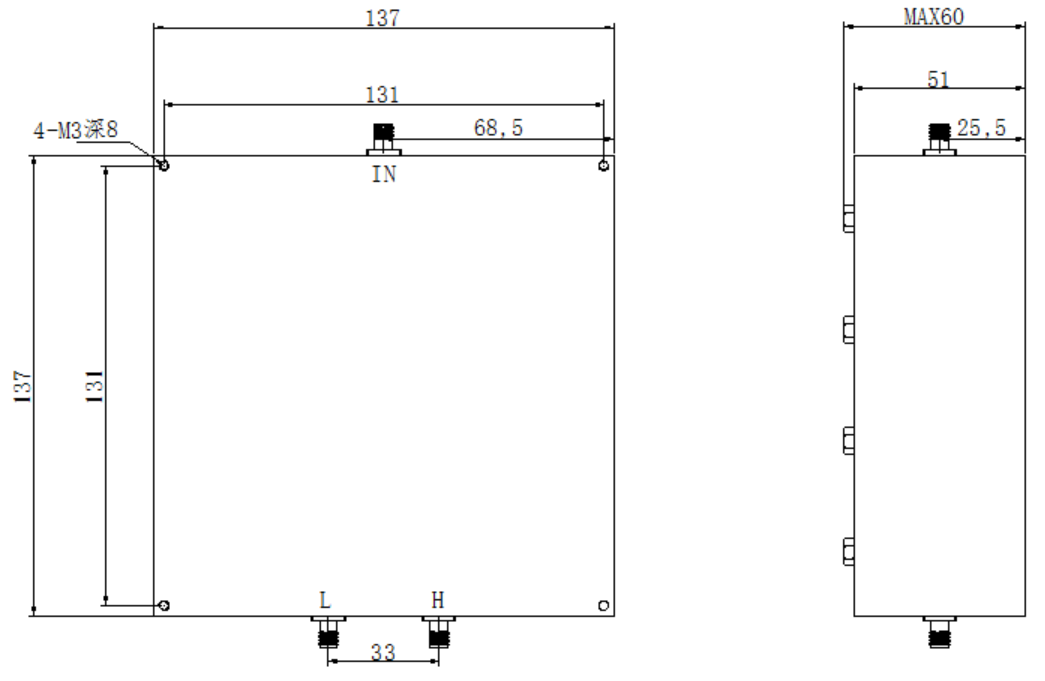

| 1 | Common port | --- |
|---|---|---|
| 2 | Passband 1 | --- |
| 3 | Passband 2 | --- |
| 4 | GND Port | --- |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 1 | If the temperature is higher than 125℃, consult with us before ordering. |
