Passband frequency TX663~698MHz, Passband frequency RX617~652MHz, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband frequency TX | / | / | 663 | ~ | 698 | MHz |
| Passband frequency RX | / | / | 617 | ~ | 652 | MHz |
| band 1 IL | / | / | 2.2 | dB | ||
| band 2 IL | / | / | 2.2 | dB | ||
| Passband VSWR | / | / | 1.6 | |||
| Passband TX Rej. | 658&703 | MHz≥ | 80 | dB | ||
| Passband TX Rej. | 617-652 | MHz≥ | 70 | dB | ||
| Passband RX Rej. | 612&657 | MHz≥ | 80 | dB | ||
| Passband RX Rej. | 663-698 | MHz≥ | 70 | dB |
| Connector | SMA-F or K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Black baking paint |
| Power Capacity | 10W Design assurance |
| Operation Temp. | 0~+40℃ Design assurance |
| Quality Grade | Industrial grade |

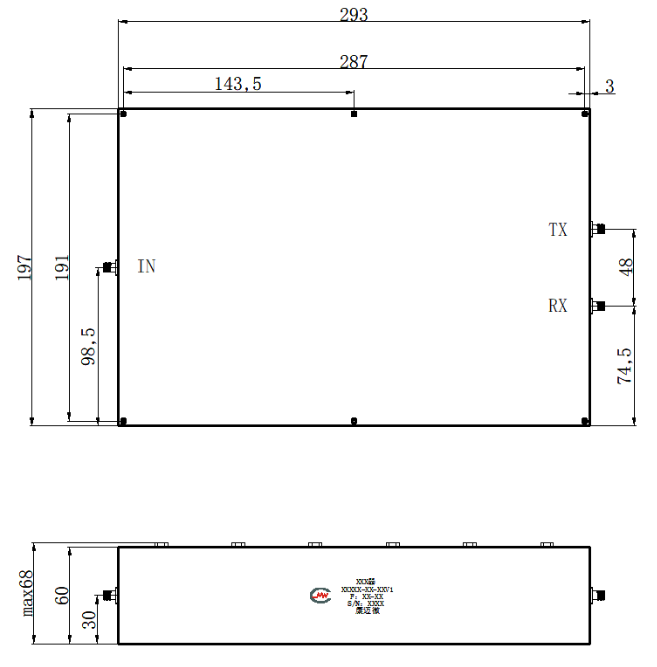

| 1 | Common port | --- |
|---|---|---|
| 2 | Passband 1 | --- |
| 3 | Passband 2 | --- |
| 4 | GND Port | --- |

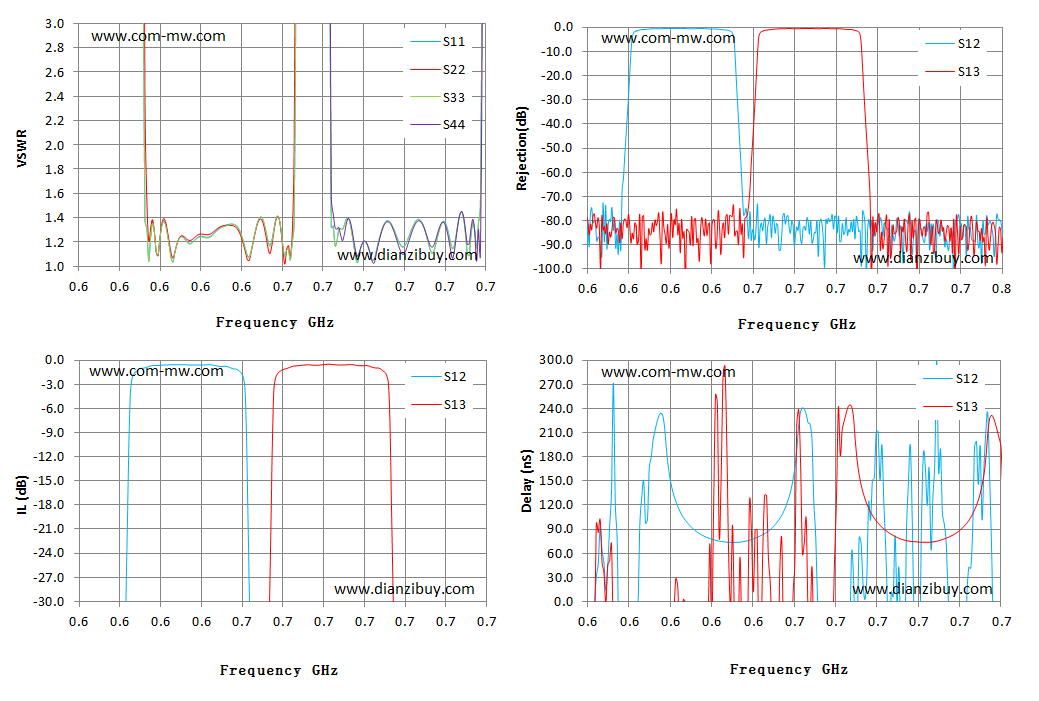

| Frequency GHz | S11 VSWR | S22 VSWR | S33 VSWR | S44 VSWR | S12 IL (dB) | S13 IL (dB) | S12 Rejection | S13 Rej. dB | S12 Delay (ns) | S13 delay ns |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.60 | 381.95 | 256.08 | 395.01 | 351.71 | -92.09 | -78.53 | -92.09 | -78.53 | -127.06 | 25.51 |
| 0.61 | 134.15 | 148.89 | 134.65 | 370.99 | -79.72 | -78.97 | -79.72 | -78.97 | -13.12 | -427.43 |
| 0.61 | 134.15 | 148.89 | 134.65 | 370.99 | -79.72 | -78.97 | -79.72 | -78.97 | -13.12 | -427.43 |
| 0.62 | 1.23 | 1.24 | 1.23 | 366.22 | -1.00 | -78.47 | -1.00 | -78.47 | 152.43 | -60.81 |
| 0.63 | 1.25 | 1.27 | 1.25 | 357.02 | -0.58 | -91.47 | -0.58 | -91.47 | 78.37 | 71.97 |
| 0.64 | 1.29 | 1.27 | 1.30 | 379.70 | -0.59 | -89.06 | -0.59 | -89.06 | 77.10 | 87.71 |
| 0.64 | 1.29 | 1.27 | 1.30 | 379.70 | -0.59 | -89.06 | -0.59 | -89.06 | 77.10 | 87.71 |
| 0.65 | 1.31 | 1.30 | 1.31 | 275.59 | -1.09 | -87.06 | -1.09 | -87.06 | 151.25 | 5.76 |
| 0.66 | 26.51 | 127.55 | 26.51 | 47.04 | -83.75 | -48.28 | -83.75 | -48.28 | -131.43 | 54.94 |
| 0.66 | 26.51 | 127.55 | 26.51 | 47.04 | -83.75 | -48.28 | -83.75 | -48.28 | -131.43 | 54.94 |
| 0.67 | 1.20 | 238.90 | 1.20 | 1.20 | -92.27 | -0.69 | -92.27 | -0.69 | 210.73 | 100.48 |
| 0.68 | 1.17 | 312.76 | 1.16 | 1.10 | -80.44 | -0.51 | -80.44 | -0.51 | -68.67 | 74.14 |
| 0.69 | 1.37 | 308.64 | 1.37 | 1.35 | -78.54 | -0.69 | -78.54 | -0.69 | -87.95 | 88.20 |
| 0.69 | 1.37 | 308.64 | 1.37 | 1.35 | -78.54 | -0.69 | -78.54 | -0.69 | -87.95 | 88.20 |
| 0.70 | 13.42 | 328.15 | 13.40 | 10.62 | -75.87 | -17.04 | -75.87 | -17.04 | -188.39 | 203.00 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 1 | If the temperature is higher than 125℃, consult with us before ordering. |
