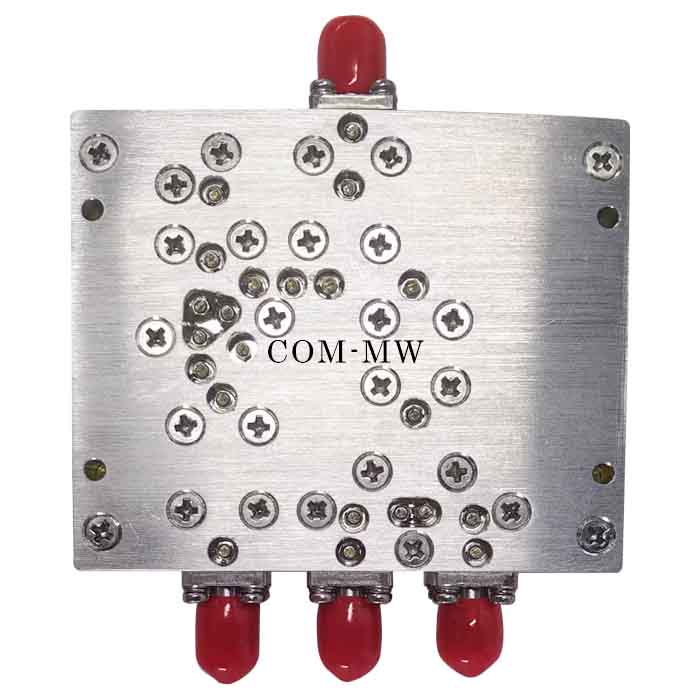

Passband F11~5GHz, Passband F217~22GHz, Passband F317~22GHz, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | 1 | ~ | 5 | GHz |
| Passband F2 | / | / | 17 | ~ | 22 | GHz |
| Passband F3 | / | / | 17 | ~ | 22 | GHz |
| band 1 IL | / | / | 0.8 | dB | ||
| band 2 IL | / | / | 4.3 | dB | ||
| Passband IL 3 | / | / | 4.3 | dB | ||
| Public port VSWR | / | / | 1.5 | |||
| Split port VSWR | / | / | 2 | |||
| Band 1 Rejection | 17-22 | GHz≥ | 70 | dB | ||
| band 2 Rejection | 1-5 | GHz≥ | 70 | dB | ||
| band 3 Rejection | 1-5 | GHz≥ | 70 | dB | ||
| Isolation degree of ports 2 and 3 | 15 | dB |
| Connector | 2.92-F |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Power Capacity | 10W Design assurance |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |

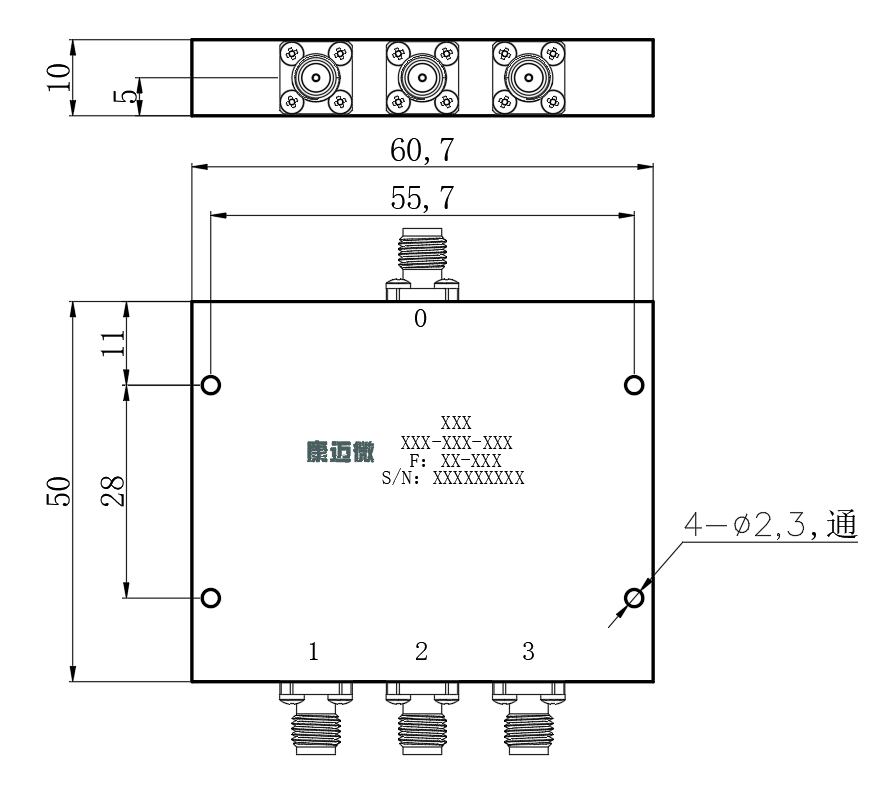

| 1 | Common port | 0 |
|---|---|---|
| 2 | Passband 1 | 1 |
| 3 | Passband 2 | 2 |
| 4 | Passband 3 | 3 |
| 1 | If the temperature is higher than 125℃, consult with us before ordering. |
