通带频率1-3225~400MHz, F 1-2108~174MHz, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| 通带频率1-3 | / | / | 225 | ~ | 400 | MHz |
| F 1-2 | / | / | 108 | ~ | 174 | MHz |
| band 1 IL | / | / | 1.6 | dB | ||
| band 2 IL | / | / | 1.6 | dB | ||
| Passband ripple | / | / | 1 | dB | ||
| Passband VSWR | / | / | 1.6 | |||
| Band 1 Rejection | DC-170 | MHz≥ | 60 | dB | ||
| Band 1 Rejection | 480-800 | MHz≥ | 60 | dB | ||
| band 2 Rejection | DC-75 | MHz≥ | 60 | dB | ||
| band 2 Rejection | 210-500 | MHz≥ | 60 | dB |
| Connector | N -F or K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | 灰色喷三防(海军灰 ) |
| Power Capacity | 50W Design assurance |
| Product shell material | Aluminium |
| Delay ripple | ≤30ns |
| Operation Temp. | -55~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Amplitude Balance | ≤0.5dB |
| Phase balance | ≤5° |

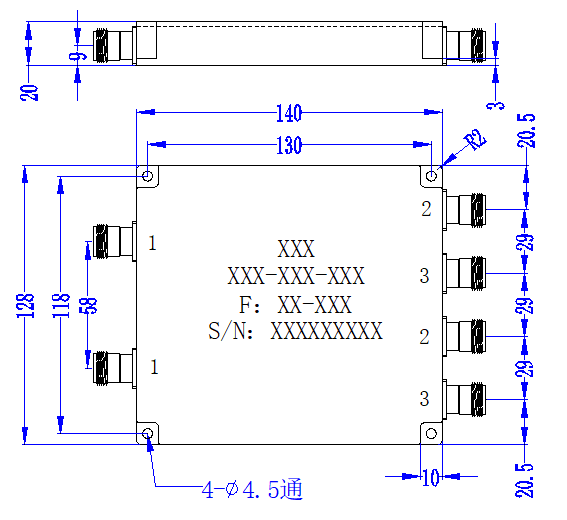

| 1 | Common port | 1 |
|---|---|---|
| 2 | Passband 1 | 3 |
| 3 | Passband 2 | 2 |
| 4 | GND Port | --- |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
