1518~1525MHz, 1668~1675MHz, ~MHz, ~MHz, ~MHz, MCX
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units | ||
|---|---|---|---|---|---|---|
| Pass band RF1 | 1518 | ~ | 1525 | MHz | ||
| Pass band RF2 | 1668 | ~ | 1675 | MHz | ||
| Passband VSWR | 1.40 | :1 | ||||
| Passband IL | 0.8 | dB | ||||
| RF1 Rej. | DC-1470 | MHz≥ | 45 | dBc | ||
| RF1 Rej. | 1559-1660 | MHz≥ | 12 | dBc | ||
| RF1 Rej. | 1660-3330 | MHz≥ | 60 | dBc | ||
| RF1 Rej. | 3330-6000 | MHz≥ | 10 | dBc | ||
| RF2 Rej. | DC-1530 | MHz≥ | 55 | dBc | ||
| RF2 Rej. | 1530-1550 | MHz≥ | 50 | dBc | ||
| RF2 Rej. | 1565-1630 | MHz≥ | 18 | dBc | ||
| RF2 Rej. | 1712-3330 | MHz≥ | 18 | dBc | ||
| RF2 Rej. | 3330-5030 | MHz≥ | 50 | dBc | ||
| RF2 Rej. | 5030-6000 | MHz≥ | 10 | dBc | ||
| Passband ISO | 1518-1525&1668-1675 | MHz≥ | 65 | dB |

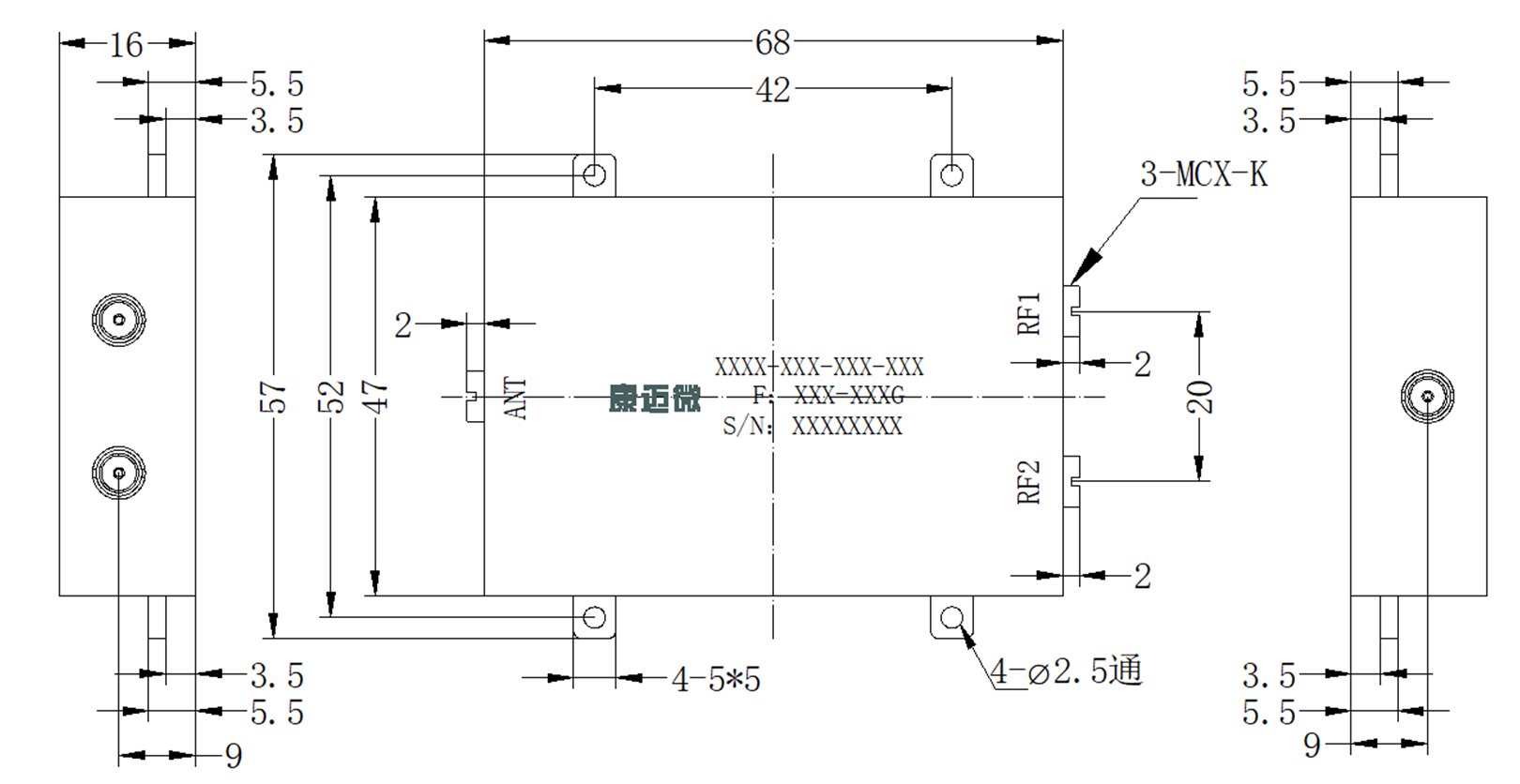

| Connector | MCX-K |
| Connector material | Shell copper plated with gold |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Power Capacity | 15W |
| Shell Material | Aluminium |
| Ripple | 0.6-0.8dB |
| Operation Temp. | -40~+80℃ |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
