Passband F11920~1980MHz, Passband F22110~2170MHz, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | 1920 | ~ | 1980 | MHz |
| Passband F2 | / | / | 2110 | ~ | 2170 | MHz |
| band 1 IL | / | / | 0.6 | dB | ||
| band 2 IL | / | / | 0.6 | dB | ||
| Passband ripple | / | / | 0.5 | dB | ||
| Passband VSWR | / | / | 1.3 | |||
| Band 1 Rejection | 2110~2170 | MHz≥ | 100 | dB | ||
| band 2 Rejection | 1920~1980 | MHz≥ | 100 | dB |
| Connector | SMA高互调连接器 |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 20W Design assurance |
| IM3 | -153dBc@2x43dBm Design assurance |
| Operation Temp. | -30~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Other | RX_TX ISO≥-100db |

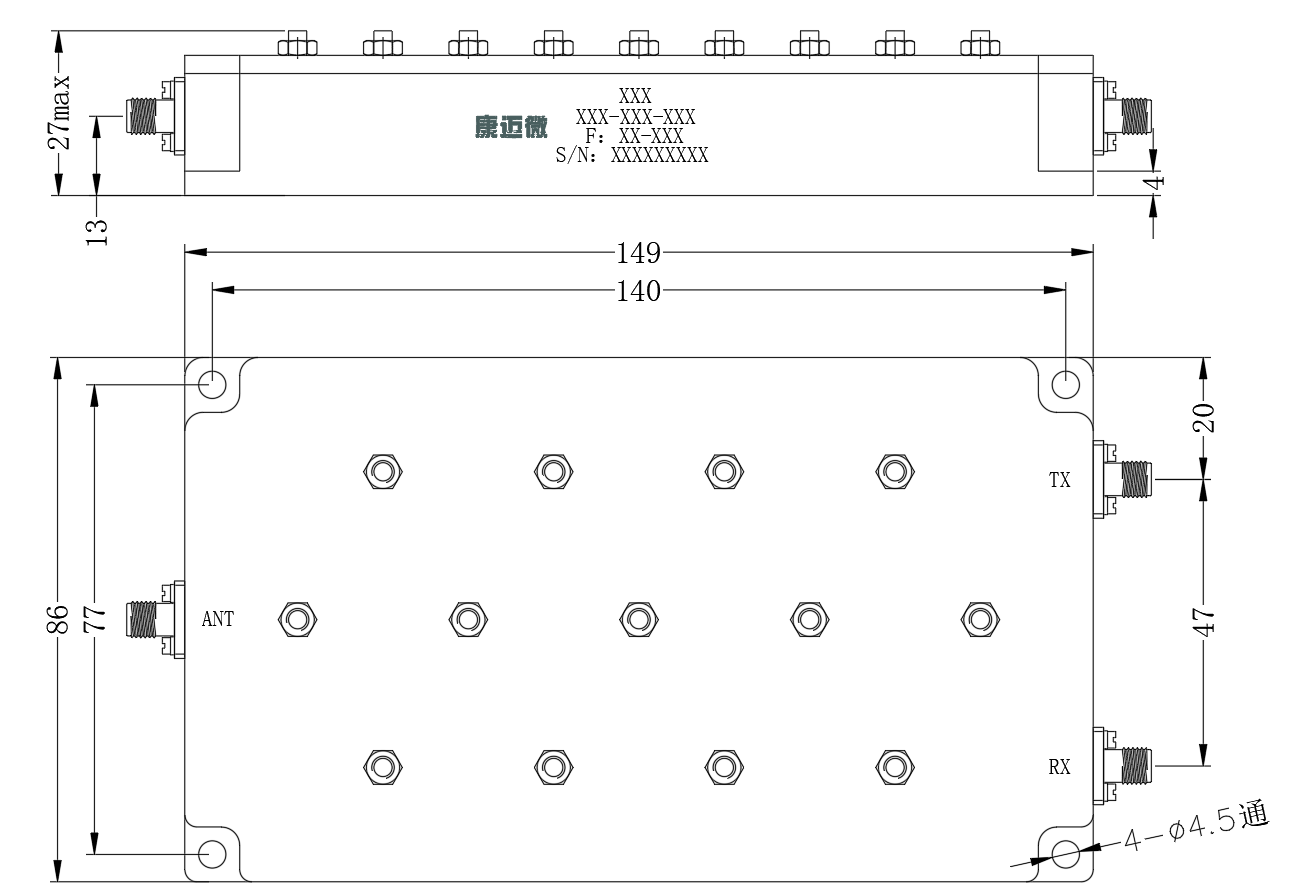

| 1 | Common port | ANT |
|---|---|---|
| 2 | Passband 1 | TX |
| 3 | Passband 2 | RX |
| 4 | GND Port | --- |
| 1 | If the temperature is higher than 125℃, consult with us before ordering. |
