Passband F15200~6000MHz, Passband F28500~10500MHz, 8500~10500MHz≥60dB, 5200~6000MHz≥60dB,
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | 5200 | ~ | 6000 | MHz |
| Passband F2 | / | / | 8500 | ~ | 10500 | MHz |
| band 1 IL | / | / | 0.5 | dB | ||
| band 2 IL | / | / | 0.5 | dB | ||
| Passband ripple | / | / | 0.3 | dB | ||
| Passband VSWR | / | / | 1.8 | |||
| Band 1 Rejection | 8500~10500 | MHz≥ | 60 | dB | ||
| band 2 Rejection | 5200~6000 | MHz≥ | 60 | dB |

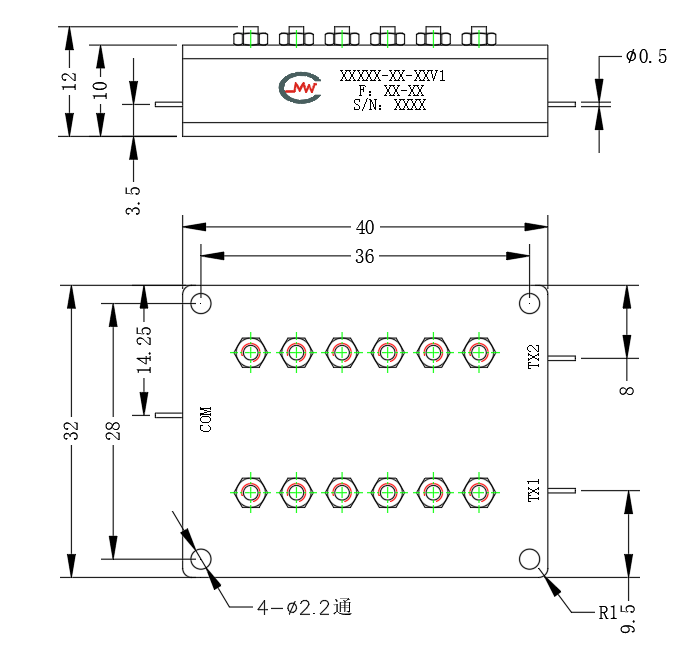

| Connector | 0.5mm |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 30W Design assurance |
| 相对一致性 | ±2.5° |
| Operation Temp. | -30~+70℃ Design assurance |
| Storage Temp. | -40~+80℃ Design assurance |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
