Passband F16000~6600MHz, Passband F26950~7350MHz, SMA, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

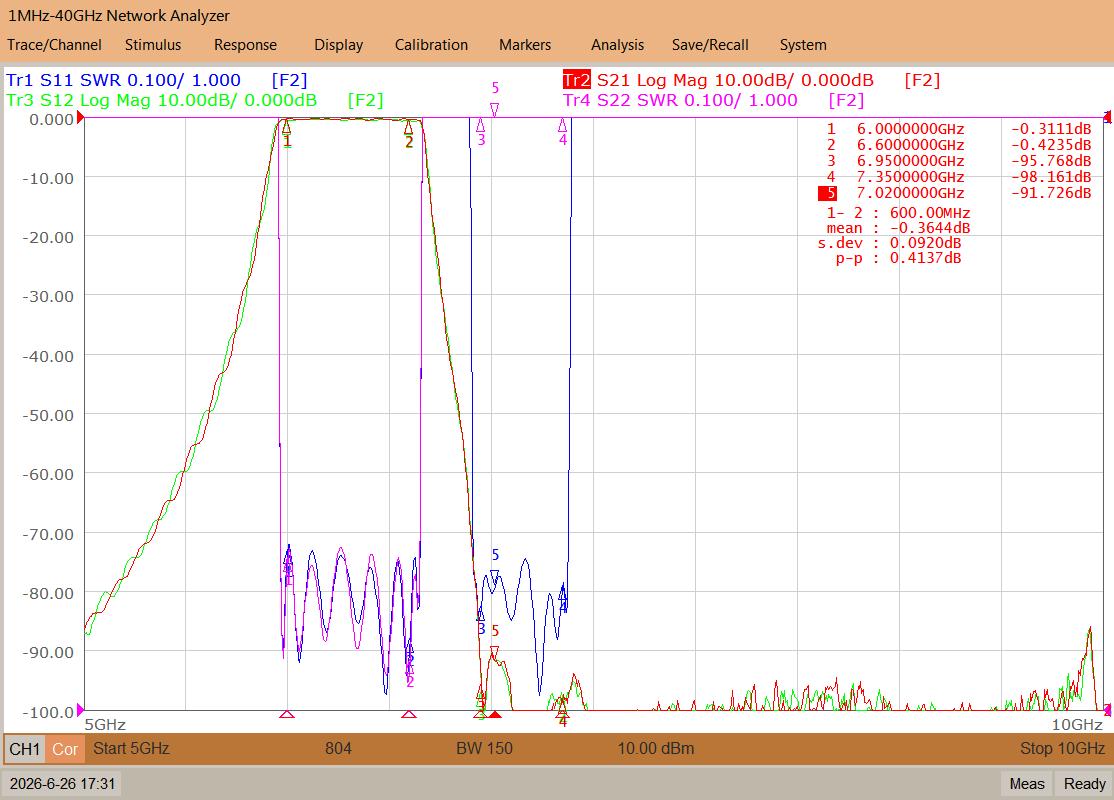

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | 6000 | ~ | 6600 | MHz |
| Passband F2 | / | / | 6950 | ~ | 7350 | MHz |
| band 1 IL | / | / | 0.8 | dB | ||
| band 2 IL | / | / | 0.8 | dB | ||
| Passband ripple | / | / | 0.5 | dB | ||
| Band 1 Rejection | 6.95-7.35 | GHz≥ | 90 | dBc | ||
| band 2 Rejection | 6-6.6 | GHz≥ | 90 | dBc | ||
| Passband VSWR | / | / | 1.30 |
| Connector | SMA-F or K可拆0.8mm针@ANT |
| Connector | SMA-M or J可拆0.8mm针@RF1,RF2 |
| Surface | Conductive oxidation |
| Power Capacity | 100W Design assurance |
| Group delay characteristics | |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Other | / |

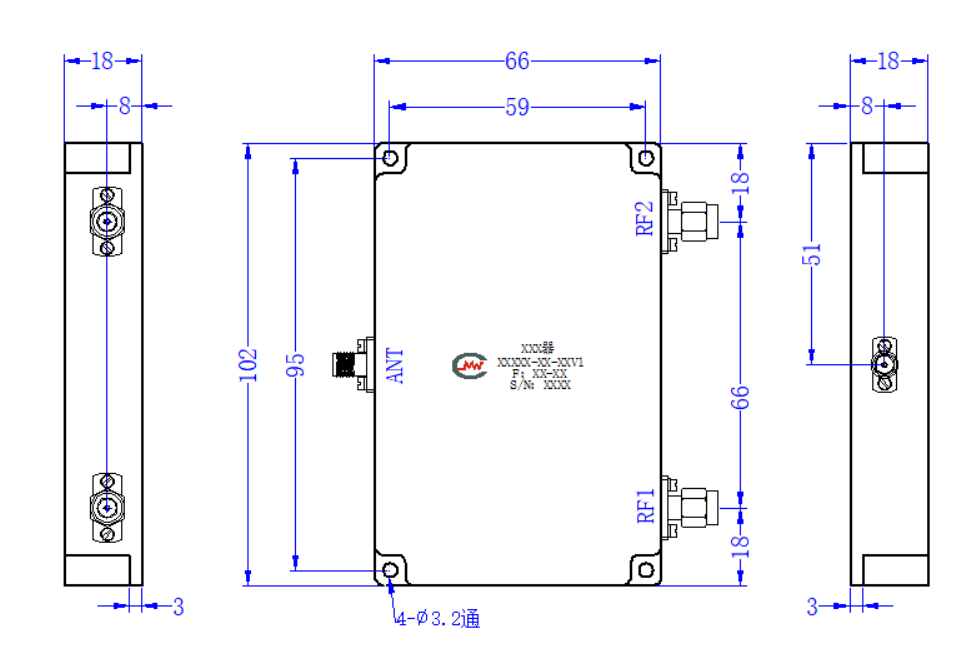

| 1 | Common port | ANT |
|---|---|---|
| 2 | Passband 1 | RF1 |
| 3 | Passband 2 | RF2 |
| 1 | Short term soaking and cleaning, please dry in a timely manner. |
| 1 | If the temperature is higher than 125℃, consult with us before ordering. |
