Passband F12025~2075MHz, Passband F22200~2400MHz, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

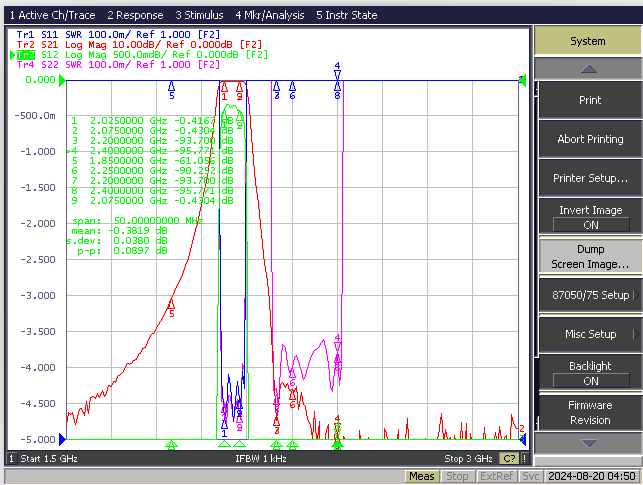

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | 2025 | ~ | 2075 | MHz |
| Passband F2 | / | / | 2200 | ~ | 2400 | MHz |
| band 1 IL | / | / | 0.6 | dB | ||
| band 2 IL | / | / | 0.6 | dB | ||
| Passband ripple | / | / | 0.3 | dB | ||
| Band 1 Rejection | 1.85&2.25 | GHz≥ | 60 | dBc | ||
| Band 1 Rejection | 2.2-2.4 | GHz≥ | 75 | dBc | ||
| band 2 Rejection | DC-2075 | MHz≥ | 75 | dBc | ||
| 2nd and 3rd harmonic | 60 | dBc | ||||
| Channel isolation | 75 | dBc | ||||
| Passband VSWR | / | / | 1.40 |
| Connector | SMA-K detachable, Pin 0.5mm |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Power Capacity | 80W Design assurance |
| Operation Temp. | -40~+75℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Other | Perform airtight sealing welding |

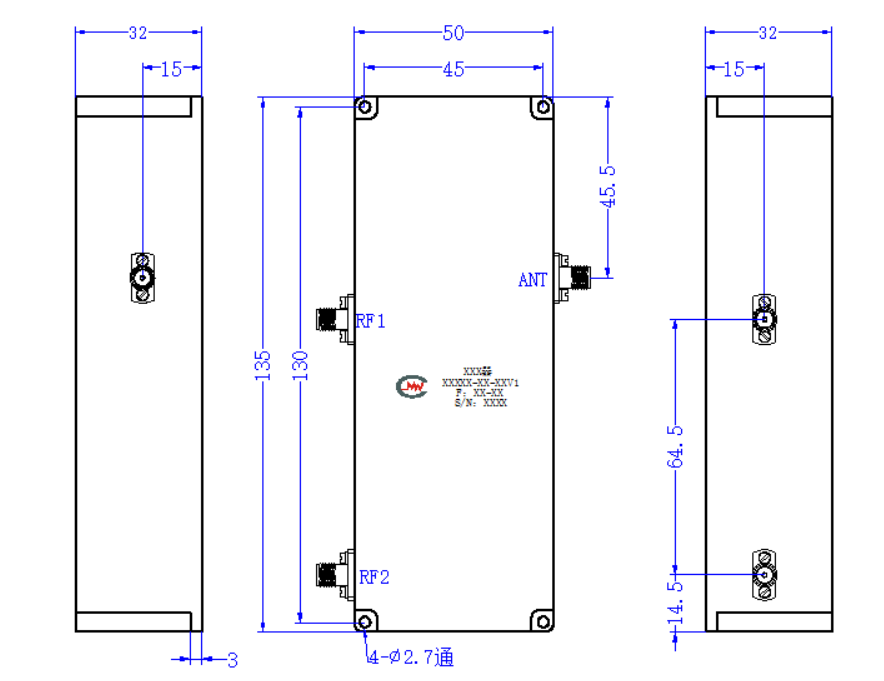

| 1 | Common port | ANT |
|---|---|---|
| 2 | Passband 1 | RF1 |
| 3 | Passband 2 | RF2 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
