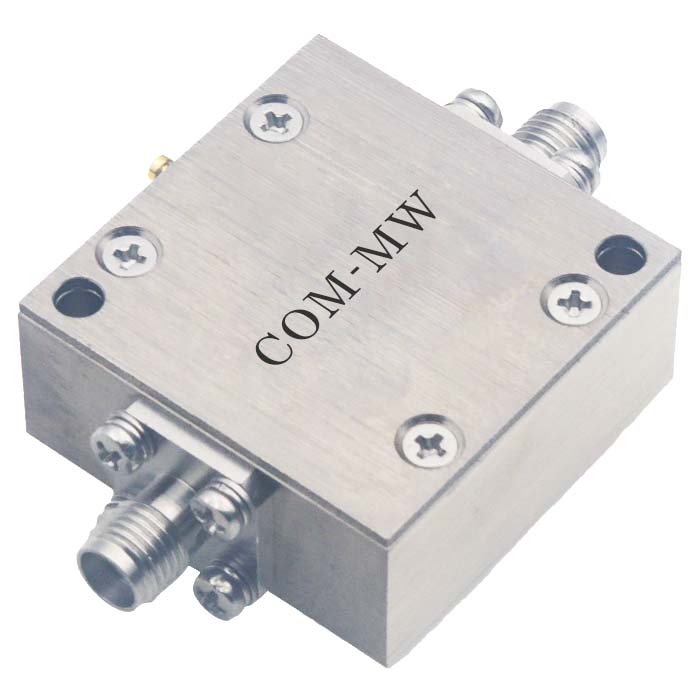

10~6000MHz, feed-voltage50V, Feed current300mA, SMA-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 10 | ~ | 6000 | MHz |
| IL | 1.2 | dB | ||
| Isolation | 20 | dB | ||
| Main line VSWR | 1.3 | |||
| feed-voltage | 50 | V | ||
| Feed current | 300 | mA |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Feed interface | Pin |
| Impedance | 50Ω |
| Power Capacity | 5W RF power, design guarantee |
| Operation Temp. | -40~+85℃ Design assurance |

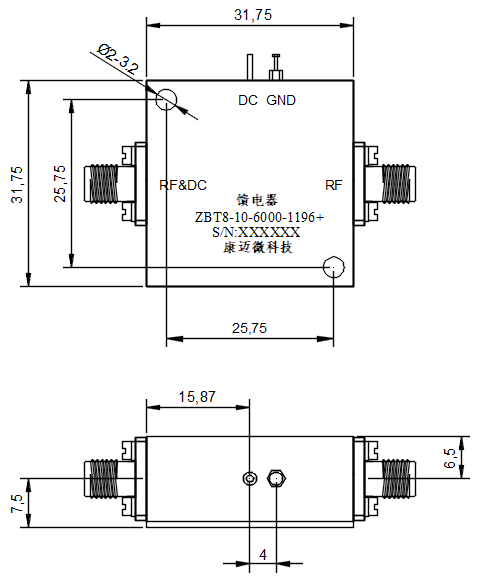

| RF | RF Port |
| RF&DC | 射频馈电端口 |
| DC | 0.8mm微带圆针 |
| GND | M2接地柱 |

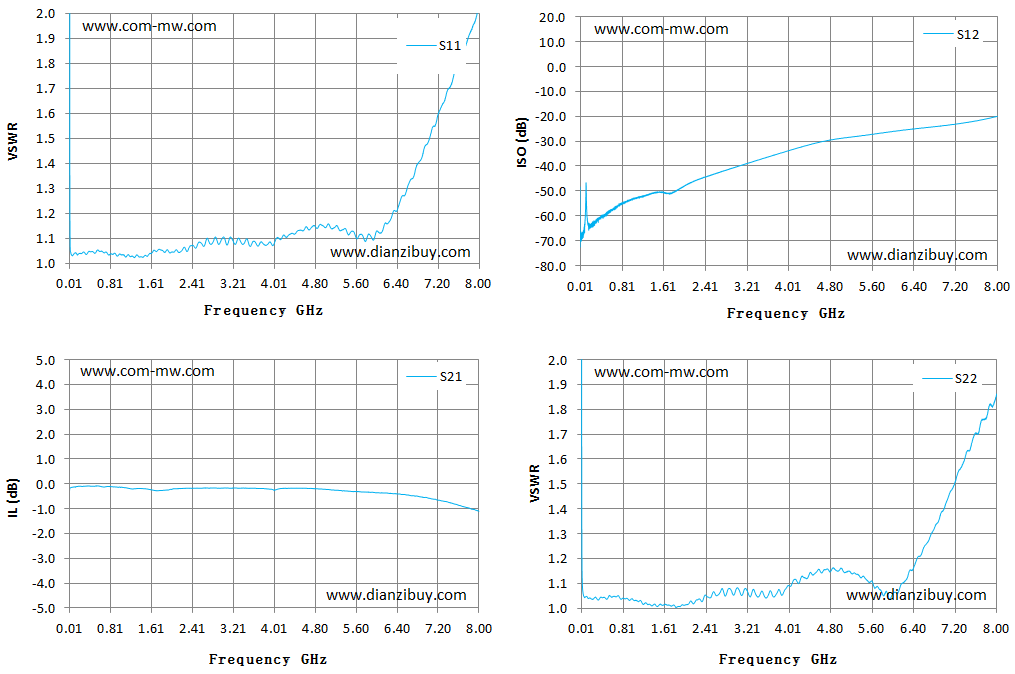

| Frequency GHz | S11 VSWR | S21 IL dB | S12 ISO dB | S22 VSWR |
|---|---|---|---|---|
| 0.01 | 1.11 | -0.23 | -67.20 | 1.20 |
| 0.58 | 1.05 | -0.08 | -57.85 | 1.04 |
| 1.15 | 1.04 | -0.18 | -52.46 | 1.03 |
| 1.72 | 1.05 | -0.27 | -50.93 | 1.01 |
| 2.29 | 1.05 | -0.17 | -45.21 | 1.03 |
| 2.86 | 1.11 | -0.17 | -41.19 | 1.08 |
| 3.43 | 1.09 | -0.17 | -37.49 | 1.05 |
| 4.01 | 1.09 | -0.27 | -33.76 | 1.09 |
| 4.58 | 1.13 | -0.18 | -30.47 | 1.16 |
| 5.15 | 1.14 | -0.25 | -28.44 | 1.15 |
| 5.72 | 1.12 | -0.33 | -26.89 | 1.08 |
| 6.29 | 1.19 | -0.38 | -25.32 | 1.14 |
| 6.86 | 1.42 | -0.52 | -24.03 | 1.34 |
| 7.43 | 1.70 | -0.76 | -22.43 | 1.63 |
| 8.00 | 2.02 | -1.11 | -20.02 | 1.86 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
