Stop band adjustable frequency150~225MHz, ≥dB, 3dB BW3~8MHz, Passband150~225MHz, ~MHz, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

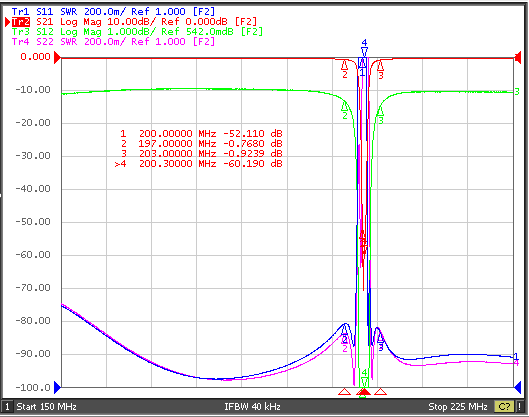

| Parameters | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|
| Stop band adjustable frequency | 150 | ~ | 225 | MHz | |
| Center frequency point of stopband ± 150KHz | ≥ | 40 | dB | ||
| 3dB BW | 3 | ~ | 8 | MHz | |
| Passband | 150 | ~ | 225 | MHz | |
| Passband IL | 1.5 | dB | |||
| Passband VSWR | 1.8 |
| Connector | N -F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | (GY05) |
| Power Capacity | 5W Design assurance |
| Operation Temp. | -40~+55℃ |
| Storage Temp. | -40~+70℃ Design assurance |

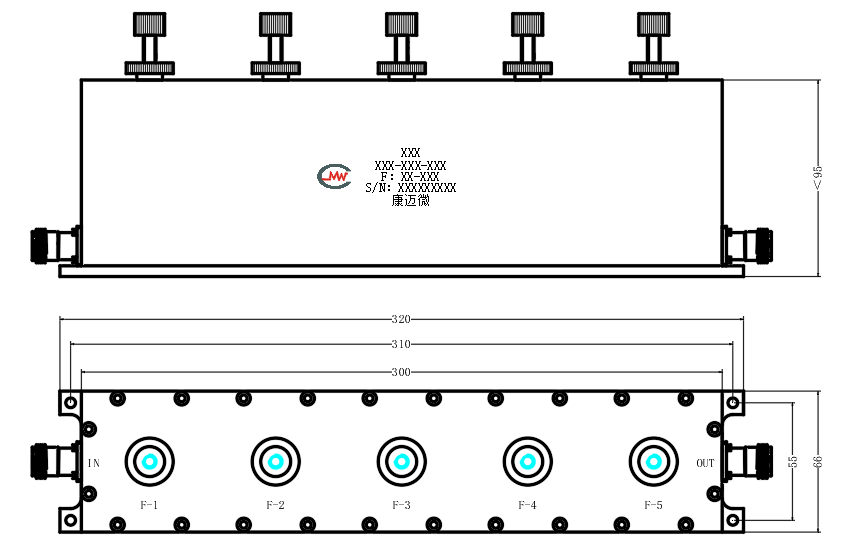

| Other | The frequency adjustment of this filter requires /uploads/kmw-media/zbsf3-c150-225-4081/manual/ZBSF3-C150-225-4081@2025-12-28-21-00-34.pdf debugging through debugging bits 1-5 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
