Stopband F935~960MHz, ≥35dBc, Passband500~850MHz, 1060~3000MHz, 500~890MHz, 1020~3000MHz,
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|
| Stopband F | 935 | ~ | 960 | MHz | |
| Stopband Rej. | ≥ | 35 | dBc | ||
| Passband | 1dB BW | 500 | ~ | 850 | MHz |
| Passband | 1dB BW | 1060 | ~ | 3000 | MHz |
| Passband | -3dB BW | 500 | ~ | 890 | MHz |
| Passband | -3dB BW | 1020 | ~ | 3000 | MHz |
| Passband IL | 1.5 | dB | |||
| Passband ripple | 1.0 | dB | |||
| Passband VSWR | 1.6 |

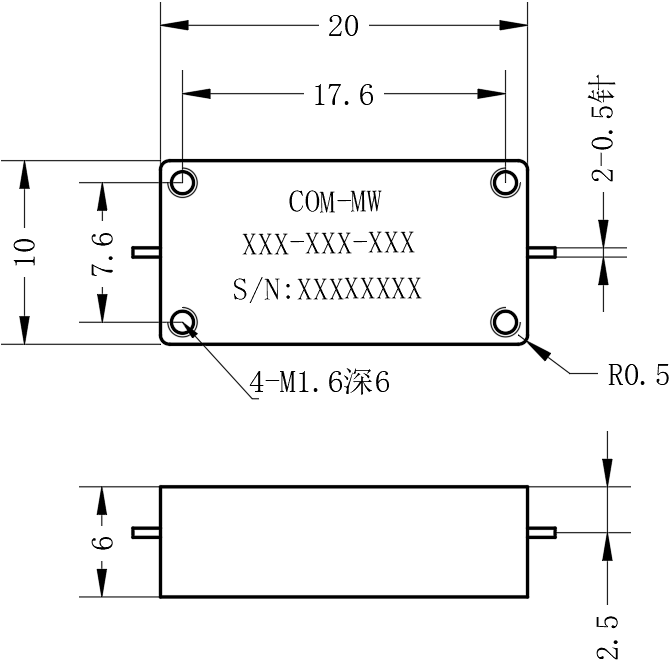

| Connector | Pin 0.5mm |
| Surface | silver-plate |
| Power Capacity | 2W Design assurance |
| Operation Temp. | -55~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
