Frequency840~5900MHz, Gain 1dBi@840-1300MHZ, Gain 2dBi@1400-1650MHZ, Gain 3dBi@2400-2500MHZ, Gain 4dBi@5700-5900MHZ, Vertical polarization, SMA-M
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
The characteristics are simple structure, high gain, and strong directionality. Customizable single line polarization, dual line polarization, and dual circular polarization antennas.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 840 | ~ | 5900 | MHz |
| Gain 1 | 5 | dBi@840-1300MHZ | ||
| Gain 2 | 8 | dBi@1400-1650MHZ | ||
| Gain 3 | 11 | dBi@2400-2500MHZ | ||
| Gain 4 | 12 | dBi@5700-5900MHZ | ||
| VSWR | 2 |
| Polarization | Vertical polarization |
| Power Capacity | 50W Design assurance |
| Connector | SMA-M |

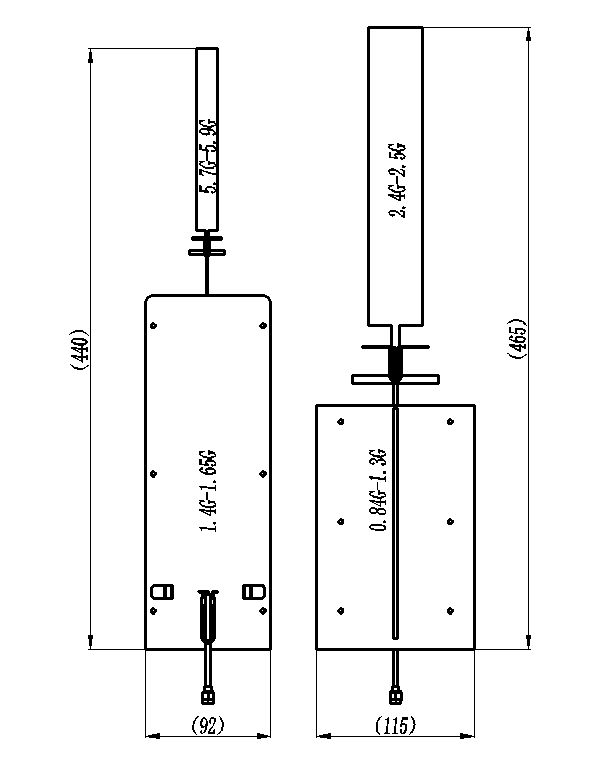

| Outline size | |
| Estimated weight | 300g |
| Operation Temp. | -25~+55℃ Design assurance |
| Other | The cable length is 165mm |
1. Non professionals are not allowed to disassemble.
/
