Center Frequency98.35MHz, -1dB BW0.1MHz, -40dB BW1.35MHz, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Center Frequency | / | / | 98.35 | MHz | ||
| Passband IL | / | / | 18 | 20 | dB | |
| Ripple | / | / | 0.8 | 1 | dB | |
| -1dB BW | 0.1 | 0.15 | MHz | |||
| -3dB BW | 0.3 | 0.35 | MHz | |||
| -40dB BW | 1.35 | 1.5 | MHz | |||
| absolute delay | 2.3 | uS | ||||
| Delay ripple | 150 | 400 | nS |

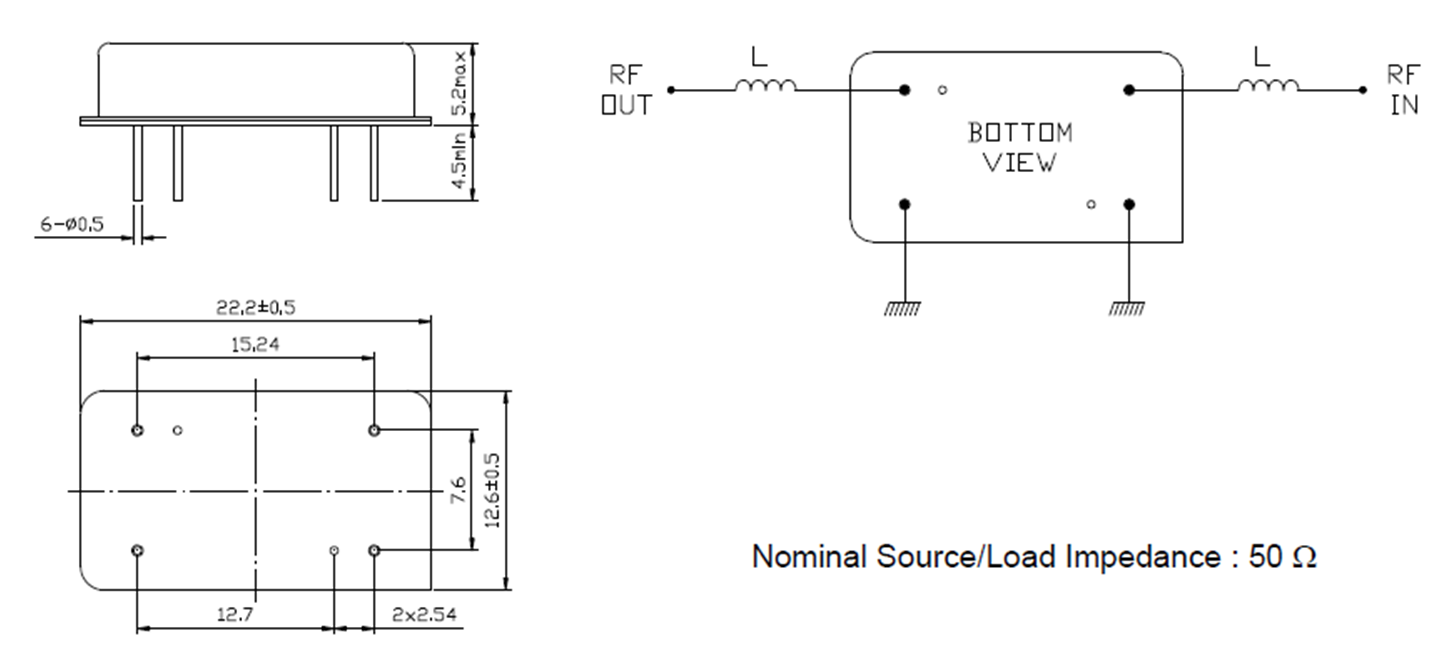

| Connector | Pin |
| Impedance | 50Ω |
| Power Capacity | 10dBm Design assurance |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |
| 1 | Short term soaking and cleaning, please dry in a timely manner. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
