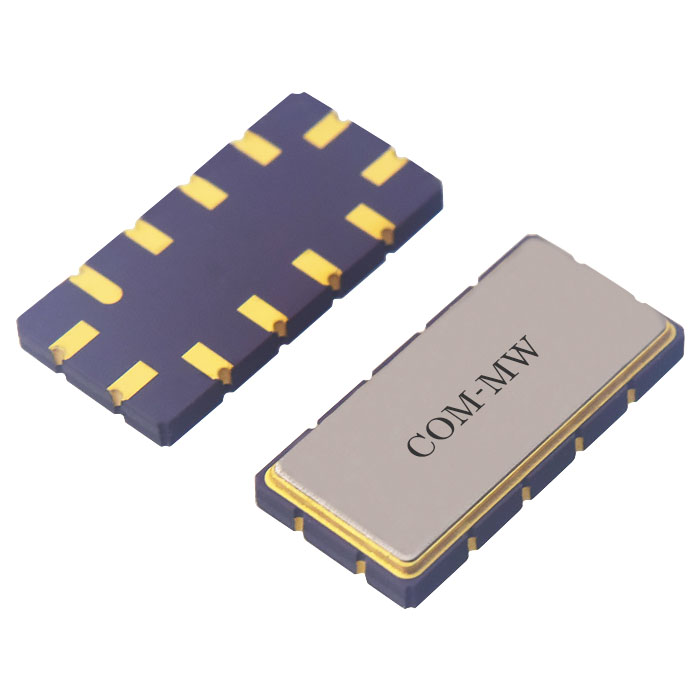

Center Frequency21.4MHz, -3dB BW1.2MHz, -30dB BW2.5MHz, SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Center Frequency | / | / | 21.4 | MHz | ||
| Passband IL | / | / | 9.9 | 12 | dB | |
| Ripple | / | / | 0.5 | 1 | dB | |
| Rejection | 30 | 35 | dB | |||
| 1dB BW | 0.5 | 0.58 | MHz | |||
| -3dB BW | 1 | 1.2 | MHz | |||
| -30dB BW | 2.5 | 2.8 | MHz |
| Connector | SMD |
| Power Capacity | 10dBm |
| Operation Temp. | -40~+85℃ Design assurance |
| Quality Grade | Industrial grade |

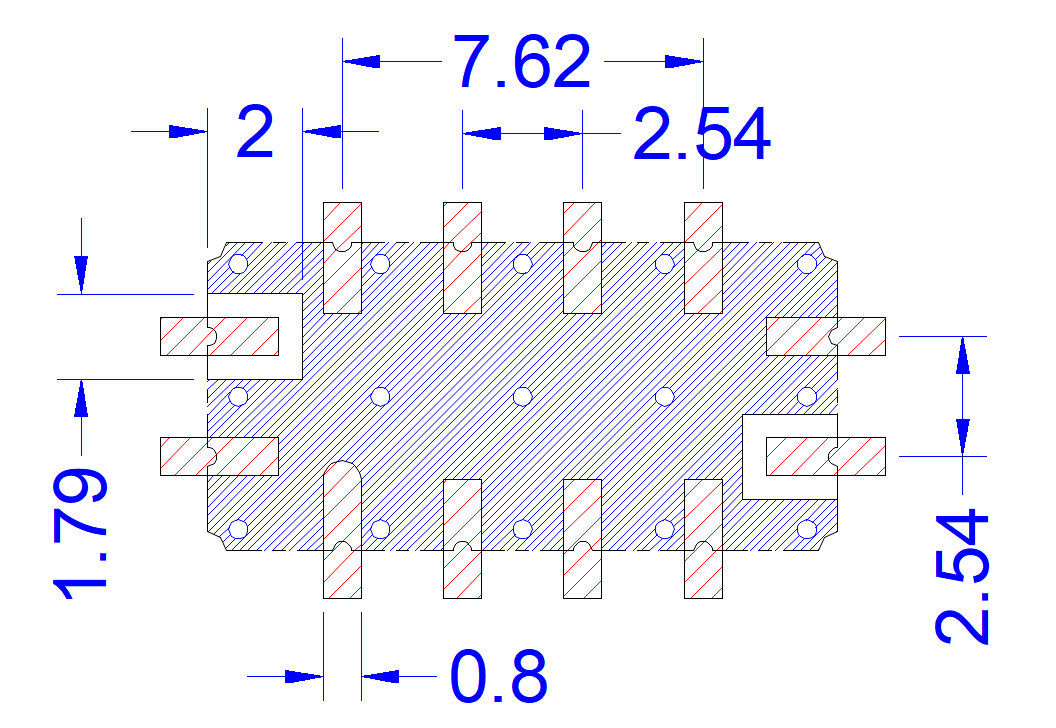

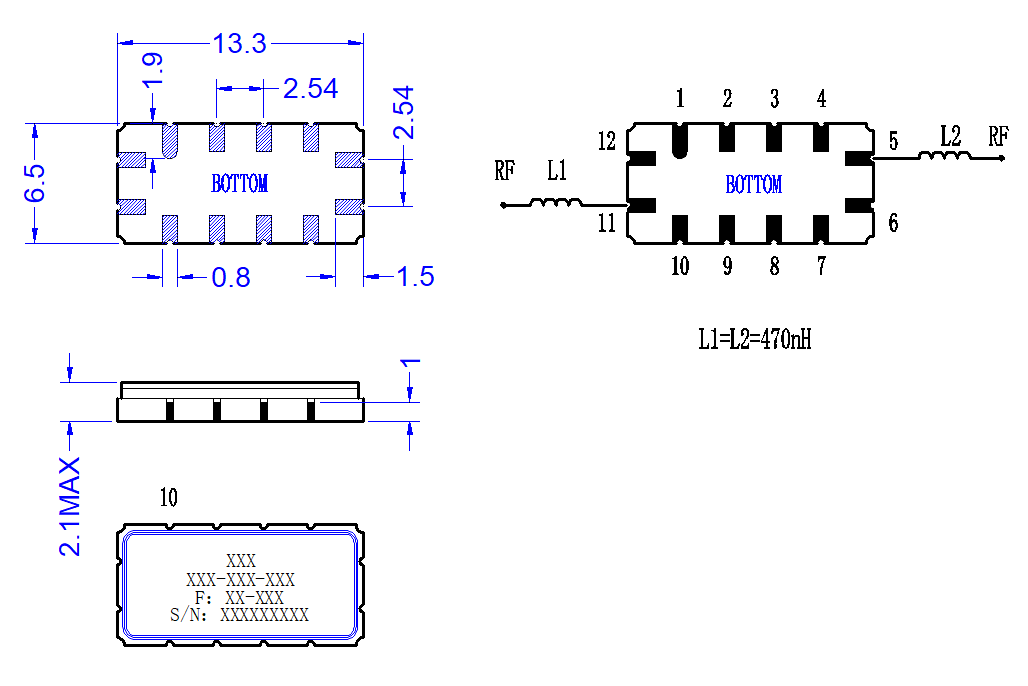

| I/O Port | 5，11 |
| GND | 1，2，3，4，6，7，8，9，10，12 |

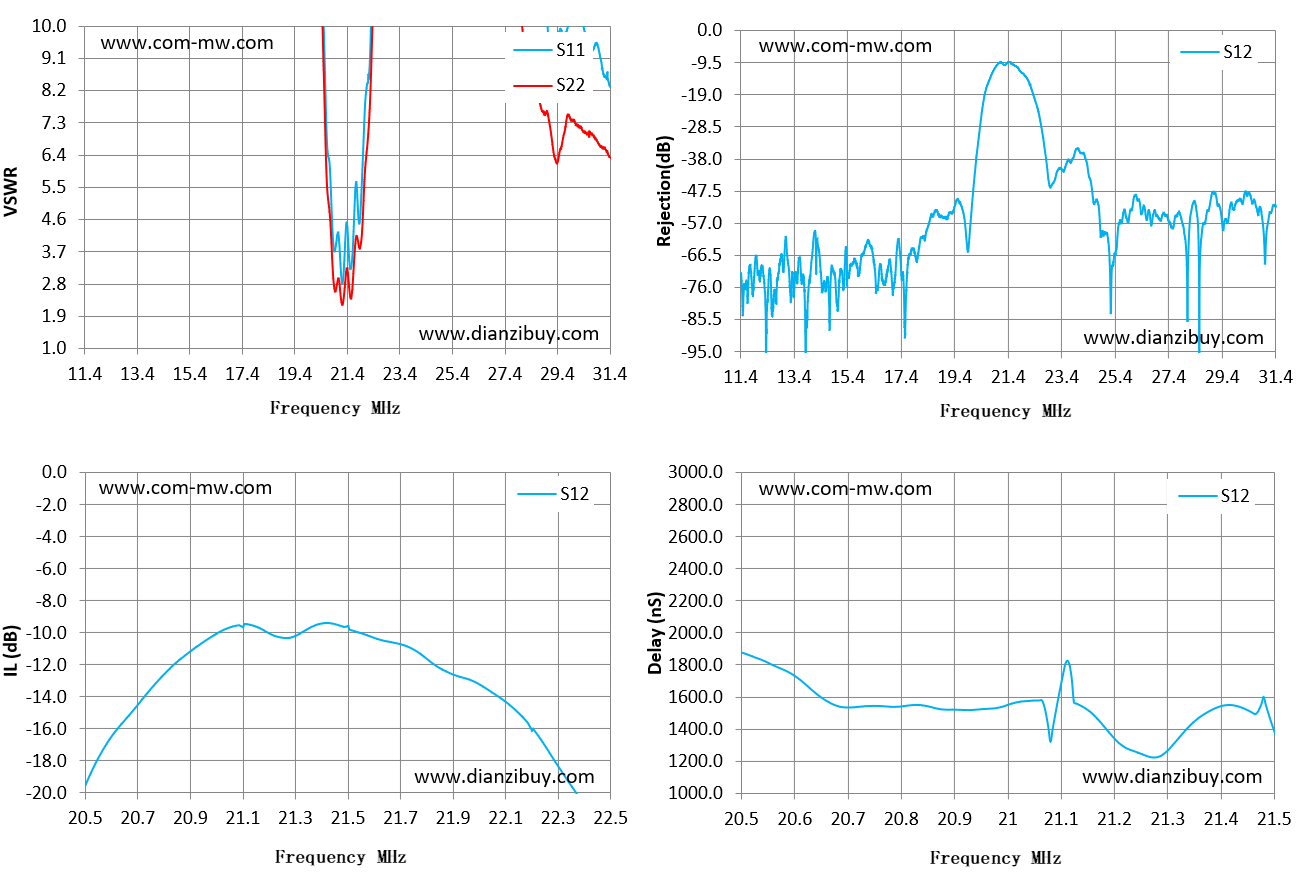

| Frequency MHz | S11 VSWR | S22 VSWR | S12 IL (dB) | S12 Delay (ns) |
|---|---|---|---|---|
| 11.00 | 351.91 | 234.50 | -71.91 | 3569.20 |
| 13.00 | 159.34 | 136.66 | -70.48 | -254.05 |
| 14.00 | 165.61 | 124.22 | -71.58 | 541.95 |
| 16.00 | 126.92 | 93.92 | -65.48 | 1169.72 |
| 17.00 | 105.33 | 76.62 | -70.12 | 1363.82 |
| 19.00 | 55.52 | 44.20 | -55.28 | 1936.85 |
| 20.00 | 37.55 | 29.11 | -55.17 | 1973.82 |
| 21.00 | 4.11 | 2.79 | -10.03 | 1548.62 |
| 23.00 | 28.73 | 22.31 | -46.00 | 2972.81 |
| 24.00 | 19.04 | 14.77 | -35.06 | 2149.21 |
| 26.00 | 17.79 | 12.53 | -53.12 | 1924.70 |
| 27.00 | 17.40 | 12.38 | -55.39 | 1032.01 |
| 29.00 | 10.19 | 7.62 | -48.51 | 2186.63 |
| 30.00 | 10.76 | 7.37 | -50.31 | 1584.60 |
| 31.00 | 9.23 | 6.68 | -68.00 | -3447.12 |
| 2 | The product supports 220 ℃ reflow soldering. |
