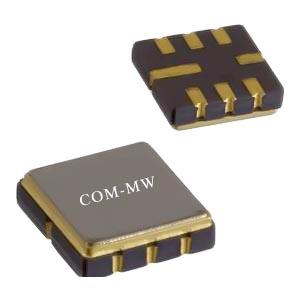

Center Frequency140MHz, -3dB BW43.3MHz, -40dB BW55MHz, SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

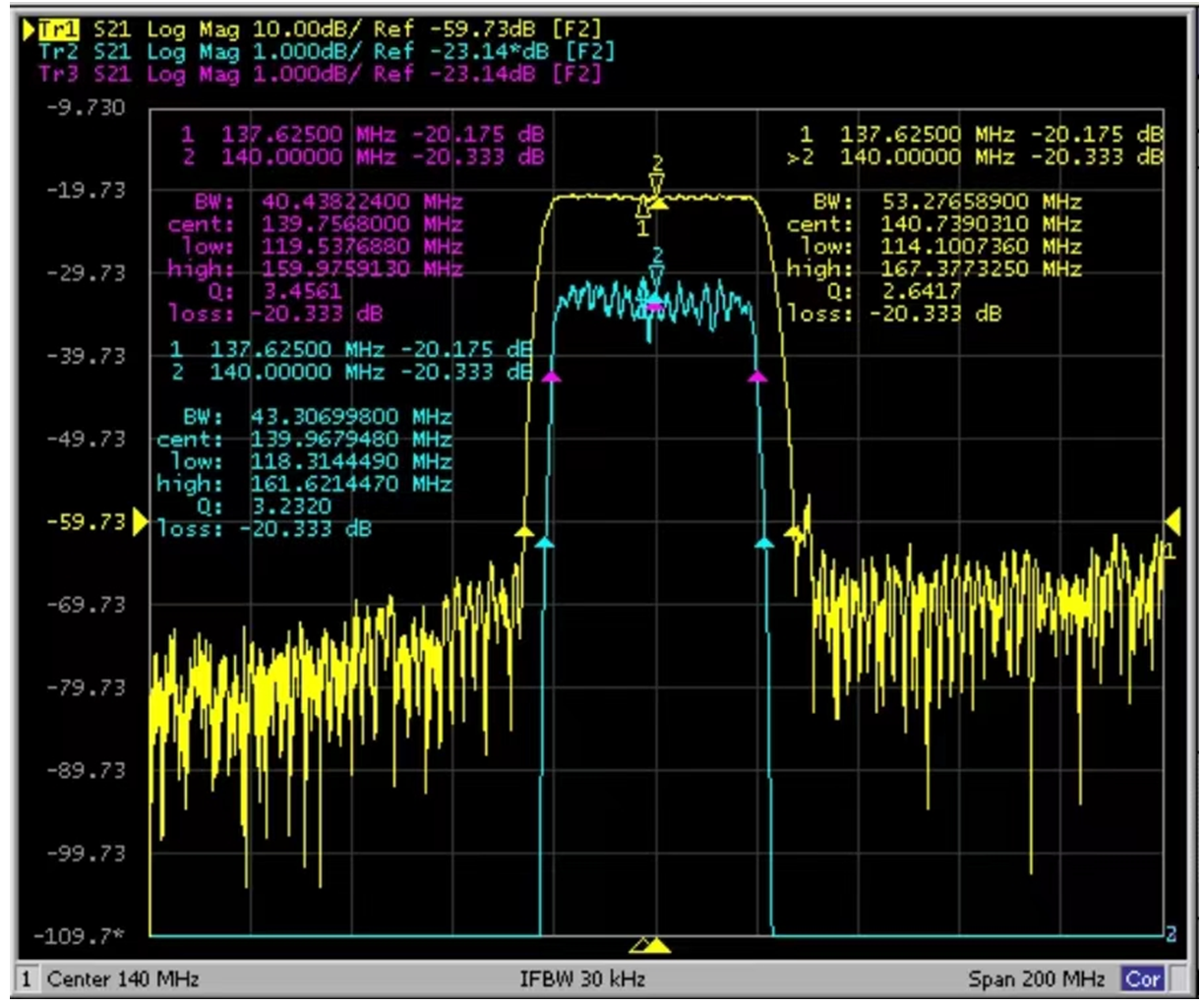

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Center Frequency | / | / | 140 | MHz | ||
| Center loss | / | / | 20.2 | 21.5 | dB | |
| Ripple | / | / | 0.8 | 1.0 | dB | |
| Rejection | 35 | 43 | dB | |||
| 1dB BW | 39.5 | 40.4 | MHz | |||
| -3dB BW | 42.5 | 43.3 | MHz | |||
| -40dB BW | 53.3 | 55 | MHz |
| Connector | SMD |
| Power | 10dBm Design assurance |
| Work Temp. | -40~+80℃ Design assurance |
| Quality Grade | Industrial grade |

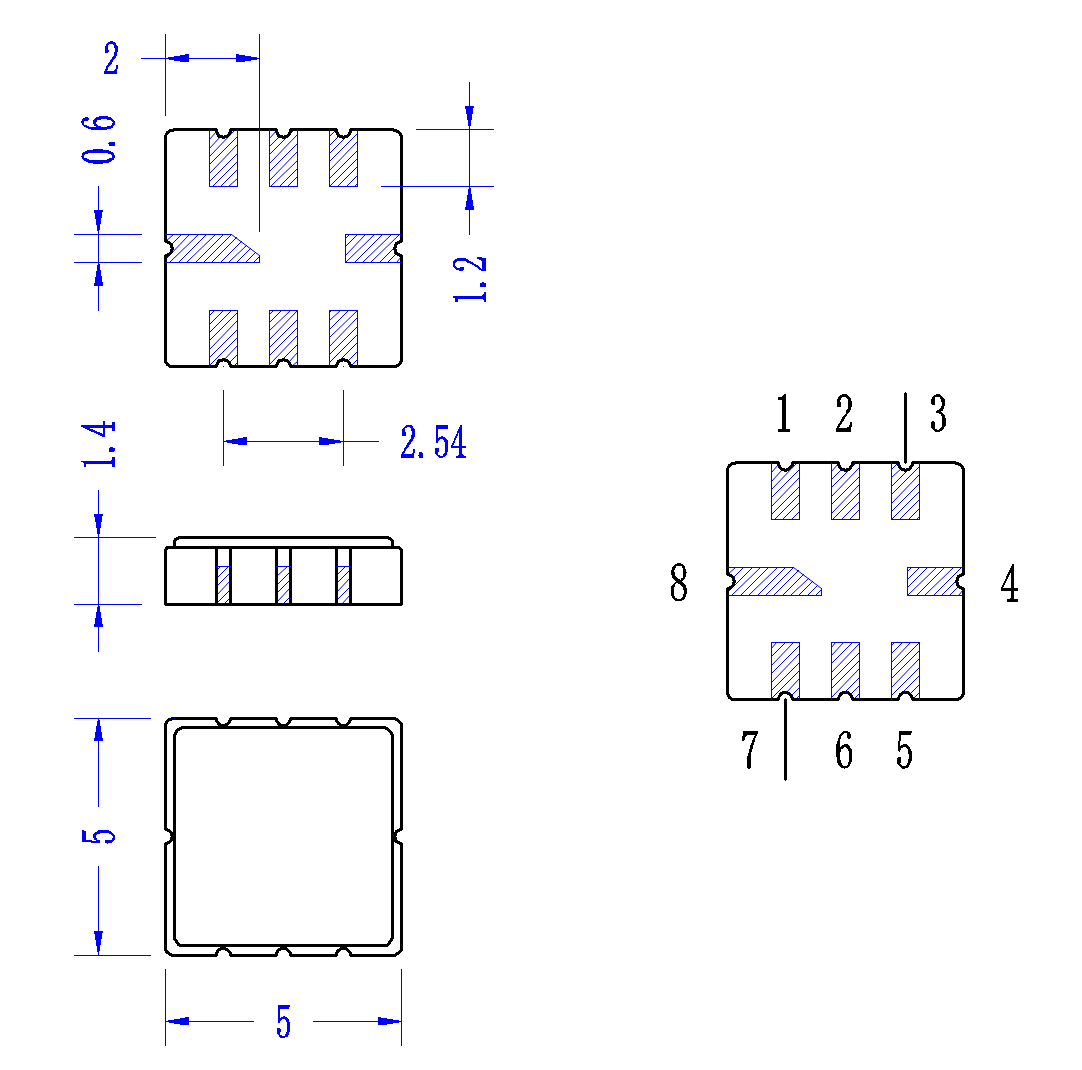

| I/O Port | 3，7 |
| GND | 1，2，4，5，6，8 |
| 1 | The product supports 220 ℃ reflow soldering |
| 2 | The product supports 220 ℃ reflow soldering. |
