Passband5200~5300MHz, -0.5dB BW100~170MHz, DC-3200MHz≥70dBc, 3200-4900MHz≥35dBc, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 5200 | ~ | 5300 | MHz |
| -0.5dB BW | / | / | 100 | ~ | 170 | MHz |
| Passband IL | 5200-5300 | MHz | 3 | dB | ||
| Rejection | DC-3200 | MHz≥ | 70 | dBc | ||
| Rejection | 3200-4900 | MHz≥ | 35 | dBc | ||
| Rejection | 5600-6000 | MHz≥ | 35 | dBc | ||
| Rejection | 6000-10000 | MHz≥ | 70 | dBc | ||
| Passband VSWR | 5200-5300 | MHz | 1.5 | |||
| Group delay ripple | 5200-5300(任意20)MHz | MHz | 0.8 | ns | ||
| Group delay ripple | 5200-5300(任意0.9)MHz | MHz | 0.2 | ns |

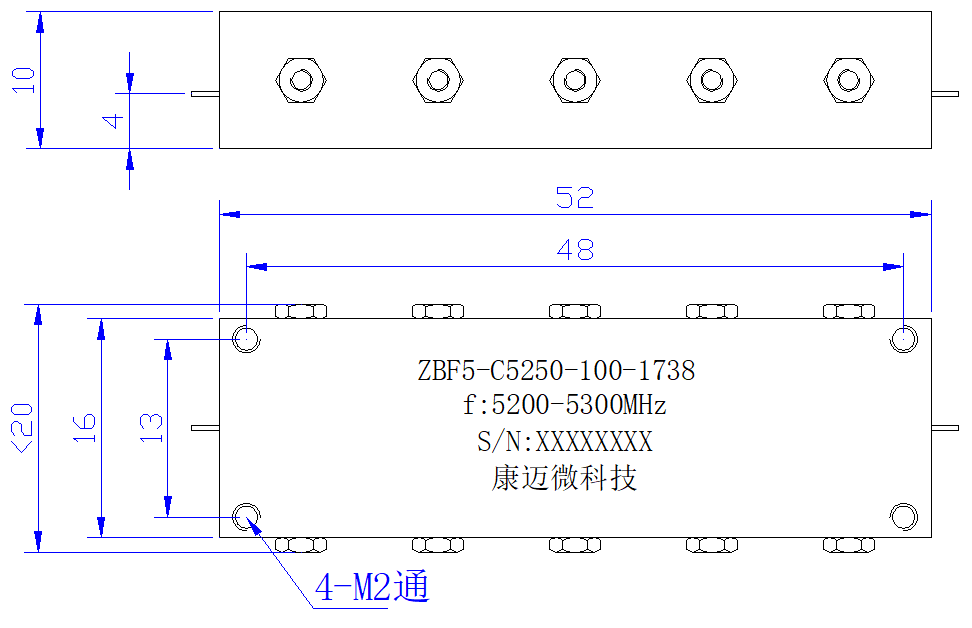

| Connector | Pin 0.5mm |
| Impedance | 50Ω |
| Surface | Silver plating |
| Power | 20W Design assurance |
| Work Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
