Passband30~31GHz, DC-29.05GHz≥85dB, 32-42GHz≥55dB, Waveguide
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

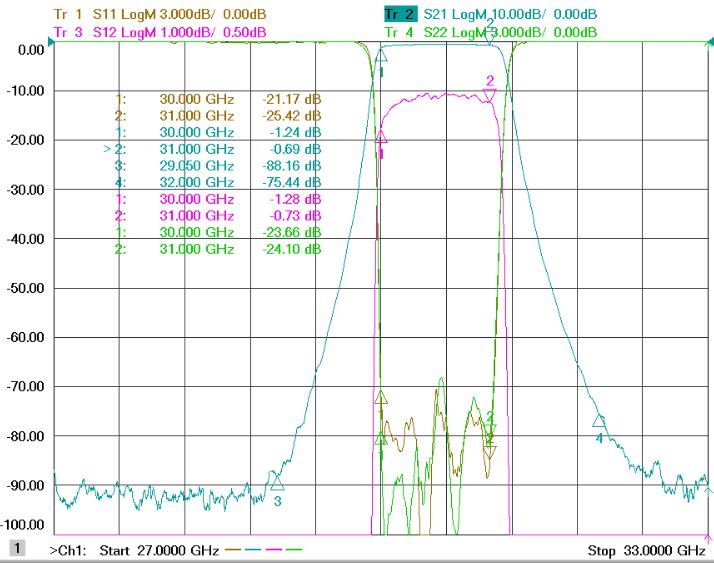

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 30 | ~ | 31 | GHz |
| Passband IL | / | / | 2.0 | dB | ||
| Ripple | / | / | 1.0 | dB | ||
| Rejection | DC-29.05 | GHz≥ | 85 | dB | ||
| Rejection | 32-42 | GHz≥ | 55 | dB | ||
| Ripple | / | / | 18 | dB |
| Connector | Waveguide |
| Waveguide port | WR28 |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 10W Design assurance |
| Product shell material | Aluminium |
| Delay ripple | ＜2.0ns(Could be relaxed) |
| Operation Temp. | -40~+90℃ |
| Quality Grade | Industrial grade |
