Passband2210~2470MHz, DC-1600MHz≥30dBc, 2800-4000MHz≥30dBc, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

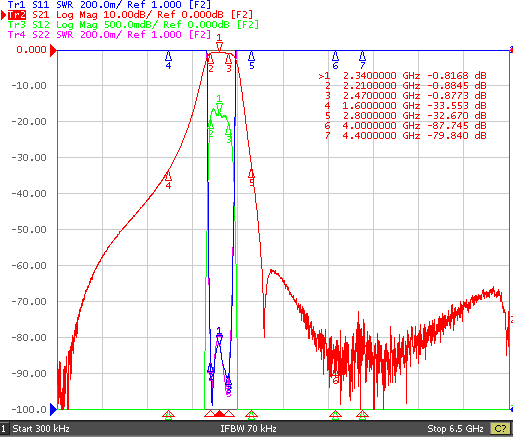

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 2210 | ~ | 2470 | MHz |
| Passband IL | / | / | 1.0 | dB | ||
| Ripple | / | / | 0.5 | dB | ||
| Rejection | DC-1600 | MHz≥ | 30 | dBc | ||
| Rejection | 2800-4000 | MHz≥ | 30 | dBc | ||
| Rejection | 4400-6500 | MHz≥ | 45 | dBc | ||
| Passband VSWR | / | / | 1.5 |

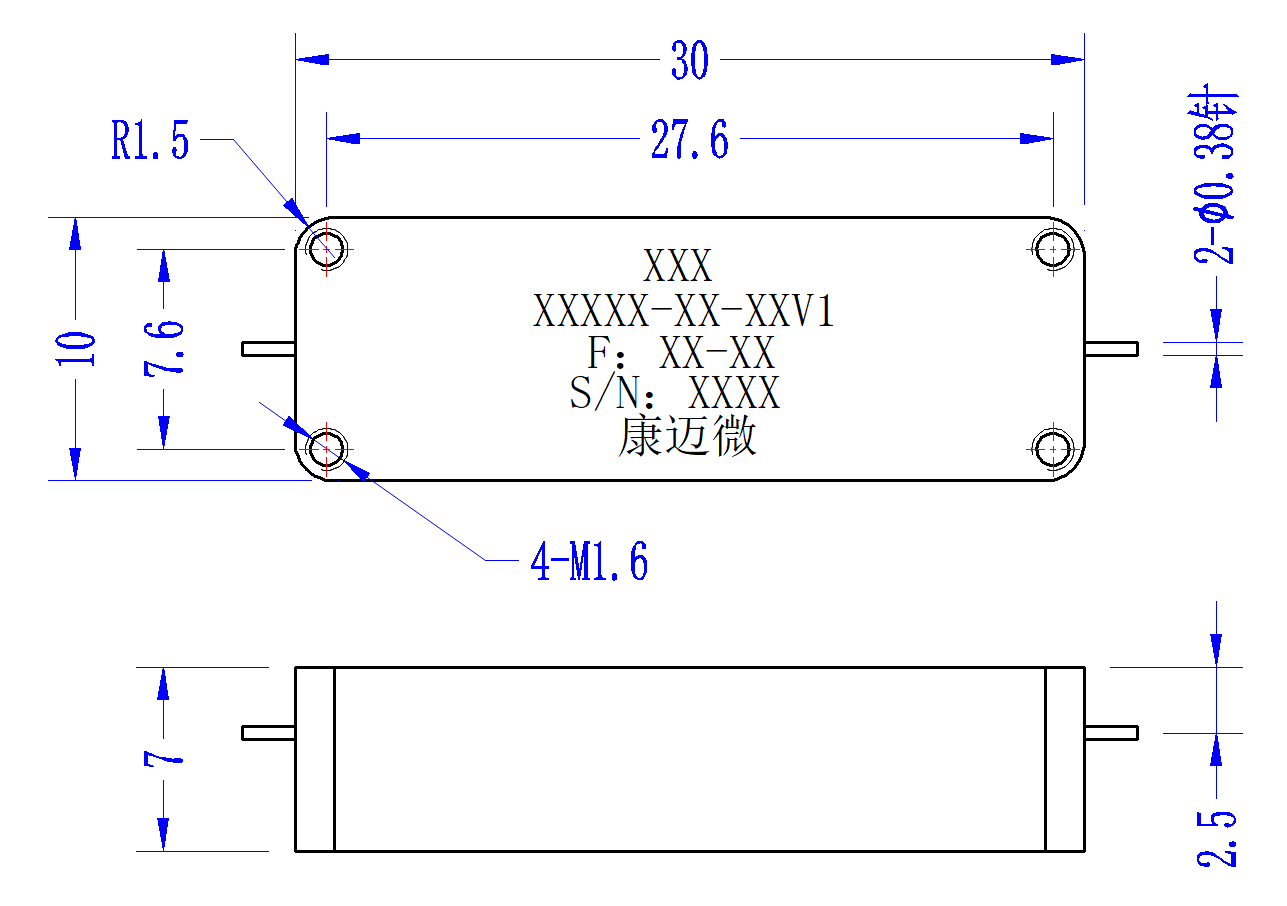

| Connector | Pin 0.38mm |
| Impedance | 50Ω |
| Surface | silver-plate |
| Peak power | 参考知识 14/5000 Reference Knowledge 14/5000 Translation Machine · General Field 20W Design Guarantee, Duty Cycle of 25% 划译 机翻 · 通用领域 20W design guarantee, duty cycle of 25% |
| Product shell material | Copper |
| Operation Temp. | -40~+70℃ |
| Storage Temp. | -55~+85℃ Design assurance |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
