Passband136~144MHz, DC-127.6MHz≥60dB, 152.4MHz≥60dB, SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Small size, high cost-effectiveness.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | 136 | ~ | 144 | MHz | ||
| Center loss | 7.0 | dB | ||||
| Ripple | 3.0 | dB | ||||
| Rejection | DC-127.6 | MHz≥ | 60 | dB | ||
| Rejection | 152.4 | MHz≥ | 60 | dB | ||
| Passband VSWR | 1.5 |

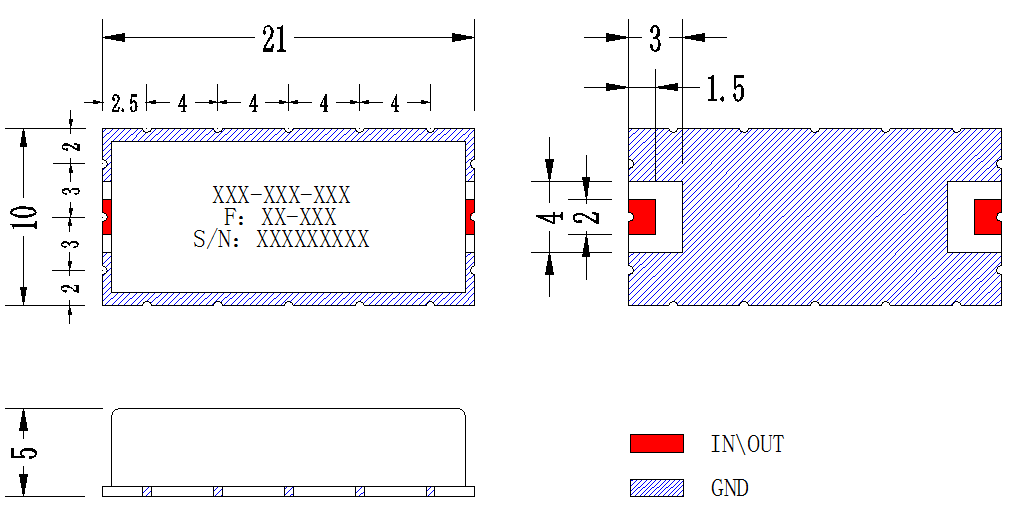

| Connector | SMD |
| Impedance | 50Ω |
| Operation Temp. | -40~+70℃ |
| Other | 1，矩形系数@K60/3≤3. 1。2，带内绝对延时:≤180nS。3，群延时波动@140±4MHz内:≤50nS。4，-3dB带宽:8±0.5MHz。5，4、带内驻波比@140±4MHz:≤1.5。 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
