1180~1220MHz, 1050~1350MHz, 900~1500MHz, 825~1575MHz, 1135, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

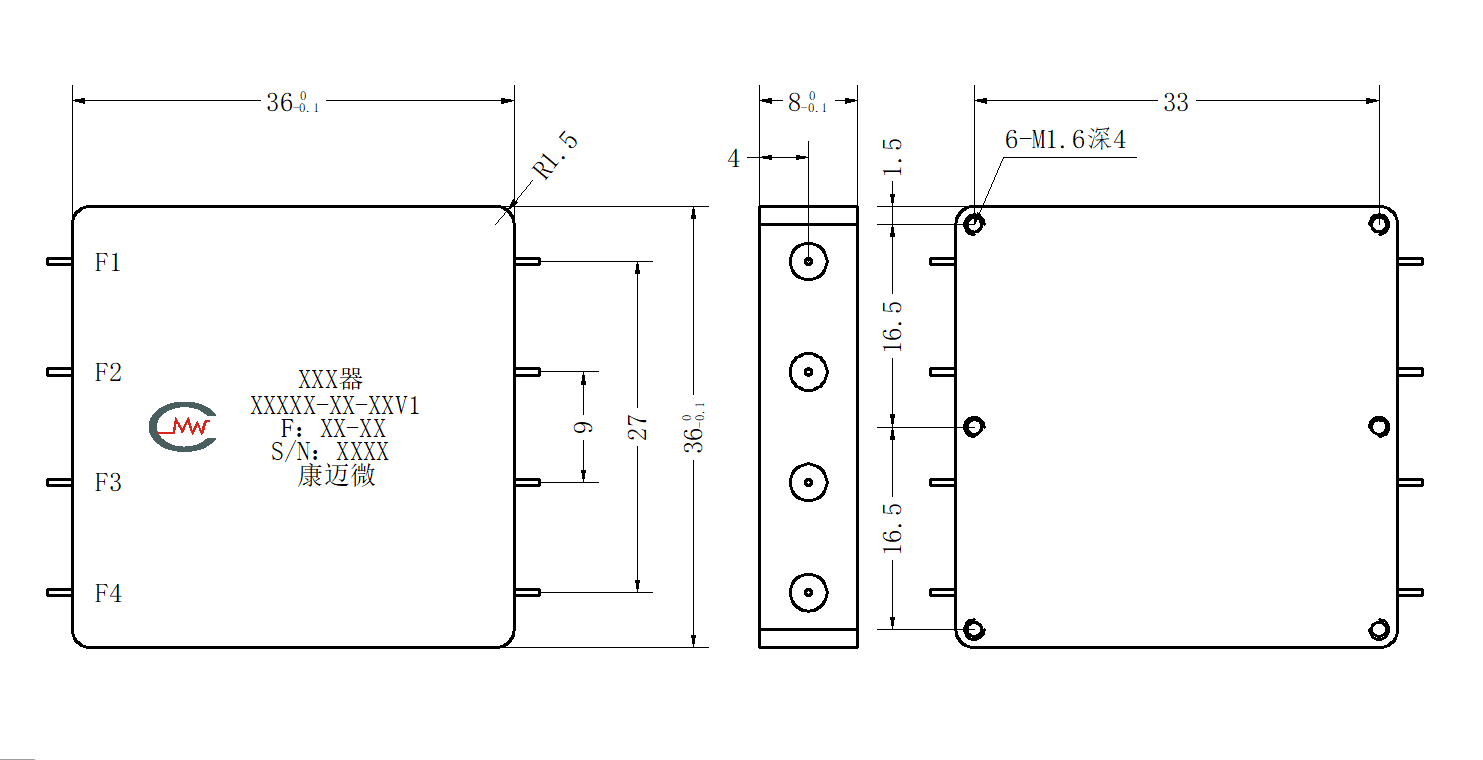

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F2 | / | / | 1180 | ~ | 1220 | MHz |
| Passband F3 | / | / | 1050 | ~ | 1350 | MHz |
| Passband F1 | / | / | 900 | ~ | 1500 | MHz |
| Passband F4 | / | / | 825 | ~ | 1575 | MHz |
| Passband VSWR | 1.6 | |||||
| Bandpass 2 Center loss | 6 | dB | ||||
| 通带三中心损耗 | 2 | dB | ||||
| Bandpass 1 Center loss | 1.5 | dB | ||||
| 通带四中心损耗 | 1.2 | dB | ||||
| band 2 Rejection | 1135 | MHz≥ | 40 | dBc | ||
| band 2 Rejection | 1265 | MHz≥ | 40 | dBc | ||
| band 3 Rejection | 925 | MHz≥ | 40 | dBc | ||
| band 3 Rejection | 1475 | MHz≥ | 40 | dBc | ||
| Band 1 Rejection | 740 | MHz≥ | 40 | dBc | ||
| Band 1 Rejection | 1660 | MHz≥ | 40 | dBc | ||
| band 4 Rejection | 650 | MHz≥ | 40 | dBc | ||
| band 4 Rejection | 1750 | MHz≥ | 40 | dBc |
| Connector | Pin 0.5mm |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 1W Design assurance |
| Shell Material | Aluminium |
| Ripple | 1.0dB |
| Operation Temp. | -40~+70℃ |
| Other | 通带二群时延波动:5ns；通带三群时延波动:3.5ns；通带一群时延波动:3.2ns；通带四群时延波动:2ns； |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
