Passband F12025~2120MHz, Passband F22200~2335MHz, Passband F32420~2480MHz, f0±300MHz≥55dBc, f0±300MHz≥55dBc, f0±300MHz≥55dBc, dB, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

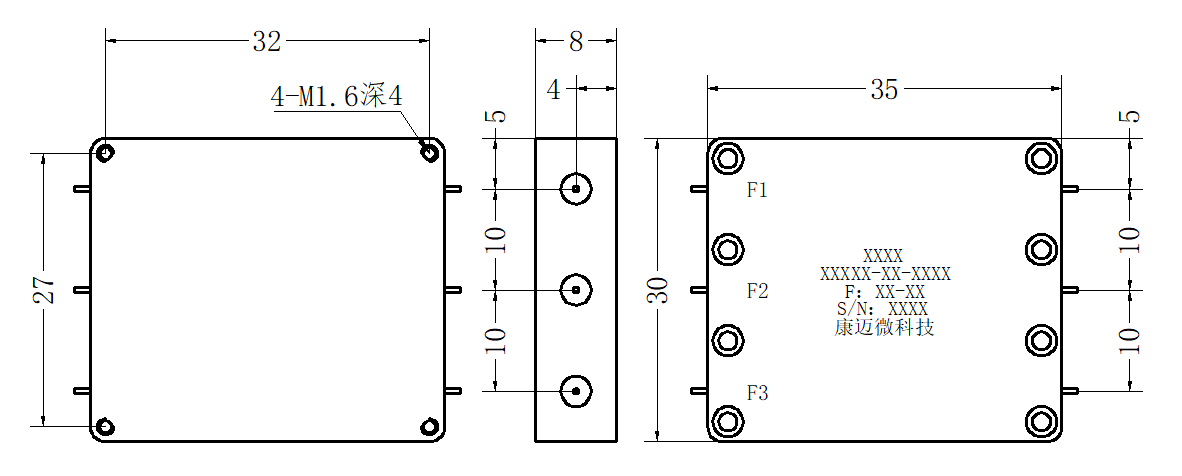

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | 2025 | ~ | 2120 | MHz |
| Passband F2 | / | / | 2200 | ~ | 2335 | MHz |
| Passband F3 | / | / | 2420 | ~ | 2480 | MHz |
| Passband IL | / | / | 5.0 | dB | ||
| Ripple | / | / | 1.0 | dB | ||
| Passband 1 rejection | f0±300 | MHz≥ | 55 | dBc | ||
| Passband 2 rejection | f0±300 | MHz≥ | 55 | dBc | ||
| Passband 3 rejection | f0±300 | MHz≥ | 55 | dBc | ||
| Passband VSWR | / | / | 1.6 |
| Connector | Pin 0.5mm |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 1W Design assurance |
| Product shell material | Aluminium |
| Delay ripple | ≤2ns @ Passband 1 |
| Delay ripple | ≤2ns @ Passband 2 |
| Delay ripple | ≤2ns @ Passband 3 |
| Phase balance | ≤8° |
| Operation Temp. | -40~+70℃ Design assurance |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
