Passband F1249~351MHz, Passband F2288~312MHz, 300MHz±70MHz≥10dB, 300MHz±93MHz≥40dB, 300MHz±140MHz≥60dB, 300MHz±16.8MHz≥17dB, 300MHz±36MHz≥45dB, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | 249 | ~ | 351 | MHz |
| Passband F2 | / | / | 288 | ~ | 312 | MHz |
| Passband 1 IL | 300MHz | / | 2.0 | dB | ||
| Passband 2 IL | 300MHz | / | 4.0 | dB | ||
| 通带1带内波动 | / | / | 1.0 | dB | ||
| 通带2带内波动 | / | / | 3.0 | dB | ||
| Passband 1 rejection | 300MHz±70 | MHz≥ | 10 | dB | ||
| Passband 1 rejection | 300MHz±93 | MHz≥ | 40 | dB | ||
| Passband 1 rejection | 300MHz±140 | MHz≥ | 60 | dB | ||
| Passband 2 rejection | 300MHz±16.8 | MHz≥ | 17 | dB | ||
| Passband 2 rejection | 300MHz±36 | MHz≥ | 45 | dB | ||
| Passband VSWR | / | / | ||||
| Return loss | / | / | dB |

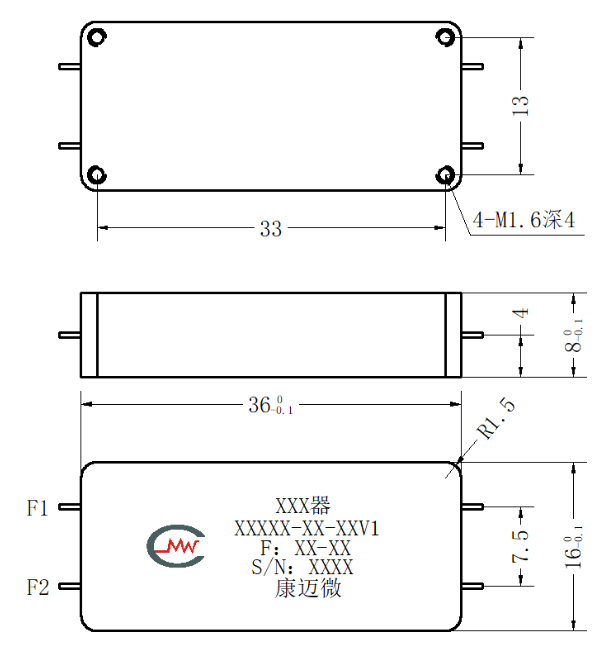

| Connector | Pin 0.5mm |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 1W Design assurance |
| Operation Temp. | -40~+70℃ |
| Storage Temp. | -55~+85℃ Design assurance |
| Other | 通带频率1:-1dB带宽:≥102MHz 通带频率2:-3dB带宽:≥24MHz 通带1带内群时延波动:≤3ns（82MHz带宽） 通带1带内群时延波动:≤7ns（102MHz带宽） 通带2带内群时延波动:≤1ns（300MHz±2MHz带宽） |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
