Passband442.5MHz, DC-180MHz≥60dBc, 635-760MHz≥50dBc, SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 442.5 | MHz | ||
| Passband IL | / | / | 1 | dB | ||
| Ripple in band | f0±42.5 | MHz | 0.3 | dB | ||
| Rejection | DC-180 | MHz≥ | 60 | dBc | ||
| Rejection | 635-760 | MHz≥ | 50 | dBc | ||
| Rejection | 960-1250 | MHz≥ | 70 | dBc | ||
| Rejection | 1500 | MHz≥ | 55 | dBc | ||
| Passband VSWR | f0±42.5 | MHz | 1.5 |

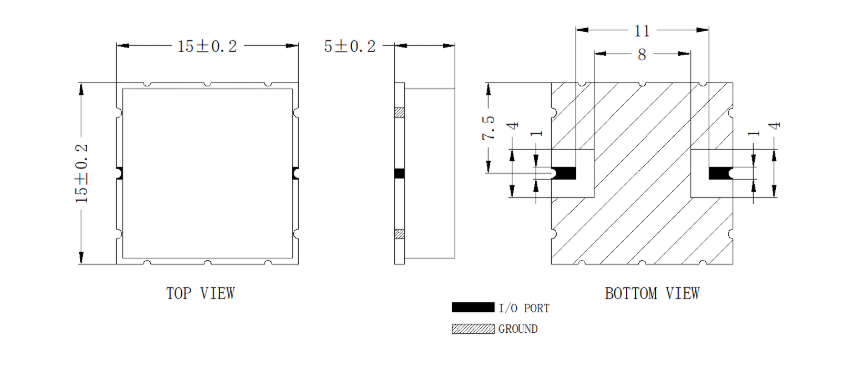

| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 20W连续波 |
| 1dB BW | ≥85MHz |
| Delay ripple | ≤1.5nsf0±42.5MHz |
| Phase fluctuation | ±10° |
| Operation Temp. | -55~+85℃ Design assurance |
| 批产一至性 | 幅度：≤±0.2db@f0±42.5MHz 相位：≤±5°@f0±42.5MHz |
| 器件装焊工艺要求 | 适合于180℃回流焊接工艺，在微带板上峰值温度时间30至45秒， 可满足五次回流焊接，同时能通过-55℃~+85℃循环12次温度冲击筛选 |
| Other | 重量＜4g |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 220 ℃ reflow soldering. |
