Passband600~2200MHz, DC-400MHz≥35dBc, 400-550MHz≥25dBc, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units | ||
|---|---|---|---|---|---|---|
| Passband | 600 | ~ | 2200 | MHz | ||
| Passband IL | 2.0 | 2.5 | dB | |||
| Ripple | 1.0 | 1.5 | dB | |||
| Rejection | DC-400 | MHz≥ | 35 | dBc | ||
| Rejection | 400-550 | MHz≥ | 25 | dBc | ||
| Rejection | 2400-3500 | MHz≥ | 25 | dBc | ||
| Passband VSWR | 1.6 | 1.80 | :1 |

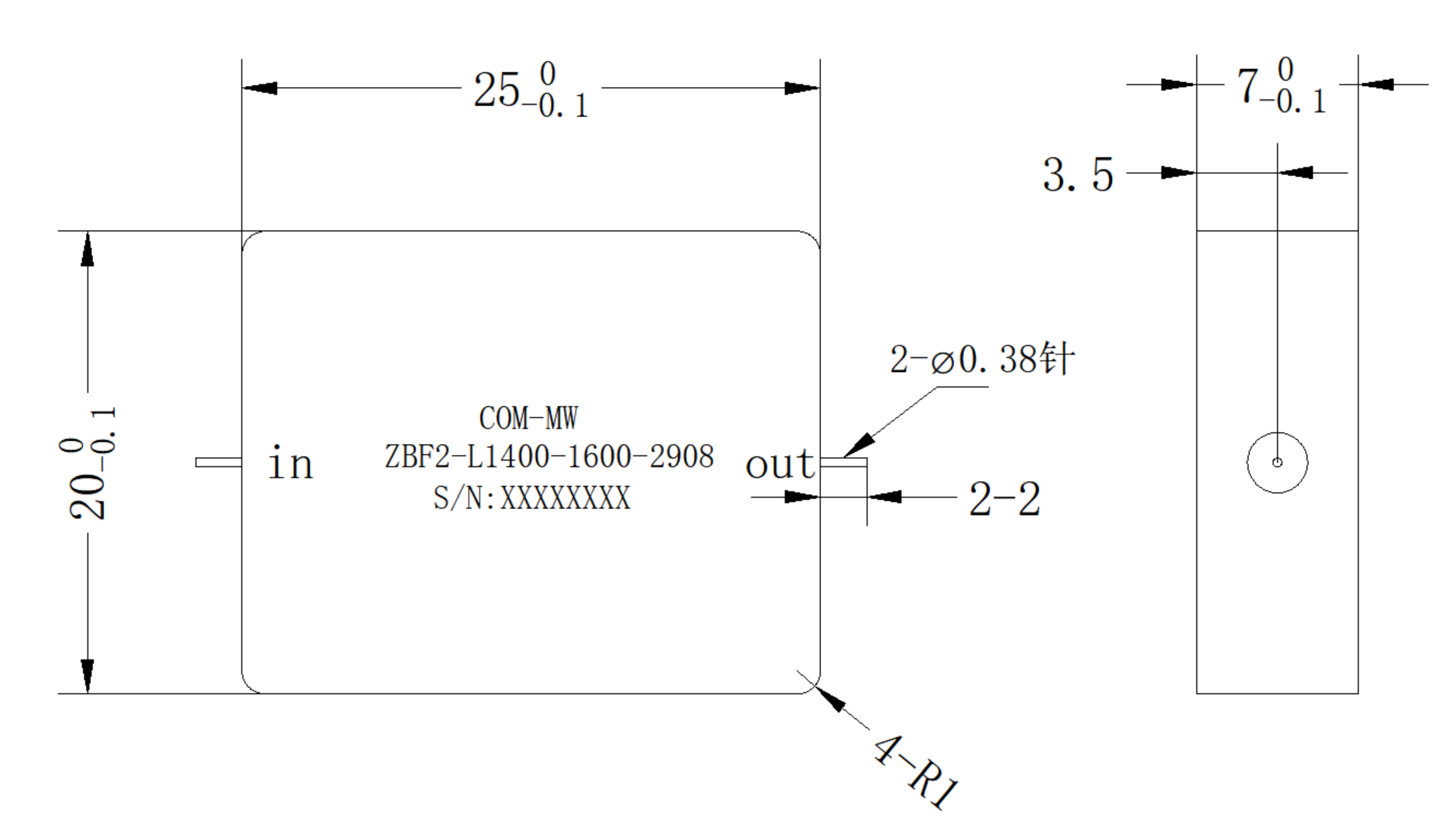

| Connector | Pin 0.38mm |
| Impedance | 50Ω |
| Surface | silver-plate |
| 外壳材质 | Copper |
| Passband phase consistency | ±2.5°@所有交付批，保留基准件不交付。 |
| Operation Temp. | -55~+85℃ |
| Other | 1、气密设计保证；2、满足高温120℃烘烤2-4小时； 3、输入端口统一。 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
