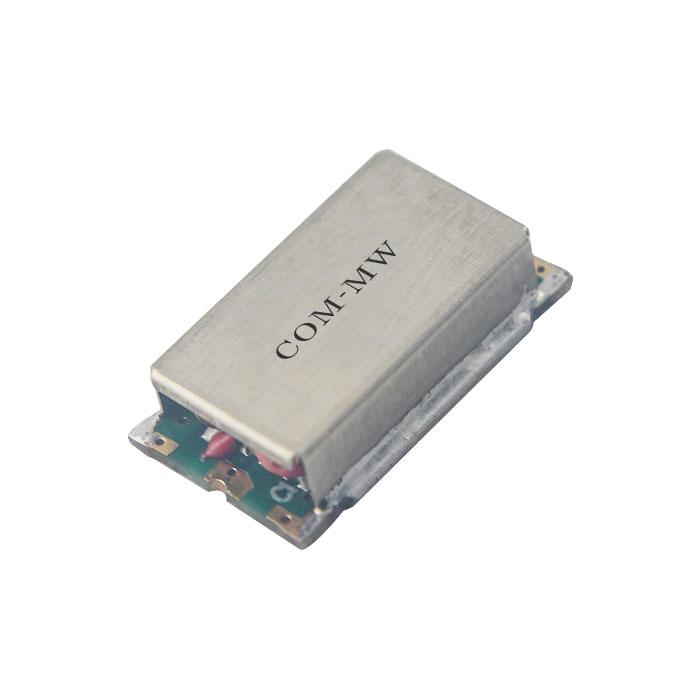

Passband120~160MHz, fo±50MHz≥45dBc, dB, SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 120 | ~ | 160 | MHz |
| Passband IL | / | / | 3 | dB | ||
| Ripple | / | / | 0.8 | dB | ||
| Rejection | fo±50 | MHz≥ | 45 | dBc | ||
| Passband VSWR | / | / | 1.5 |

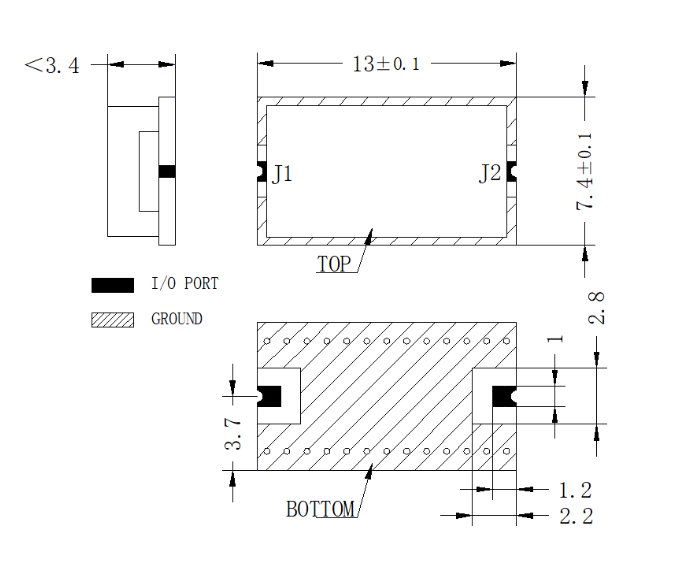

| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 1W Design assurance |
| Operation Temp. | -55~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| 注意事项1 | 滤波器内部使用的焊锡熔点为 217℃无铅焊料; |
| 注意事项2 | 焊接最高温度避免超过 225℃，焊接控制在时间 6s 内； |
| 注意事项3 | 清洗时避免有机溶剂进入滤波器内部； |

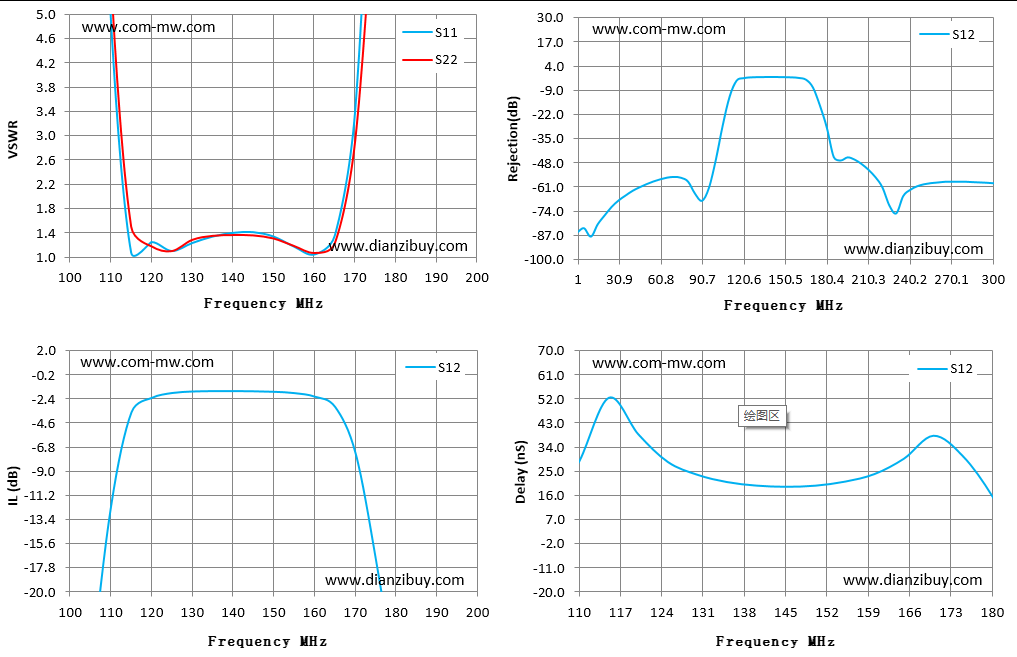

| Frequency MHz | S11 VSWR | S22 VSWR | S12 IL (dB) | S12 Rejection | S12 Delay (ns) |
|---|---|---|---|---|---|
| 100.00 | 26.40 | 31.50 | -61.51 | -61.51 | -10.70 |
| 107.00 | 12.99 | 13.89 | -27.68 | -27.68 | 9.12 |
| 114.00 | 4.94 | 5.65 | -12.15 | -12.15 | 28.65 |
| 121.00 | 1.24 | 1.18 | -2.33 | -2.33 | 38.69 |
| 129.00 | 1.10 | 1.10 | -1.89 | -1.89 | 28.38 |
| 136.00 | 1.33 | 1.35 | -1.71 | -1.71 | 20.90 |
| 143.00 | 1.39 | 1.36 | -1.71 | -1.71 | 19.58 |
| 150.00 | 1.41 | 1.36 | -1.73 | -1.73 | 19.13 |
| 157.00 | 1.17 | 1.18 | -1.90 | -1.90 | 21.06 |
| 164.00 | 1.04 | 1.07 | -2.22 | -2.22 | 23.88 |
| 171.00 | 3.40 | 2.90 | -7.38 | -7.38 | 38.17 |
| 179.00 | 9.72 | 7.17 | -17.10 | -17.10 | 30.49 |
| 186.00 | 26.51 | 15.55 | -44.88 | -44.88 | -5.33 |
| 193.00 | 35.18 | 19.43 | -46.67 | -46.67 | -51.07 |
| 200.00 | 43.42 | 23.40 | -44.99 | -44.99 | -1.81 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 220 ℃ reflow soldering. |
