Passband23.29~43.75MHz, f0±16MHz≥40dBc, f0±23MHz≥55dBc, SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

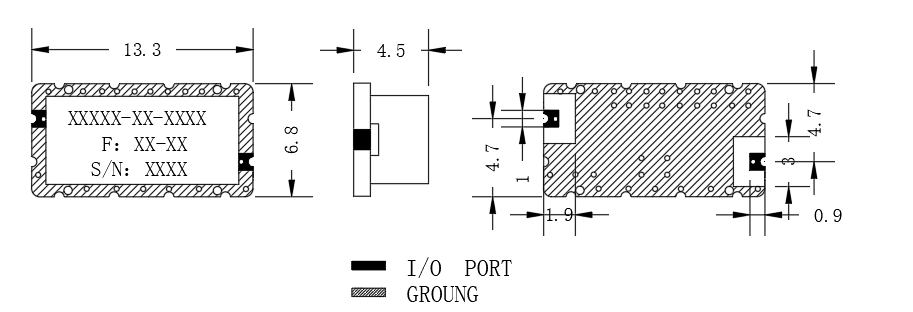

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 23.29 | ~ | 43.75 | MHz |
| Center loss | / | / | 1.8 | dB | ||
| -3dB BW | ≥20.46 | MHzMHz | dB | |||
| Ripple | f0±8 | MHz | 1.0 | dB | ||
| Ripple | f0±10.23 | MHz | 2.5 | dB | ||
| Rejection | f0±16 | MHz≥ | 40 | dBc | ||
| Rejection | f0±23 | MHz≥ | 55 | dBc | ||
| Passband VSWR | / | / | 1.6 | |||
| Return loss | / | / | dB |
| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 2W Design assurance |
| Amplitude Balance | ≤0.5dB（每4只一组，f0±10.23MHz） |
| Phase balance | ±3°（每4只一组，f0±10.23MHz） |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | 227°无铅锡 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 220 ℃ reflow soldering. |
