Passband290~310, 330MHz≥20dBc, 2200-2400MHz≥50dB, SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 290 | ~ | 310 | |
| Passband IL | / | / | 4.0 | dB | ||
| Ripple | / | 1.0 | dB | |||
| -1dB 带宽 | ≥ | 20MHz≤30mhz | dB | |||
| Rejection | 330 | MHz≥ | 20 | dBc | ||
| Rejection | 2200-2400 | MHz≥ | 50 | dB | ||
| Passband VSWR | / | / | 1.5 | |||
| Return loss | / | / | dB |

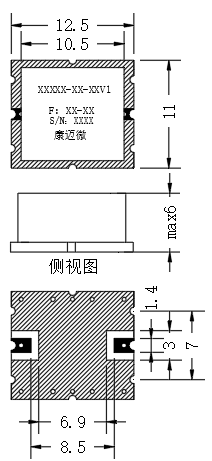

| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 5W Design assurance |
| Operation Temp. | -55~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
Send us your requirements — our engineers will respond within one working day.
