Passband1050~1300MHz, 880MHz≥50dB, 1500MHz≥50dB, Microstrip pad
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 1050 | ~ | 1300 | MHz |
| Passband IL | / | / | 3.0 | dB | ||
| Ripple | / | / | 1.0 | dB | ||
| Within band peak to peak value | / | / | 0.2 | dB | ||
| Rejection | 880 | MHz≥ | 50 | dB | ||
| Rejection | 1500 | MHz≥ | 50 | dB | ||
| Rejection | 1980-2120 | MHz≥ | 60 | dB | ||
| Passband VSWR | / | 驻波尽量好 | 1.5 |

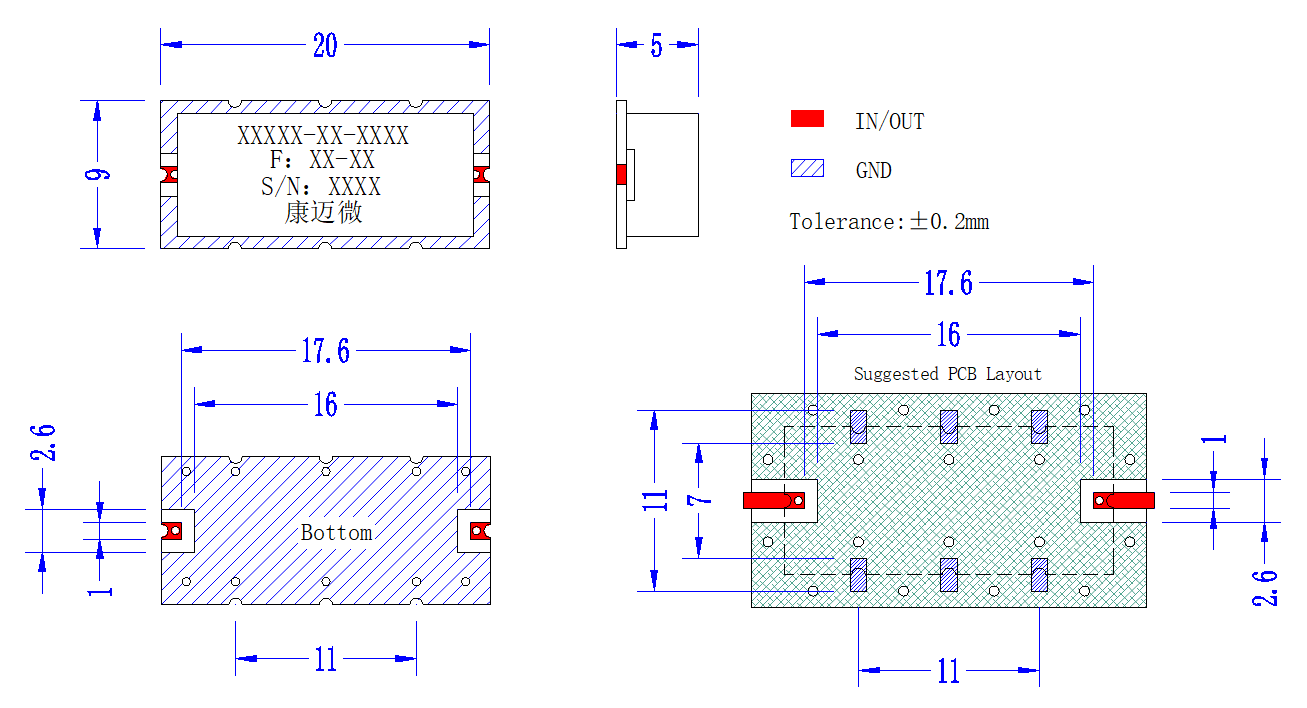

| Connector | Microstrip pad |
| Impedance | 50Ω |
| Power Capacity | 5W Design assurance |
| Delay ripple | ≤0.3ns带内的任意20MHz24h绝对时延变化≤1ns |
| Operation Temp. | -55~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 190 ℃ reflow soldering |
