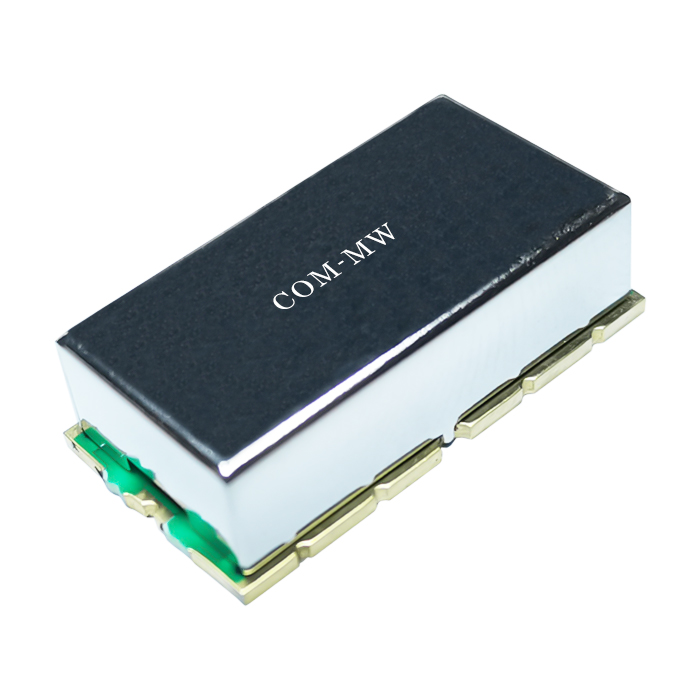

Passband194~204MHz, DC-150MHz≥dB, 100MHz≥70dB, Substitutes BPF-B199+
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

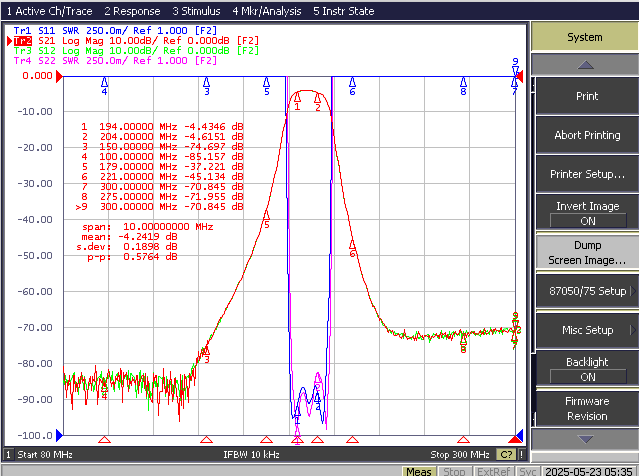

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | 194 | ~ | 204 | MHz | ||
| Passband IL | 4.2 | 5 | dB | |||
| Rejection | DC-150 | MHz≥ | 60 | dB | ||
| Rejection | 100 | MHz≥ | 70 | dB | ||
| Rejection | 179 | MHz≥ | 20 | 30 | dB | |
| Rejection | 221 | MHz≥ | 20 | 30 | dB | |
| Rejection | 300 | MHz≥ | 70 | dB | ||
| Rejection | 275-1200 | MHz≥ | 60 | dB | ||
| Passband VSWR | 1.2 | 1.5 | ||||
| Return loss | / | / | dB |

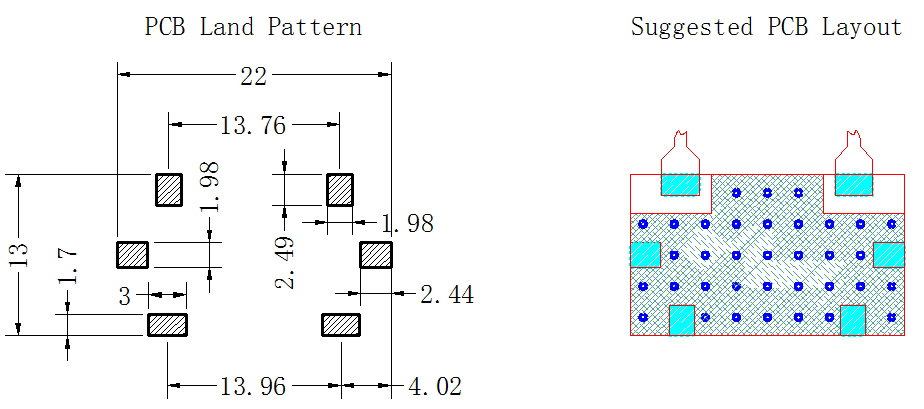

| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 0.5W Design assurance |
| Operation Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Substitutes BPF-B199+ |

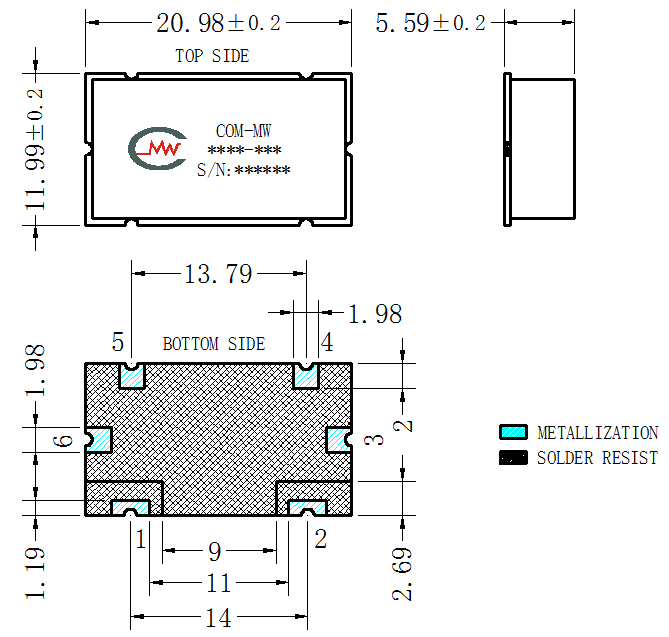

| I/O Port | 1 , 2 |
| GND | 3 ，4 ，5 ， 6 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 220 ℃ reflow soldering. |
