Passband110~170MHz, DC-90MHz≥40dBc, 220-480MHz≥40dBc
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 110 | ~ | 170 | MHz |
| Center loss | / | / | 3.0 | dB | ||
| 1dB BW | / | / | 60 | 70 | MHz | |
| Rejection | DC-90 | MHz≥ | 40 | dBc | ||
| Rejection | 220-480 | MHz≥ | 40 | dBc | ||
| Passband VSWR | / | / | 1.60 |

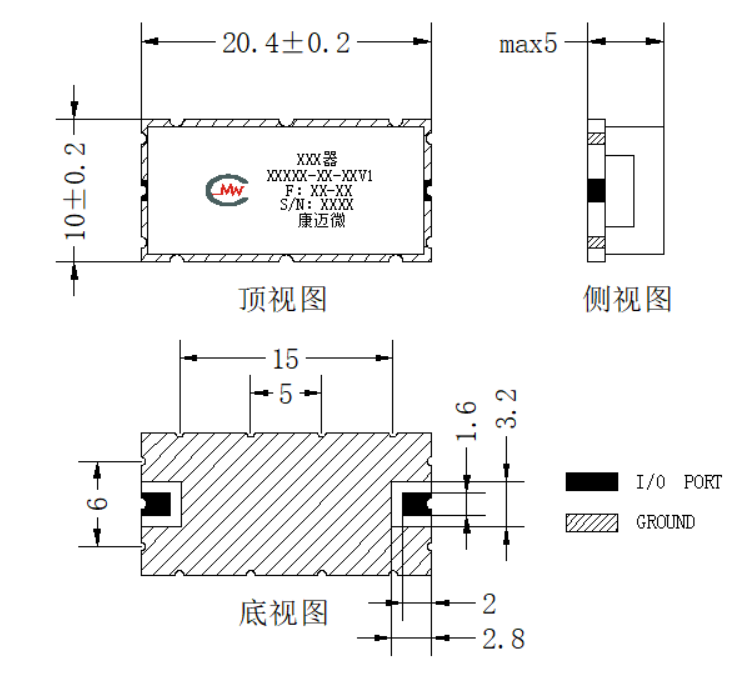

| Connector | SMD |
| Impedance | 50Ω |
| Power | 1W |
| Work Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| 1 | Clean the surface of the product, do not soak the product in a cleaning solution |
| 2 | 需高温贴片焊接请与我司确认。 |
