Passband9~10GHz, DC-8.2GHz≥45dB, 10.8-14GHz≥45dB
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

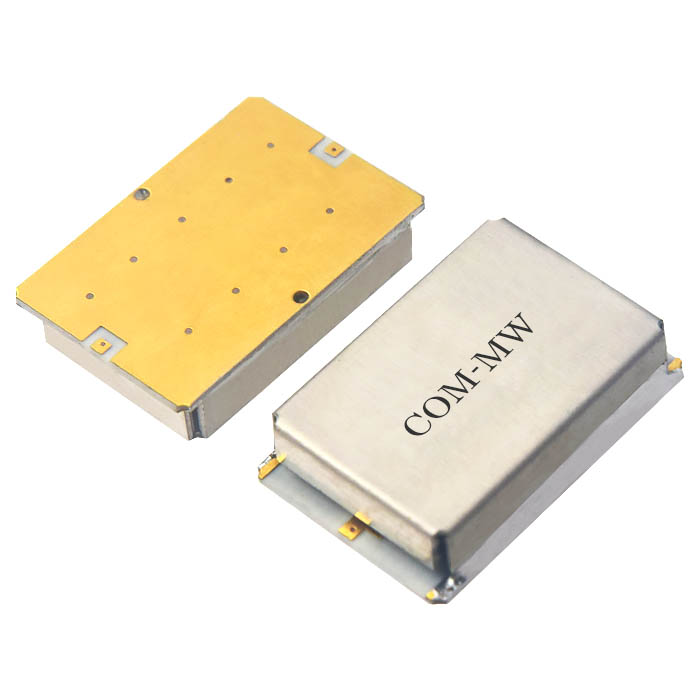

Small size.
High cost-effectiveness.
Support for SMD.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 9 | ~ | 10 | GHz |
| Passband IL | / | / | 6.5 | dB | ||
| Rejection | DC-8.2 | GHz≥ | 45 | dB | ||
| Rejection | 10.8-14 | GHz≥ | 45 | dB | ||
| Passband VSWR | / | / | 1.7 |

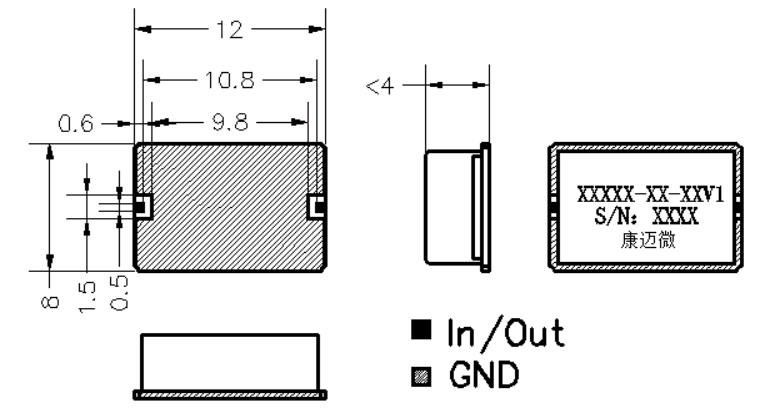

| Connector | Microstrip pad |
| Impedance | 50Ω |
| Power | 5W Design assurance |
| Work Temp. | -40~+70℃ Design assurance |
| 1 | No direction for input/output ports. |
| 2 | The product supports 260 ℃ reflow soldering. |

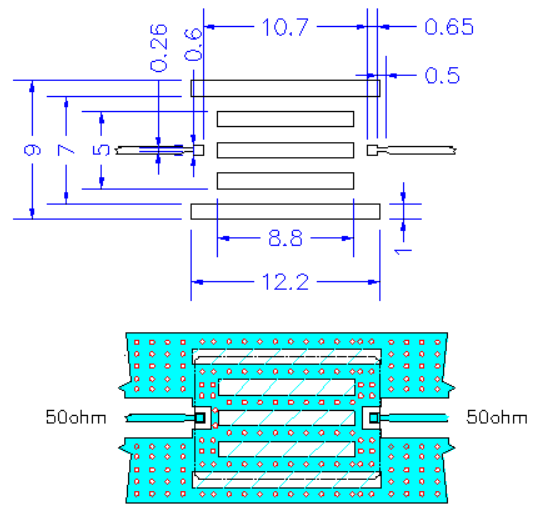

| 3 | The grounding of surface mounted filters is important. |
| 4 | Clean the surface of the product, do not soak the product in a cleaning solution. |
