Passband5.1~6.1GHz, DC-4.1GHz≥dBc, 7.1-11.2GHz≥dBc, Microstrip pad,
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Supports reflow soldering and gold wire bonding.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 5.1 | ~ | 6.1 | GHz |
| Passband IL | / | / | 2 | dB | ||
| Passband VSWR | / | / | 1.7 | |||
| Rejection | DC-4.1 | GHz≥ | 30 | dBc | ||
| Rejection | 7.1-11.2 | GHz≥ | 30 | dBc |
| Connector | Microstrip pad |
| Impedance | 50Ω |
| Surface | Immersion Gold |
| Power | 10W |
| Work Temp. | -55~+85℃ Design assurance |

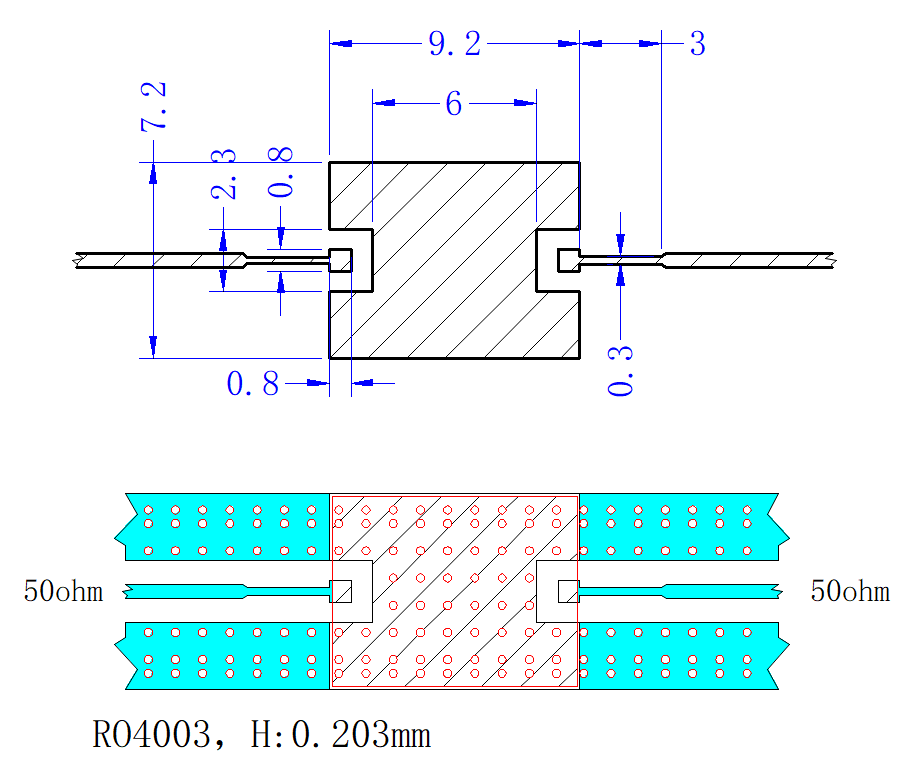

The grounding of surface mounted filters is important, as poor grounding can affect electrical performance.
The product supports 260 ° reflow soldering.
