Passband52~88MHz, DC-37.6MHz≥40dB, 102.4-500MHz≥40dB, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 52 | ~ | 88 | MHz |
| Center loss | / | / | 2 | dB | ||
| -3dB BW | / | / | 40 | MHz | ||
| Rejection | DC-37.6 | MHz≥ | 40 | dB | ||
| Rejection | 102.4-500 | MHz≥ | 40 | dB | ||
| Passband VSWR | / | / | 1.5 |
| Connector | Pin |
|---|---|
| Impedance | 50Ω |
| Power | 1W Design assurance |
| Relative humidity | 5%~95% Design assurance |
| Work Temp. | -40~+85℃ Design assurance |
| Quality Grade | Industrial grade |

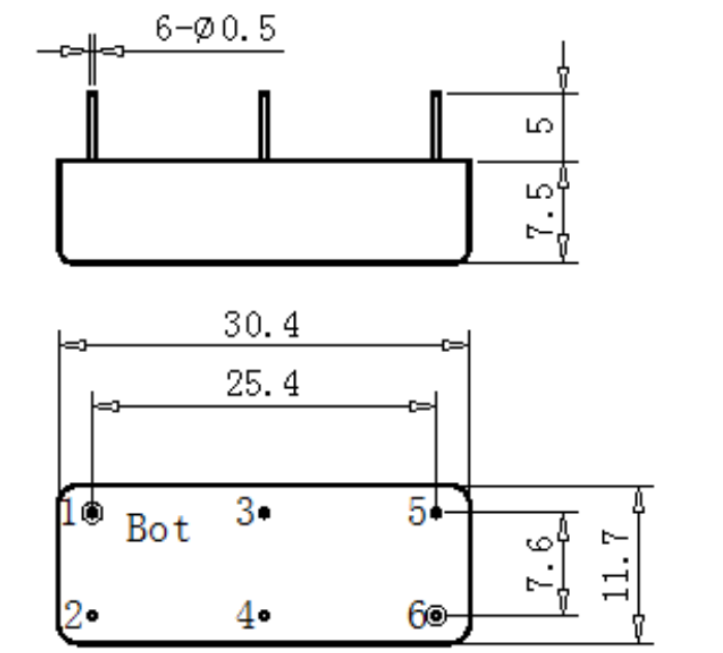

| I/O Port | 1，6 |
|---|---|
| GND | 2，3，4，5 |
| 1 | 可以短时间浸泡清洗，请及时烘干。 |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
