Passband52~88MHz, DC-37.6MHz≥40dB, 102.4-500MHz≥40dB, SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 52 | ~ | 88 | MHz |
| Center loss | / | / | 1 | ~ | 2 | dB |
| -1dB BW | / | / | 36 | ~ | 39 | MHz |
| Rejection | DC-37.6 | MHz≥ | 40 | dB | ||
| Rejection | 102.4-500 | MHz≥ | 40 | dB | ||
| Passband VSWR | / | / | 1.5 |

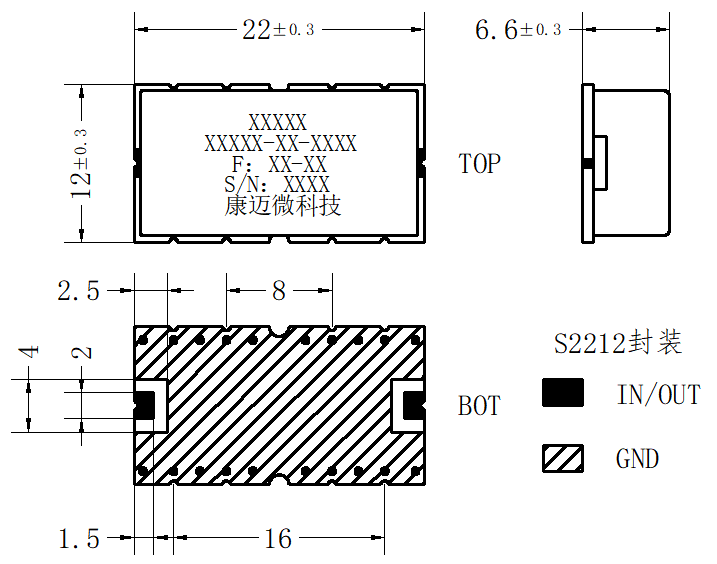

| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 2W Design assurance |
| Relative humidity | 5%~95% Design assurance |
| Operation Temp. | -55~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| 1 | Short term soaking and cleaning, please dry in a timely manner. |
| 2 | The product supports 190 ℃ reflow soldering |
| 3 | It is prohibited to install embedded filters on microwave multilayer boards with frequencies greater than 2000MHz after opening holes. |
