Lifting height1.43.1m, Bearing8Kg, 3/8 " Male Thread
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

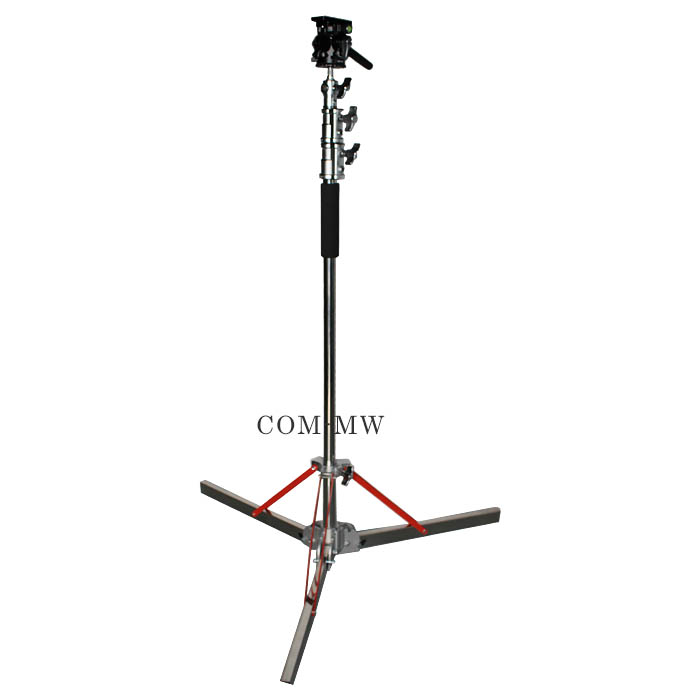

This metal tripod can be extended and retracted in both directions, with a height adjustable range of 1.4 meters to 3.1 meters. The main body is made of stainless steel tube and metal material. The antenna can be directly installed on the top gimbal of the tripod.

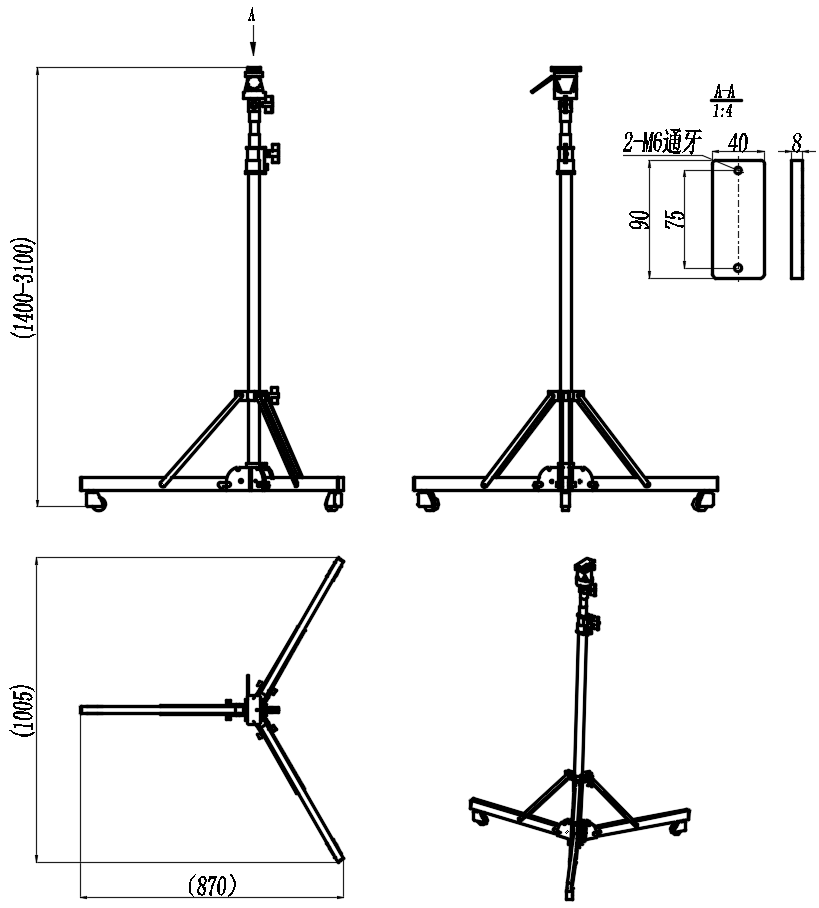

| Parameters | Min | Max | Units |
|---|---|---|---|
| Lifting height | 1.4 | 3.1 | m |
| Folding height | 1.33 | m | |
| Bearing | 8 | Kg |
| Connector | 3/8 " Male Thread |
| Outline size | 1005*870*3100mm |
| Estimated weight | 8.2Kg |
| Operation Temp. | -25~+75℃ Design assurance |
| Other | With gimbal, adjustable horizontally 360 degrees and pitch ± 60 degrees |
Avoid collisions during installation.
The support rod should be perpendicular to the ground to prevent antenna damage.
