Lifting height2m, 3/8 " Male Thread
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

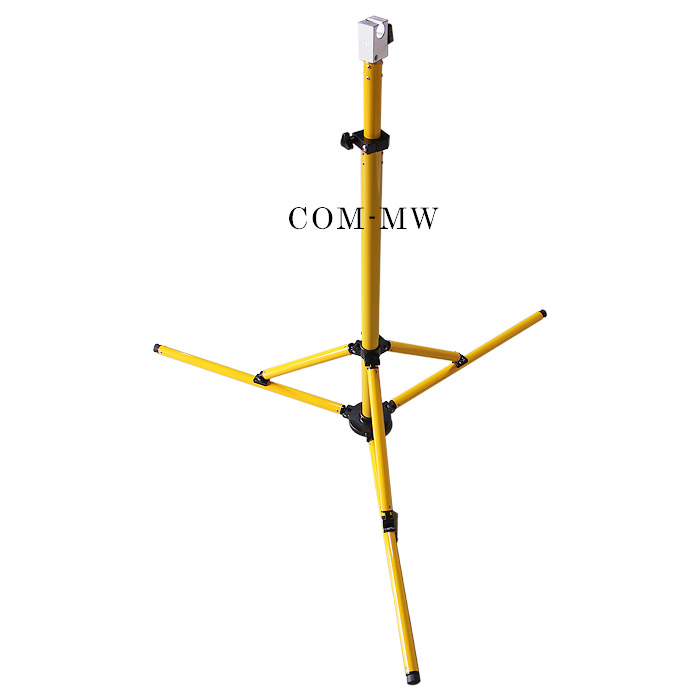

This non-metallic tripod can be bi-directional retractable, with a height adjustable range of 1.2 meters to 2 meters. The main body is made of epoxy glass fiber and PVC material to avoid electromagnetic wave reflection. The antenna can be directly installed onto the 3/8 "male thread on the top of the tripod, or customized structural components can be used to install the antenna. It is mainly used for field strength testing in shielded or dark rooms.
| Parameters | Min | Max | Units |
|---|---|---|---|
| Lifting height | 0.92 | 2 | m |
| Folding height | 0.92 | m | |
| Support rod straight diameter | 22 | mm |
| Connector | 3/8 " Male Thread |

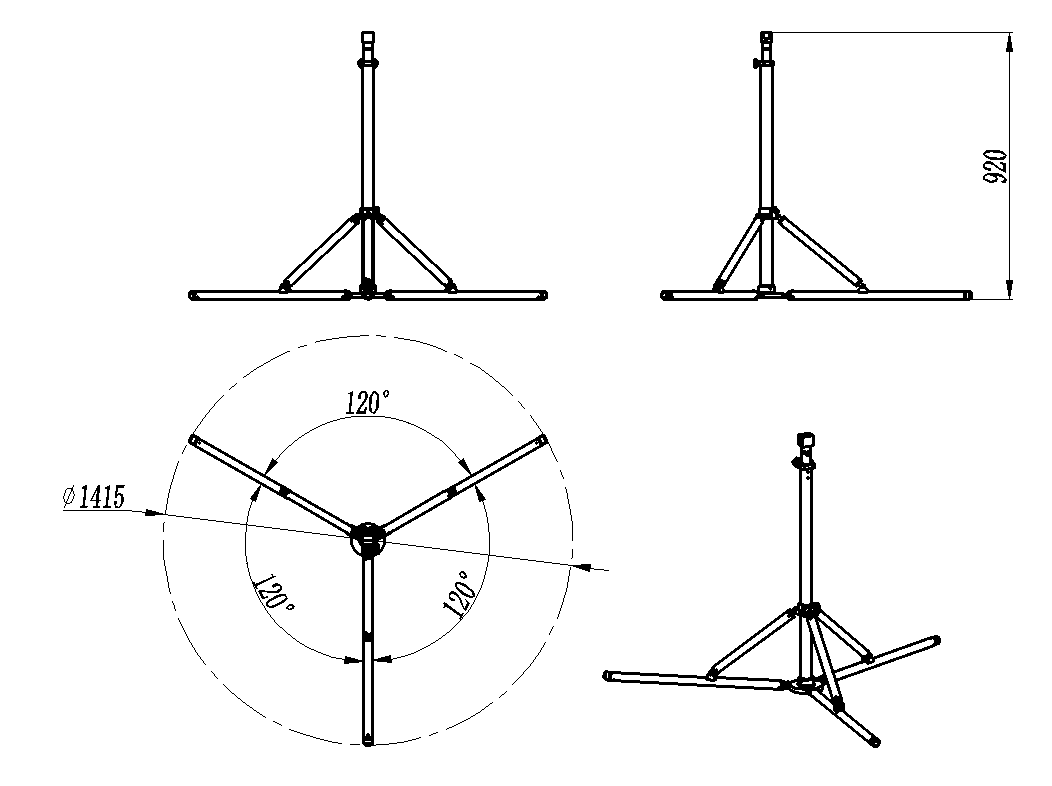

| Outline size | 180*180*920mm |
| Estimated weight | 2.7Kg |
| Estimate vertical load-bearing capacity | 15Kg |
| Material | Epoxy glass fiber |
| Operation Temp. | -25~+55℃ Design assurance |
| Other | Equipped with a metal clamp, the diameter of the clamping cylinder is 22mm, and the metal clamp is detachable |
Avoid collisions during installation.
The support rod should be perpendicular to the ground to prevent antenna damage.
