Lifting height11.8m, Bearing030Kg, 3/8 " Male Thread
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
此非金属三脚架可双向伸缩三脚架，主体采用环氧玻璃纤维和PVC材料，以避免电磁波反射。主要应用于屏蔽室或暗室中场强测试。
| Parameters | Min | Max | Units |
|---|---|---|---|
| Lifting height | 1 | 1.8 | m |
| Bearing | 0 | 30 | Kg |
| Connector | 3/8 " Male Thread |

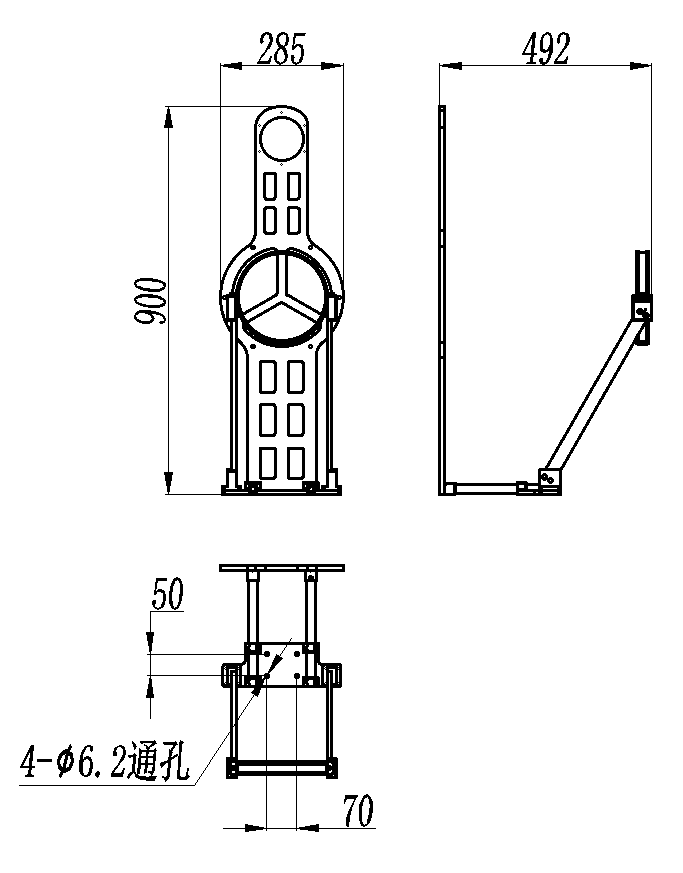

| 外形尺寸1 | 900*492*285mm |

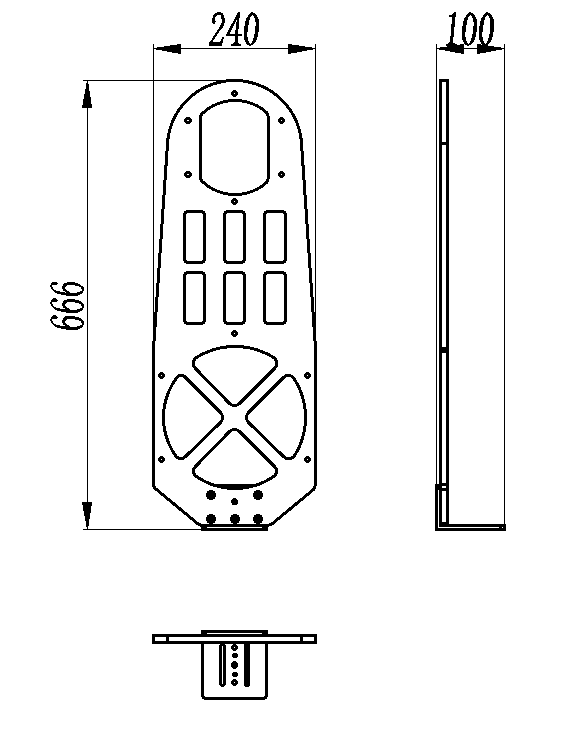

| 外形尺寸2 | 666*240*100mm |

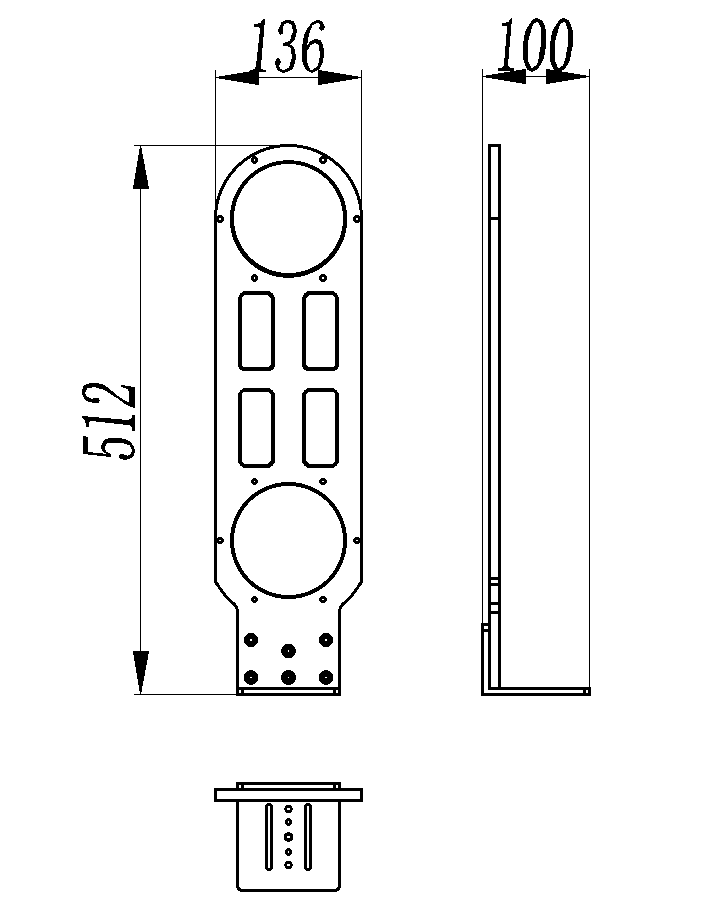

| 外形尺寸3 | 512*131*100mm |
| 估算重量1 | 3.2Kg |
| 估算重量2 | 1.7Kg |
| 估算重量3 | 0.8Kg |
| Operation Temp. | -25~+55℃ Design assurance |
Avoid collisions during installation.
The support rod should be perpendicular to the ground to prevent antenna damage.
