Lifting height0.65~2.29m, 中心承重15Kg, 3/8 " Male Thread
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

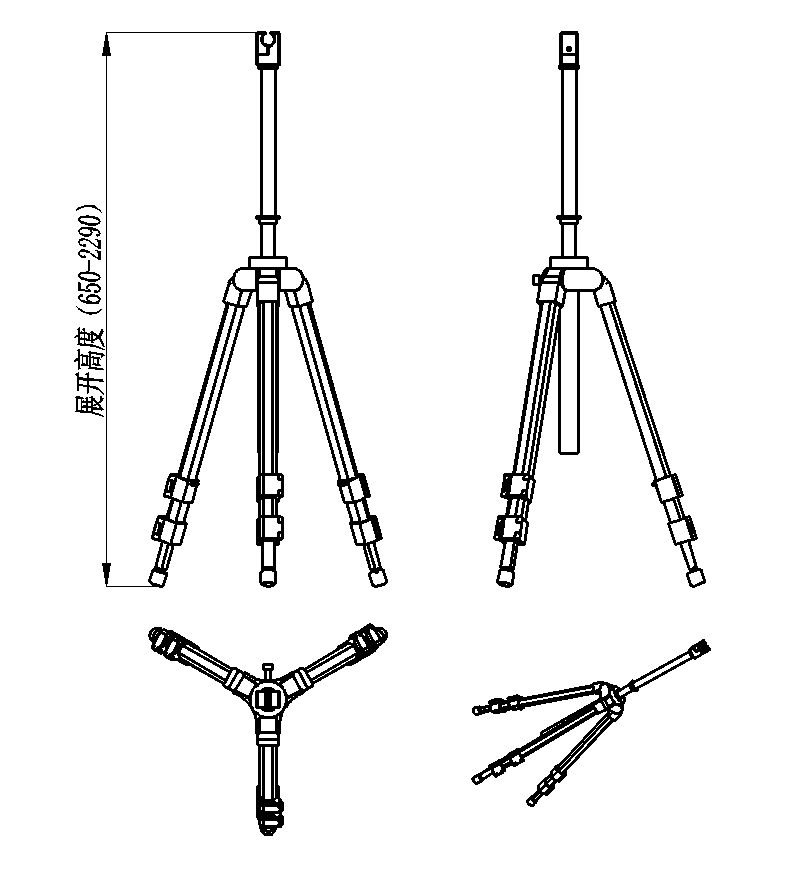

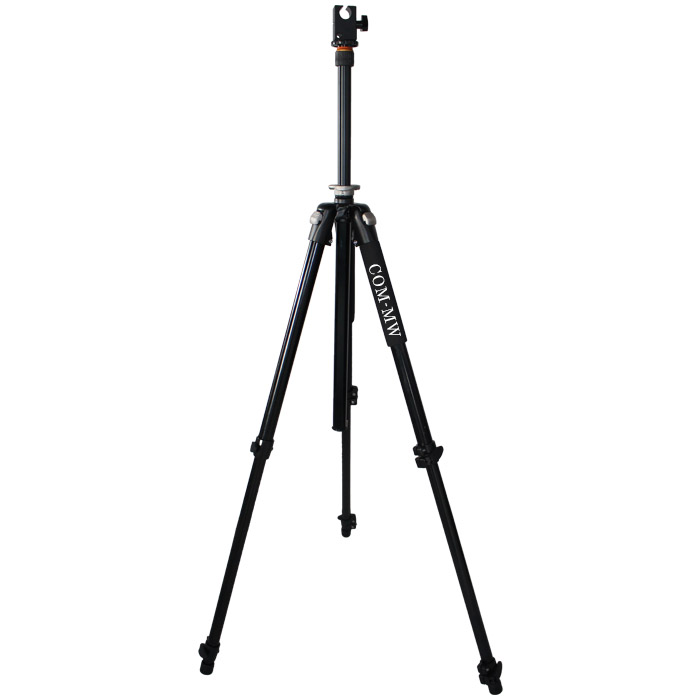

此款为金属三脚架，高度可调范围0.65米到2.29米，主体采用铝材，以避免电磁波反射。天线可以直接安装到三脚架顶部的 3/8"阳螺纹上，或者使用天线适配器安装架设天线。主要应用于普通环境测试。
| Parameters | Min | Max | Units |
|---|---|---|---|
| Lifting height | 0.65 | 2.29 | m |
| Folding height | 0.65 | m | |
| Bearing | 30 | Kg |

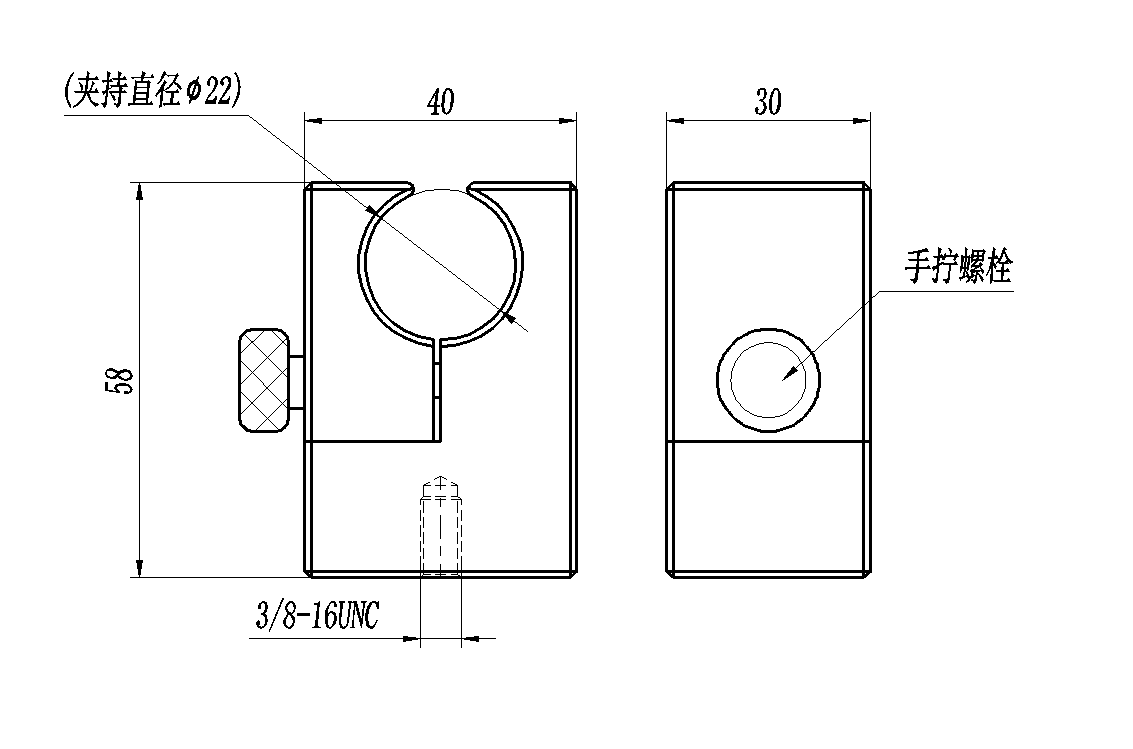

| Connector | 3/8阳螺纹抱夹 |
|---|---|
| Outline size | 650*140*140mm |
| Estimated weight | 2.8Kg |
| Material | Aluminum |
| Operation Temp. | -45~+45℃ Design assurance |
Avoid collisions during installation.
The support rod should be perpendicular to the ground to prevent antenna damage.
