Lifting height0.83~1.9m, Folding height0.86m,
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

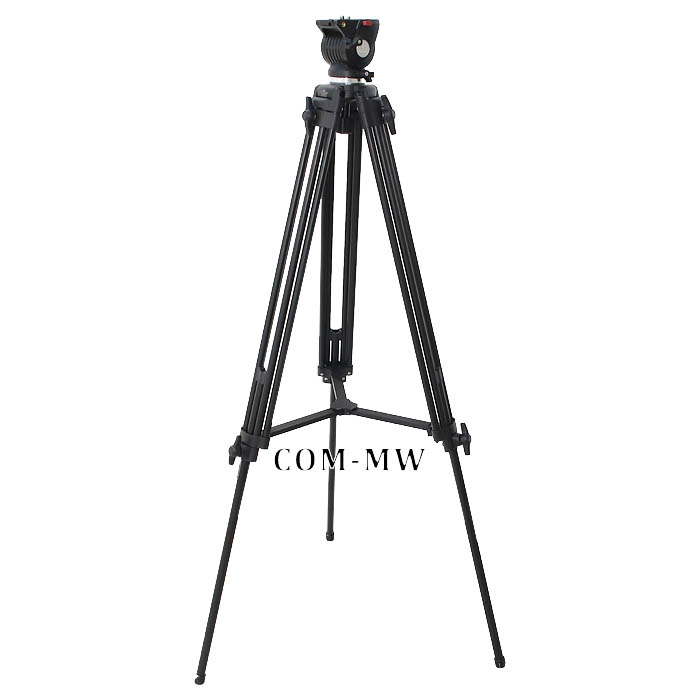

此金属三脚架收缩尺寸小，高度可调范围0.83米到1.9米，主体采用了铝合金和工程塑料。或者使用天线适配器安装架设天线。主要应用于室内外便携测试。天线可以直接安装到三脚架顶部的 1/4、3/8"阳螺纹或L板上，
| Parameters | Min | Max | Units |
|---|---|---|---|
| Lifting height | 0.83~ | 1.9 | m |
| Folding height | 0.86 | m | |
| Bearing | 5 | Kg |
| Connector | 1/4 ", 3/8" male thread |

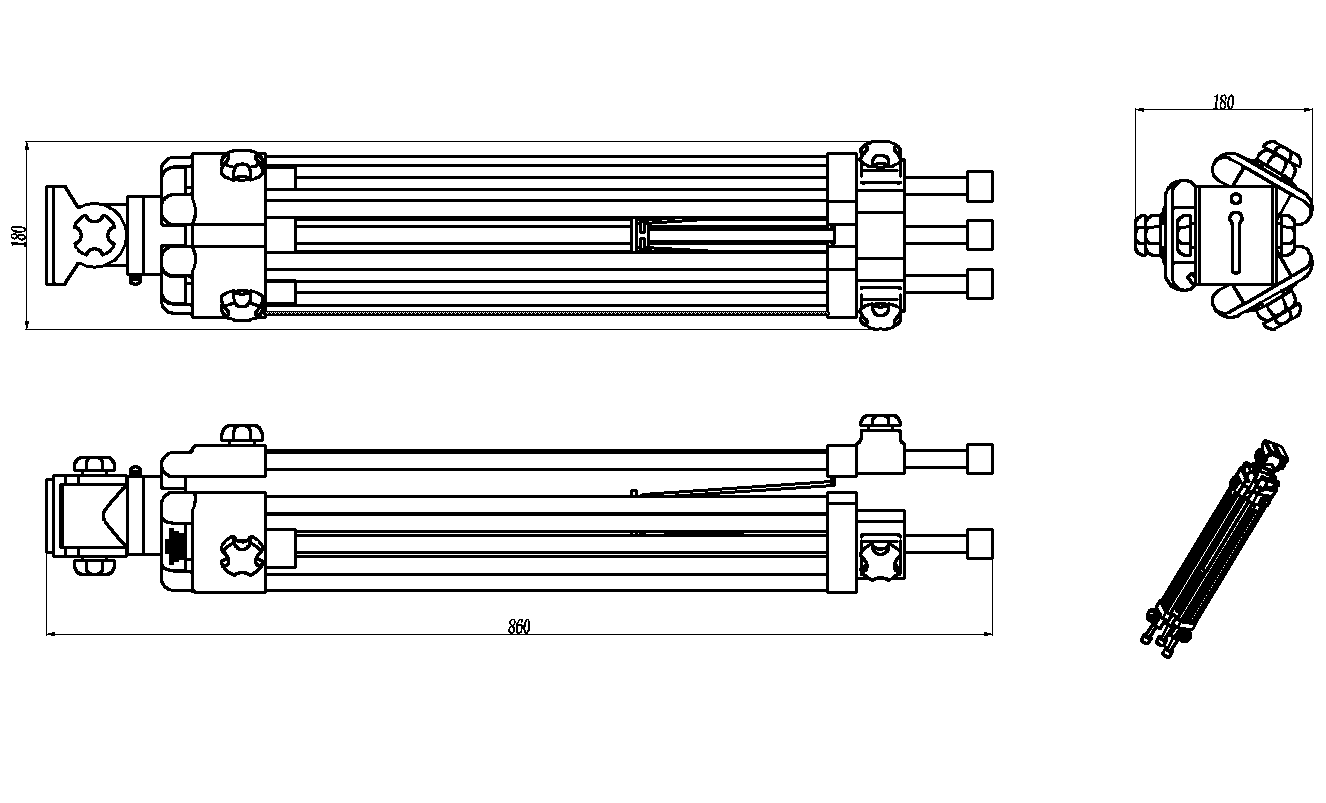

| Outline size | 180*180*860mm |
| Estimated weight | 3.5Kg |
| Material | Aluminum alloy |
| Surface | Black |
| Operation Temp. | -25~+55℃ Design assurance |
Avoid collisions during installation.
The support rod should be perpendicular to the ground to prevent antenna damage.
